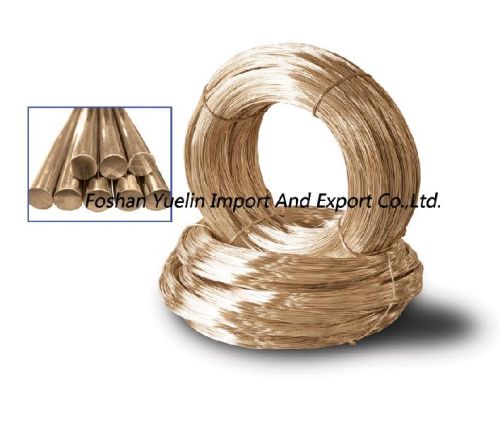

Round Copper\Brass Wire (H62, H63, H65, H70, H85, H90, T2)
圆铜/黄铜线（ H62 ， H63 ， H65 ， H70 ， H85 ， H90 ， T2 ）
| 级 | H62 ， H63 ， H65 ， H70 ， H85 ， H90 ， T2 | ||
| 规范 | 直径为0.40 〜 14.4毫米 | ||
| 铜（最小值） | H62 | 60.5%~63.5% | |
| H63 | 62.0%~65.0% | ||
| H65 | 63.5%~68.0% | ||
| H70 | 68.5%~72.0% | ||
| H85 | 84.0%~86.0% | ||
| H90 | 88.0%~91.0% | ||
| T2 | 99.90% | ||
| 极限强度 | H62 | 305 〜 850MPa | |
| H63 | 300 〜 840MPa | ||
| H65 | 285 〜相当于830Mpa | ||
| H70 | 275 〜 800MPa | ||
| H85 | 280 〜 570MPa | ||
| H90 | 240 〜 485MPa | ||
| T2 | 195 〜为380MPa | ||
| 颜色 | H62 | 金色的 | |
| H63 | 金色的 | ||
| H65 | 金色的 | ||
| H70 | 金色的 | ||
| H85 | 金色的 | ||
| H90 | 金色的 | ||
| T2 | 红 | ||
| 应用 | 针对弹簧，眼镜框，硬件/电子零件，装饰物，网络电缆 | ||
| Grade | H62, H63, H65, H70, H85, H90, T2 | ||
| Specification | diameter 0.40~14.4mm | ||
| Cu (Min) | H62 | 60.5%~63.5% | |
| H63 | 62.0%~65.0% | ||
| H65 | 63.5%~68.0% | ||
| H70 | 68.5%~72.0% | ||
| H85 | 84.0%~86.0% | ||
| H90 | 88.0%~91.0% | ||
| T2 | 99.90% | ||
| Ultimate Strength | H62 | 305~850MPa | |
| H63 | 300~840MPa | ||
| H65 | 285~830MPa | ||
| H70 | 275~800MPa | ||
| H85 | 280~570MPa | ||
| H90 | 240~485MPa | ||
| T2 | 195~380MPa | ||
| Color | H62 | Golden | |
| H63 | Golden | ||
| H65 | Golden | ||
| H70 | Golden | ||
| H85 | Golden | ||
| H90 | Golden | ||
| T2 | Red | ||
| Application | for springs, optical frames, hardware/ electric parts, ornaments, network cables | ||
