Video USB Digital Optical Microscope With 1.3 Mega Pixel Camera
视频USB数字光学显微镜的130万像素摄像头
议价
加入意向视频USB数字光学显微镜的130万像素摄像头
治疗原理：
BS-2040BD数码显微镜是一个经典的生物显微镜，显微镜功能巧妙的立场。
锐利的图像，舒适的操作和高分辨率摄像头，使您的工作变得愉快。 它可以
被广泛应用于生物，病理，细菌，组织学，免疫，药理学和遗传学领域。
它适用于医院，实验室，诊所，医学院校，形态及相关的研究中心。
优点：
1. 3.0百万像素的数码系统，高分辨率的实时显微图像，5.0MP，9.0MP摄像头是可选的;
2.采用高灵敏度的特点，适用于多种附件，如暗场，相衬，和
不久;
与无限光学系统3.卓越的光学性能;
4.支持多国语言（阿拉伯语，中国，英国，法国，Germen预，日本，波兰等）;
5.支持Windows Vista / Win 7的/在Win8 / Mac的操作系统。 该软件可以预览，拍摄照片和视频，做图像处理和测量;
6.滑动式冷凝器。
应用：
BS-2040BD数码双目显微镜是生物学，组织学，病理学领域的理想仪器
可广泛应用于医疗卫生机构，实验室，研究所，学术实验室。
高校。
规范
模型 | BS-2040BD | ||
光学系统 | 无限光学系统 | • | |
观察头 | 内置3Mega像素数码相机与ScopeImaage 9.0 imageProcess软件; 双目头，30°倾斜，瞳距48-75mm | • | |
目镜 | 视野目镜WF10 * / 18 | • | |
超宽提交目镜EW10 * / 20屈光度调节 | 〇 | ||
目的 | 不定式半计划半音阶目标 | 4* | • |
10* | • | ||
40* | • | ||
100* | • | ||
不定式半计划消色差物镜20 *，60 * | 〇 | ||
不定式计划消色差物镜4 *，10 *，20 *，40 *，60 *，100 * | 〇 | ||
消防水枪 | 四孔转换器 | • | |
阶段 | 双层机械平台140毫米*140毫米/75毫米*50毫米 | • | |
聚光器 | 滑动式定心冷凝器NA1.25 | • | |
聚焦 | 同轴粗微调，精科0.002毫米。 每转动粗笔划37.7毫米，每旋转精细行程0.2毫米。 移动范围20毫米 | • | |
照明 | LED照明，亮度可调。 | • | |
6V / 20W卤素灯，亮度可调 | 〇 | ||
可选配件 | 相衬套件 | 〇 | |
暗场附件 | 〇 | ||
尺寸和G.W. | 35厘米*35.5厘米*55.5厘米，13千克 | • | |
注：•标准配置。 •可选
通用产品信息
| 原始地点： | 中国 |
| 品牌： | BestScope |
| 认证： | ISO CE QS |
| 型号Numbe | BS-2040BD |
美国商务部项目
| 最小起订量： | 一 |
| 价格： | 面议 |
| 包装细节： | 根据客户的要求 |
| 交货时间： | 根据订购数量 |
| 付款条件： | T / T提前 |

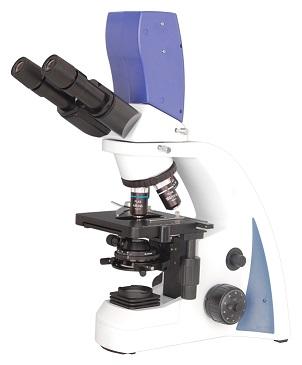

Video USB Digital Optical Microscope With 1.3 Mega Pixel Camera
TREATMENT THEORY :
BS-2040BD digital microscope is a classical biological microscope, the microscope features ingenious stand.
sharp image, comfortable operation and high-resolution camera, which make your work much enjoyable. It can
be widely used in biological, pathological, bacterial, histological, immune, pharmacological and genetic fields.
It is suitably used in hospitals, laboratories, clinics, medical academies, morphology and related research centers.
ADVANTAGES:
1. 3.0 Megapixels digital system, high-resolution real-time micro-image, 5.0MP, 9.0MP cameras are optional;
2. With high-sensitivity feature, suitable for wide range of accessories such as dark field , phase contrast, and
so on;
3. Excellent optical performance with infinity optical system;
4. Support Multi-language (Arabic, Chinese, English, French, Germen, Japanese, Polish and etc.) ;
5. Support Windows Vista / Win 7 / Win8 / Mac Operation System. The software can preview, take photos and video, do image processing and measurement;
6. Sliding-in Condenser.
APPLICATION:
BS-2040BD digital binocular microscope is an ideal instrument in biological, histological, pathological field and
can be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories.
colleges and universities.
Specification
Model | BS-2040BD | ||
Optical System | Infinite Optical System | • | |
Viewing Head | Built-in 3Mega Pixel digital camera with ScopeImaage 9.0 imageProcess Software; Binocular Head, Inclined at 30°, Interpupillary Distance 48-75mm | • | |
Eyepiece | Wide Field Eyepiece WF10*/ 18 | • | |
Extra wide filed eyepiece EW10*/ 20 with diopter adjustment | 〇 | ||
Objective | Infinitive Semi-plan chromatic objectives | 4* | • |
10* | • | ||
40* | • | ||
100* | • | ||
Infinitive Semi-plan Achromatic Objectives 20*, 60* | 〇 | ||
Infinitive Plan Achromatic Objectives 4*, 10*, 20*, 40*, 60*, 100* | 〇 | ||
Nosepiece | Quadruple Nosepiece | • | |
Stage | Double layers mechanical stage 140mm*140mm/ 75mm*50mm | • | |
Condenser | Sliding-in centerable condenser NA1.25 | • | |
Focusing | Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm. Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation. Moving Range 20mm | • | |
Illumination | LED Illumination, Brightness Adjustable. | • | |
6V/ 20W Halogen Lamp, Brightness Adjustable | 〇 | ||
Optional accessories | Phase Contrast Kit | 〇 | |
Dark Field Attachment | 〇 | ||
Dimension & G.W. | 35cm*35.5cm*55.5cm, 13kg | • | |
Note: • Standard Outfit. • Optional
Universal product information
| Place of Origin: | China |
| Brand Name: | BestScope |
| Certification: | ISO CE QS |
| Model Numbe | BS-2040BD |
The Commerce Item
| Minimum Order Quantity: | One |
| Price: | Negotiable |
| Packaging Details: | According to the Requirements of Clients |
| Delivery Time: | According to the order quantity |
| Payment Terms: | T/ T in advance |
