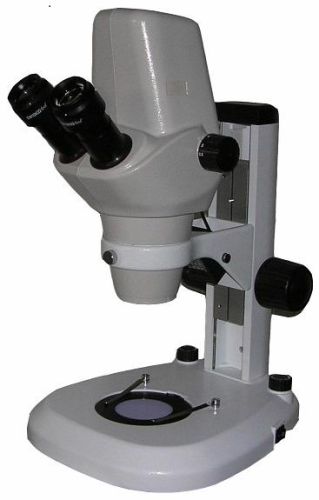

Digital Zoom Stereo microscope with Incident and Transmitted Illumination
数码变焦体视显微镜与入射光和透射照明
议价
加入意向介绍
立体显微镜也被称为低倍率和解剖显微镜。 在后期的立场BS-3040变倍体视显微镜提供直立，未逆转仍留在对焦整个变焦范围内的3D图像。 可选的目镜和辅助目标扩大放大倍率和工作距离。
BS-3040是一款非常受欢迎的变倍体视显微镜。 可选的冷光源和环光可以选择为这台显微镜。 您也可以选择三目加数码相机用适当的摄像机适配器。 综上所述，BS-3040提供了多种范围的放大倍率，工作距离，照片选项，配件和使用起来非常方便 - 难怪它是受欢迎！
技术指标
模型 | BS-3040BD | |
观察头 | 双目观察头，倾斜45° | • |
双目观察头，倾斜60° | • | |
三目观察头，倾斜45° | • | |
数码观察头，倾斜45°，320万像素（2048×1536） | • | |
目镜 | 超大视野目镜EW10 * / 22 | • |
WF15 * /Φ16 | • | |
WF20 * /Φ12 | • | |
WF30 * | • | |
变焦目标 | 0.8*-5* | • |
缩放比例 | 6.3: 1 | • |
工作距离 | 115毫米 | • |
瞳距 | 57-75mm | • |
辅助目标 | 0.5* | • |
0.7* | • | |
2* | • | |
舞台板 | 玻璃插入板，直径为100mm | • |
白色和黑色圆板 | • | |
照明 | 事故照明100V-240V / LED | • |
透射照明100V-240V / LED | • | |
附件 | 图片附件 | • |
视频附件 | • | |
包装及尺寸 | 36.5厘米*31厘米*52厘米，1个/箱，8.5千克 | • |
注：•标准配置。 •可选
特征
1.具有高品质的光学部件，提供清晰，鲜明的对比图像，并确保平面图像的景深大，易于人体工程学设计的疲劳。
2.采用LED灯为入射光和透射照明，提供均匀的照明和预期寿命可以达到6000小时。
3.完整的目镜，目标及配件，它是业界组装，检查和教学领域的理想仪器。
数码相机规格
图像传感器 | 1/2英寸3.2MP CMOS图像传感器（4：3） |
有效像素 | 2048*1536 |
像素大小 | 3.2μm*3.2μm |
快门类型 | 全球复位释放（GRR），电子滚动快门（ERS） |
图像格式帧率 | 9 FPS @ 2048 * 1536 |
灵敏度 | ）1.0 V /勒克斯秒（550nm的） |
动态范围 | 61分贝 |
SNR | 43分贝 |
工作温度 | 0°C〜60℃ |
图像输出 | USB2.0，DirectShow和吐温 |
操作系统 | 在Windows 2000 / XP / Vista的 |
软件 | ScopeImage 9.0 |
应用领域
立体声变焦显微镜是很有价值的各种应用，如电路板维修，电路板检测，表面贴装技术工作，电子检查，收集硬币，宝石及宝石设置，雕刻，以及修理和小零件的检查。
通用产品信息
| 原始地点： | 中国 |
| 品牌： | BestScope |
| 认证： | ISO CE QS |
| 型号Numbe | BS-3040BD |
美国商务部项目
| 最小起订量： | 一 |
| 价格： | 面议 |
| 包装细节： | 根据客户的要求 |
| 交货时间： | 根据订购数量 |
| 付款条件： | T / T提前 |
Introduction
Stereo microscopes are also known as low magnification and dissecting microscopes. BS-3040 Zoom Stereo Microscope on a post stand offers upright, un-reversed 3 D images that remain in focus throughout the zoom range. Optional eyepieces and auxiliary objectives expand magnification range and working distances.
BS-3040 is a very popular zoom stereo microscope. Optional cold light and ring light can be chosen for this microscope. You can also choose trinocular head to add digital camera with the appropriate camera adapter. In summary, BS-3040 gives many range of magnifications, working distances, photo options, accessories and is very convenient to use – no wonder it is popular!
Specifications
Model | BS-3040BD | |
Viewing Head | Binocular Viewing Head, Inclined at 45° | • |
Binocular Viewing Head, Inclined at 60° | • | |
Trinocular Viewing Head, Inclined at 45° | • | |
Digital Viewing Head, Inclined at 45°, 3.2MP (2048*1536) | • | |
Eyepiece | Extra wide field eyepiece EW10*/ 22 | • |
WF15*/ Φ16 | • | |
WF20*/ Φ12 | • | |
WF30* | • | |
Zoom Objective | 0.8*-5* | • |
Zoom Ratio | 6.3: 1 | • |
Working Distance | 115mm | • |
Interpupillary Distance | 57-75mm | • |
Auxiliary objective | 0.5* | • |
0.7* | • | |
2* | • | |
Stage Plate | Glass Insert Plate, Diameter 100mm | • |
White&Black round plate | • | |
Illumination | Incident Illumination 100V-240V/ LED | • |
Transmitted Illumination 100V-240V/ LED | • | |
Attachment | Photo Attachment | • |
Video Attachment | • | |
Package & Dimension | 36.5cm*31cm*52cm, 1pc/ carton, 8.5kg | • |
Note: • Standard Outfit. • Optional
Features
1. With high quality optical components, providing sharp and striking contrast image and ensure flat image at large depth of field, Ease the tiredness with ergonomic design.
2. With LED light for both incident and transmitted illumination, Providing even illumination and life expectancy can reach 6000 hours.
3. With Complete eyepieces, objectives and accessories, it is an ideal instrument for industry assembling, inspection and teaching field.
Digital Camera Specification
Image Sensor | 1/2 inch 3.2MP CMOS Image Sensor (4: 3) |
Active pixels | 2048*1536 |
Pixel size | 3.2μm * 3.2μm |
Shutter type | Global reset release (GRR) , electronic rolling shutter (ERS) |
Image Format Frame rate | 9 fps @ 2048*1536 |
Sensitivity | ) 1.0 V/ lux-sec (550nm) |
Dynamic range | 61dB |
SNR | 43dB |
Operating temperature | 0°C ~ 60°C |
Image Output | USB2.0, Directshow and Twain |
Operating System | Windows 2000/ XP/ Vista |
Software | ScopeImage 9.0 |
Application area
The stereo zoom microscope is of great value in a variety of applications such as circuit board repair, circuit board inspection, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, and repair and inspection of small parts.
Universal product information
| Place of Origin: | China |
| Brand Name: | BestScope |
| Certification: | ISO CE QS |
| Model Numbe | BS-3040BD |
The Commerce Item
| Minimum Order Quantity: | One |
| Price: | Negotiable |
| Packaging Details: | According to the Requirements of Clients |
| Delivery Time: | According to the order quantity |
| Payment Terms: | T/ T in advance |
