TongKun supply LED dimming driver with CE SAA UL CCC 3year warranty

TongKun supply LED dimming driver with CE SAA UL CCC 3year warranty

桐昆供应LED调光驱动器,带有CE SAA UL CCC3年保修

1000+
8.81 USD

加入意向

模型

TK-AD-012 V1.1

输出电压

35V

额定输出电流

2A

输出功率

70W

工作模式

CV + CC

效率

88%

调光功能

PWM调光

工作温度,湿度

-40℃~+105℃

存储温湿度

-20℃~+60℃

工作生涯

)30000小时

安全和电气电磁兼容

认证:CE, UL, PSE, SAA, TUV, CCC等多种认证。

备注

根据客户的实际使用来定制产品。


产品特点:

仅供参考销售价格

•采用恒currentdesign电路板,保证LED灯,寿命长,光效的稳定性。

•高效率,低消耗,lowstandby,节约能源和保护环境。 高功率factoryPH)0.95,效率)为88%,电流误差(5%。

•高稳定,无频闪,无水纹和改良剂的LED灯光效果,减少光功率。

•具有自动调光功能,二roadoutput。

•据与safetycertificate和电磁兼容性磁性的要求。

•过载,短路,开路,过压,过heatprotection功能。 也有自动温度控制输出protectionfunction。

•所有的产品过去的100%满载老化测试和fullseries保护功能测试的考验。

•我们特别订造,我们可以根据客户的实际使用来定制产品接受。


Model

TK-AD-012 V1.1

Output Voltage

35V

Rated Output Current

2A

Output Power

70W

Working Pattern

CV+CC

Efficiency

88%

Dimming Function

PWM dimming

Working Temperature And Humidity

-40℃~+105℃

Store Temperature And Humidity

-20℃~+60℃

Working Life

) 30000 hours

Safety And Electrical Magnetic Compatibility

Certification: CE,UL,PSE,SAA,TUV,CCC and other kinds of certification.

Remark

According to our client's actual use to customized products.


Products Feature:

Sales prices only for your reference

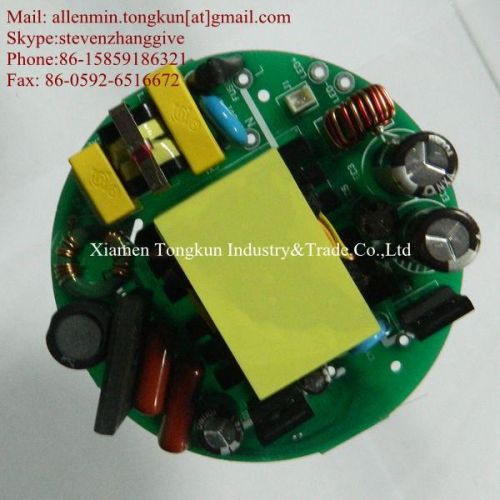

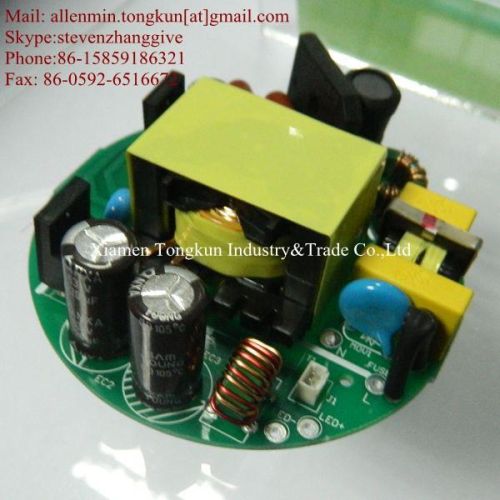

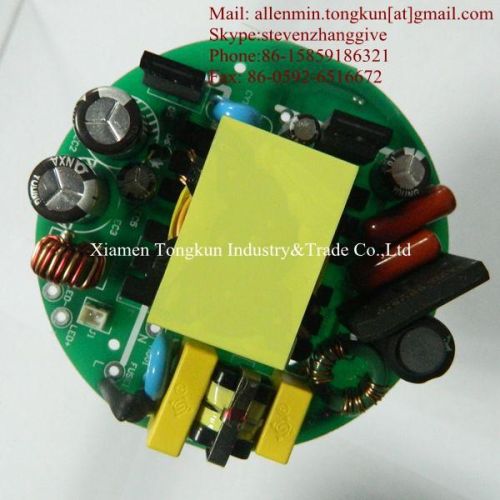

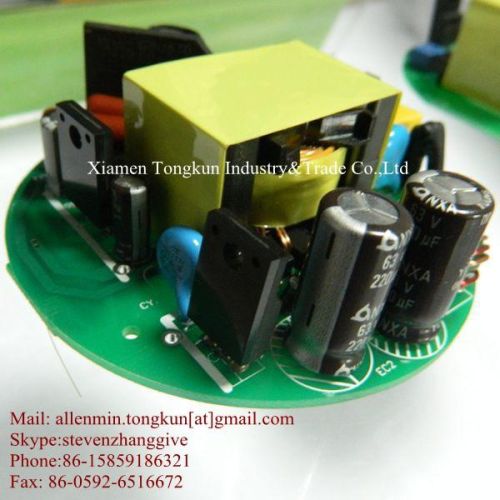

• The circuit board using constant currentdesign, guarantee the stability of LED lamp, long life and smooth effect.

• High efficiency, low consumption, lowstandby, saving energy and environment protection. High power factoryPH) 0.95, efficiency) 88%, the current error (5%.

• High stability, no stroboscopic , no waterlines and improver the LED lighting effect, reduce the luminous power.

• Have automatic dimming function, two roadoutput.

•According with the requirements of safetycertificate and electromagnetic magnetic compatibility.

• Over load, short-circuit, open-circuit, over voltage and over-heatprotection function. Also have automatic temperature control output protectionfunction.

• All products past the test of 100% full load aging test and fullseries protection function test.

• We accept special custom-made, we can according to our client's actual use to customized products.
