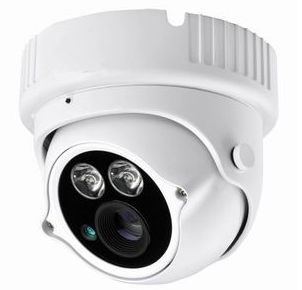

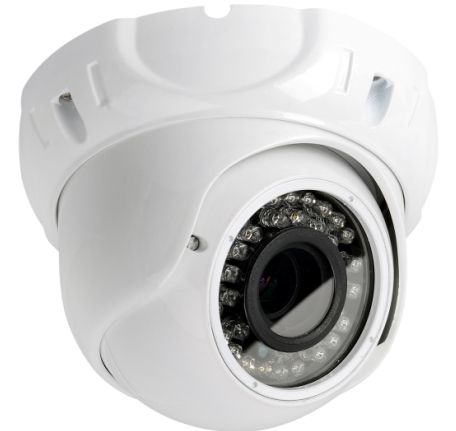

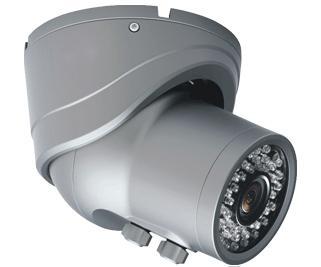

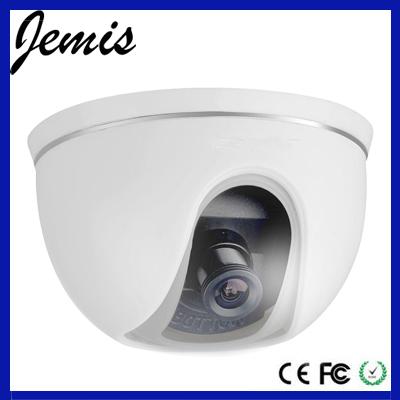

Dome CCTV Camera
半球监控摄像机
议价
加入意向介绍：
| 模型 | JM-D- S4811 | JM-D- S7011 | |
| 图像传感器 | 1/3索尼CCD | 1/3索尼CCD | |
| 有源像素 | PAL976（H）x582（V）中，NTSC976（H）x494（V）中，PAL500（H）×582（V）的NTSC510（H）x492（V）的 | ||
| 信号系统 | PAL / NTSC | PAL / NTSC | |
| 水平分辨率 | 480 TVL | 700TVL | |
| S / N比率 | ）48分贝 | ）48分贝 | |
| 快门速度 | 1/50（1/60）-1/100000（秒） | 1/50（1/60）-1/100000（秒） | |
| 视频输出 | 平1Vp-P，75欧姆，BNC | 平1Vp-P，75欧姆，BNC | |
| 红外光 | 36pec红外灯 | 36pec红外灯 | |
| 红外距离 | 25-30mm | 25-30mm | |
| 透镜 | 3.6 / 6 /8毫米镜头可选） | 3.6 / 6 /8毫米镜头可选） | |
| OSD菜单 | 没有 | 是 | |
| 曝光 | 快门 | FLK / AUTO / 1/501/2501/5001/1000。 1/20001/40001/50001/100001/100000 | |
| AGC | 低，中，高，关 | 低，中，高，关 | |
| DWDR | 开关 | 开关 | |
| 白平衡 | ATW1，ATW2，AWC-SET，抗，CRL，手册 | ATW1，ATW2，AWC-SET，抗，CRL，手册 | |
| BACK LIGHT | BLC，HLC，OFF | BLC，HLC，OFF | |
| 早晚 | 机械ICR D＆N，颜色为黑白 | ||
| DPC | 是 | 是 | |
| 特别 | CAM TITLE | 开关 | 开关 |
| 运动 | 开关 | 开关 | |
| 隐私 | 开关 | 开关 | |
| PARK.LINE | 开关 | 开关 | |
| 图像调整 | 借SHAD | 开关 | 开关 |
| 2DNR | 开关 | 开关 | |
| 镜 | 开关 | 开关 | |
| 对比 | 0-255 | 0-255 | |
| 锐度 | 0-31 | 0-31 | |
| 电源 | DC12V | DC12V | |
| 工作温度 | -10℃ ~ +50℃ | -10℃ ~ +50℃ | |
| 工作湿度 | 20~80% | 20~80% | |
Introduction:
| Model | JM-D-S4811 | JM-D-S7011 | |
| Image Sensor | 1/3 Sony CCD | 1/3 Sony CCD | |
| Active Pixel | PAL976 (H) x582 (V) ,NTSC976 (H) x494 (V) ,PAL500 (H) x 582 (V) NTSC510 (H) x492 (V) | ||
| Signal system | PAL/ NTSC | PAL/ NTSC | |
| Horizontal Resolution | 480 TVL | 700TVL | |
| S/ N Ratio | ) 48dB | ) 48dB | |
| Shutter speed | 1/50 (1/60) -1/100000 (Sec.) | 1/50 (1/60) -1/100000 (Sec.) | |
| Video Output | 1Vp-p, 75ohm, BNC | 1Vp-p, 75ohm, BNC | |
| Infrared Light | 36pec IR Leds | 36pec IR Leds | |
| Infrared distance | 25-30mm | 25-30mm | |
| Lens | 3.6/6/8mm lens optional) | 3.6/6/8mm lens optional) | |
| OSD MENU | NO | YES | |
| Exposure | Shutter | FLK/ AUTO/ 1/501/2501/5001/1000. 1/20001/40001/50001/100001/100000 | |
| AGC | LOW, MIDDLE, HIGH, OFF | LOW, MIDDLE, HIGH, OFF | |
| DWDR | ON, OFF | ON, OFF | |
| WHITE BAL | ATW1, ATW2, AWC-SET, ANTI, CRL, MANUAL | ATW1, ATW2, AWC-SET, ANTI, CRL, MANUAL | |
| BACK LIGHT | BLC, HLC, OFF | BLC, HLC, OFF | |
| DAY&NIGHT | Mechanical ICR D&N, Color to B&W | ||
| DPC | YES | YES | |
| SPECIAL | CAM TITLE | ON, OFF | ON, OFF |
| MOTION | ON, OFF | ON, OFF | |
| PRIVACY | ON, OFF | ON, OFF | |
| PARK.LINE | ON, OFF | ON, OFF | |
| IMAGE ADJ | LENDS SHAD | ON, OFF | ON, OFF |
| 2DNR | ON, OFF | ON, OFF | |
| MIRROR | ON, OFF | ON, OFF | |
| CONTRAST | 0-255 | 0-255 | |
| SHARPNESS | 0-31 | 0-31 | |
| Power Supply | DC12V | DC12V | |
| Operation Temperature | -10℃ ~ +50℃ | -10℃ ~ +50℃ | |
| Operation Humidity | 20~80% | 20~80% | |
