主要特点

▶V100NS has18倍光学变焦，特别适用于小型和中型会议室，教室等
▶它也可以提供在低照度环境下完美的图像质量，特别适用于照明总体情况。
▶最大分辨率可达到1920×1080，最大输出帧频率可以achieve60 / 50F / S，保证高清晰度，同时，也能满足画面的流畅性的需求。
▶的信号 - 噪声摄像机视频的直接影响到高清晰度视频会议电视终端的图像压缩编码效率。 基于运动估计的V100NS apply2D和三维NOSIE减少算法，采用了新一代噪声传感器，有效地降低噪音。
▶基于人眼模型具有层次感强特殊的iridix曝光动态控制算法。 采用业界最先进的CMOS传感器V100NS可以支持WDR（宽动态范围），协调的iridix处理，可以清晰捕捉在强光下明暗对比的环境中，如背光成像悉数到场。
▶红外遥控信号传输功能。 V100NS可以是能够接收除了它自己的专用的遥控信号，也可以接收来自用户的遥控器信号，该信号发送到视频会议终端的穿透式VISCA IN端口。

V100NS提供了DVI-I（HDMI，的YpbPr）接口，HDSDI（可选）。
产品类型

VHD-V100NS
1080/60 / 59.94 / 50/30 / 29.97 / 25，1080i的/ 60 / 59.94 / 50，720P / 60 / 59.94 / 50/30 / 29.97 / 25

产品规格

视频格式的1080p / 60 / 59.94 / 50/30 / 29.97 / 25，1080i的/ 60 / 59.94 / 50。
720p/ 60/59.94/50/30/29.97/25
视频输出接口DVI-I（HDMI，的YPbPr），HD-SDI（可选）
传感器类型CMOS，1/3英寸
传感器像素2.74million
镜头焦距18倍，f4.7mm-84.6毫米，F1.8-F2.8
对焦方式手动/自动
电子快门1 / 25S-1 / 10000S
白平衡自动，室内，室外，手动，一clieck
背光补偿支持
信噪比≥55dB
水平场55.2°〜3.2°
垂直视角42.1°〜2.4°
水平旋转范围+ 170°
垂直转动范围-30°〜+ 90°

卧式旋转速度range1.7°〜100°/秒
立式转速范围1.7°〜69.9°/秒
反演支持
预置位128
Perset定位精度0.1°
控制接口类型8core微型DIN
协议类型VISCA，PELCO-D，PELCO-P
WDR动态范围≥100dB
电源适配器DC12V / 2.0A
功耗18W
大小240毫米x144mm x160毫米
颜色银色和黑色
重量2.5kg
工作温度-5〜50℃
储存温度-20〜60℃

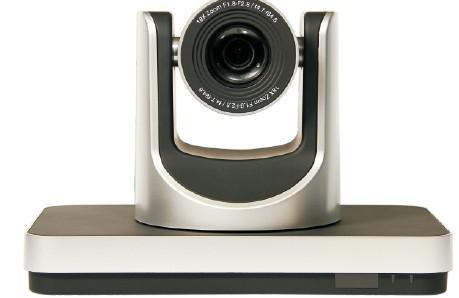

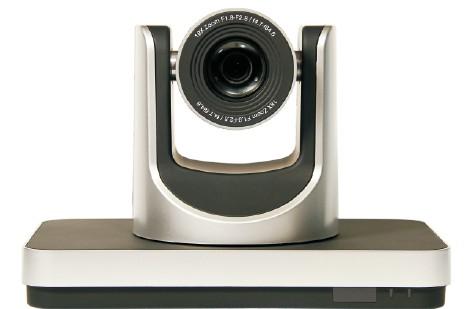

Main Features

▶V100NS has18 x optical zoom, especially suitable for small and medium-sized conference room, classroom and etc
▶It also can provide perfect image quality in low illumination environment, especially suitable for lighting general situation.
▶The maximum resolution can reach 1920*1080, max output frame frequency can achieve60/50f/ s, guarantee high definition, at the same time, also can meet the demand of the fluency of the picture.
▶The signal-to-noise of the camera video directly affect the image compression code efficiency of the high definition video conference television terminal. The V100NS apply2D and 3D nosie reduction algorithm based on motion estimation, using a new generation of noise sensors, effectively reduce the noise.
▶Special IRIDIX exposure dynamic control algorithm based on the human eye model with strong sense of hierarchy. V100NS using the industry's most advanced CMOS sensor which can support WDR (wide dynamic range) ,coordinate IRIDIX processing, can clearly capture imaging all the scene under the strong light and dark contrast of the environment, such as the backlight.
▶Infrared remote control signal transmission feature. V100NS can be able to receive except its own dedicated remote control signal, also can receive the remote control signal from the user, send the signal to the video conference terminal throuth the VISCA IN port.

V100NS provide DVI-I (HDMI, YpbPr) interface, HDSDI (optional) .
Product Types

VHD-V100NS
1080p/ 60/59.94/50/30/29.97/25, 1080i/ 60/59.94/50, 720p/ 60/59.94/50/30/29.97/25

Product Specification

Video format 1080p/ 60/59.94/50/30/29.97/25, 1080i/ 60/59.94/50.
720p/ 60/59.94/50/30/29.97/25
Video output port DVI-I (HDMI, YPbPr) ,HD-SDI (optional)
Sensor type CMOS, 1/3inch
Sensor pixel 2.74million
Lens focal length 18x, f4.7mm-84.6mm, F1.8-F2.8
Focusing mode Manual/ Auto
Electronic shutter 1/25s-1/10000s
White balance Auto, indoor, outdoor, manual, one-clieck
Backlight compensation Support
Signal noise ratio ≥55dB
Horizontal field 55.2°~ 3.2°
vertical viewing angle 42.1°~ 2.4°
Horizontal rotation range +170°
Vertical rotation range -30°~ +90°

Horizontal rotational speed range1.7°~100°/ s
Vertical rotational speed range 1.7°~69.9°/ s
Inversion support
Preset positions 128
Perset position accuracy 0.1°
Control interface type 8core Mini DIN
Protocol type VISCA, Pelco-D, Pelco-P
WDR dynamic range ≥100dB
Power adapter DC12V/ 2.0A
Power dissipation 18W
size 240mm x144mm x 160mm
colour Silver & black
weight 2.5kg
Working temperature -5~50℃
Store temperature -20~60℃
