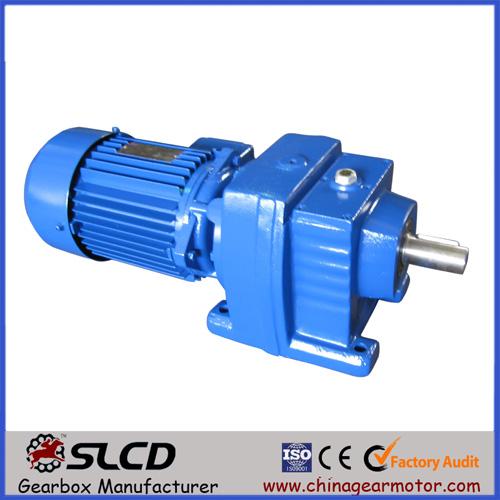

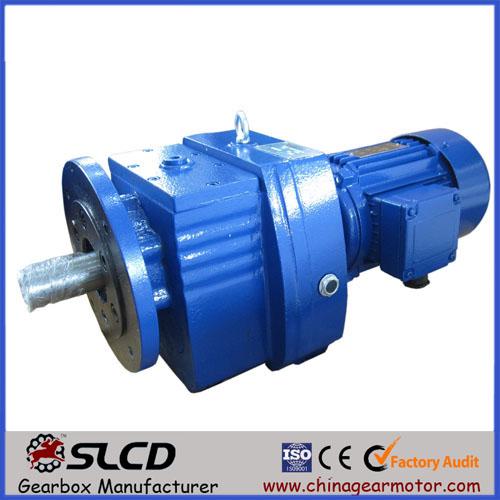

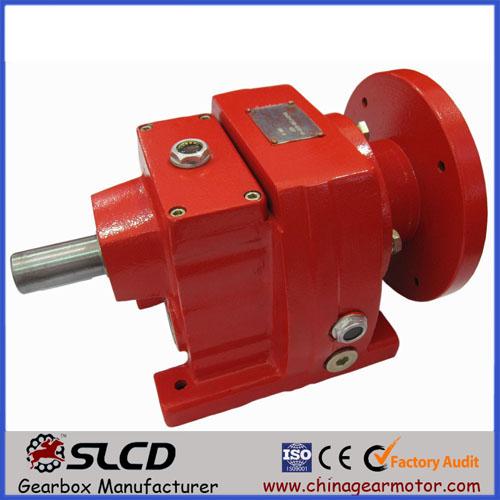

R series helical gearbox
R系列斜齿轮箱
议价
加入意向快速详细信息
的传动装置：斜
输出扭矩：高达28000Nm
额定功率：0.18〜160千瓦
输入速度：（2000rpm的
输出速度：0.1〜560rpm
产地：浙江，中国（大陆）
型号：RC37〜RC187
品牌名称：Flying骑士
比：1.3〜280
颜色：RAL5010蓝色或其它
输入形式：IEC法兰，带电机直接连接，实心轴
输出方式：实心轴
安装位置：水平（脚踏式）或立式（法兰安装
证书电机：CE，UL，CSA
材质：铸铁
质量管理：ISO9001：2008
包装及送货
| 包装细节： | 小尺寸：标准出口包装（纸箱和托盘）; 大尺寸：熏蒸木材箱和非木质包装纸箱 |
|---|---|
| 交货详细信息： | 15〜30个工作日内，按量 |
技术指标
在R系列斜齿轮减速电机减速机25年的经验CE，ISO9001质量-Credible在 - 交货时间
1. RC系列工业传动减速电机本身设计合理，结构紧凑，尺寸比X或B系列摆线针轮减速电机同时允许的转矩小。
2，振动小，噪音低，具有较高的传动效率。
3.产品已主要用于化工机械，水泥搅拌机械，印刷包装机械，矿山，电力传动机械，冶金等。
一般技术数据
| 外壳材料 | HT250高强度铸铁 |
| 房屋硬度 | HBS190-240 |
| 齿轮材料 | 20CrMnTi钢合金结构钢 |
| 齿轮表面硬度 | HRC58°〜62° |
| 齿轮心部硬度 | HRC33〜40 |
| 输入/输出轴材料 | 的42CrMo合金结构钢 |
| 输入/输出轴的硬度 | HRC25〜30 |
| 齿轮加工精度 | 精密磨削，6〜5级 |
| 润滑油 | GB L-CKC220-460，壳牌Omala220-460 |
| 热处理 | 回火，cementiting，淬火等。 |
| 效率 | 94％〜96％（取决于传输阶段） |
| 噪声（MAX） | 60〜68分贝 |
| 温度。 上升（MAX） | 40°C |
| 温度。 上涨（石油）（MAX） | 50°C |
| 振动 | ≤20µm |
| 反弹 | ≤20Arcmin |
| 轴承品牌 | 中国顶级品牌HRB，LYC，ZWZ或其他品牌的要求，NSK ... |
| 油封品牌 | NAK-台湾或其他品牌的要求 |
RCseries reducerTechnical数据
| 模型 | 轴径。 | 中心高 | 输出法兰直径。 | 功率 | 比 | 允许的转矩 | 重量 |
| 固体（毫米） | （毫米） | （毫米） | （KW） | （NM） | （KGS） | ||
| RC37 | 25k6 | 90h13 | 120/160 | 0.12~0.75 | 5~136 | 150 | 10 |
| RC47 | 30k6 | 115h13 | 160/200 | 0.25~2.2 | 5~173 | 300 | 15 |
| RC57 | 35k6 | 115h13 | 200/250 | 1.18~5.5 | 5~173 | 400 | 21 |
| RC67 | 35k6 | 130h13 | 200/250 | 0.37~7.5 | 5~170 | 500 | 27 |
| RC77 | 40k6 | 140h13 | 250/300 | 0.55~11 | 5~192 | 750 | 35 |
| RC87 | 50k6 | 180h13 | 300/350 | 0.75~18.5 | 5~192 | 1250 | 65 |
| RC97 | 60m6 | 225h13 | 350/450 | 1.5~30 | 5~197 | 2400 | 120 |
| RC107 | 70m6 | 250h13 | 350/450 | 2.2~45 | 5~197 | 3600 | 165 |
| RC137 | 90m6 | 315h13 | 450/550 | 4~55 | 5~197 | 6600 | 255 |
| RC147 | 110m6 | 355h13 | 450/550 | 7.5~90 | 5~195 | 10700 | 370 |
| RC167 | 120m6 | 425h13 | 550/660 | 11~132 | 8~186 | 14800 | 700 |
| RC187 | 160m6 | 510h13 | 660/770 | 15~160 | 8~186 | 28000 | 1500 |
| 备注：无油和电机，轴和法兰输入的重量增加10％。 | |||||||
型号exression
RCseries安装方向示意图
组合系统
我公司网站：www.cn-flying.com
欢迎您给我们查询！
Quick Details
Gearing Arrangement: Helical
Output Torque: up to 28000Nm
Rated Power: 0.18~160kw
Input Speed: (2000rpm
Output Speed: 0.1~560rpm
Place of Origin: Zhejiang, China (Mainland)
Model Number: RC37~RC187
Brand Name: Flying Knight
Ratio: 1.3~280
Color: RAL5010 blue or other
Input Form: IEC flange, directly connected with motor, solid shaft
Output Form: Solid shaft
Mounting Position: Horizontal (foot mounted) or Vertical (flange mounted
Certificate for Motor: CE, UL, CSA
Material: Cast iron
Quality Control System: ISO9001: 2008
Packaging & Delivery
| Packaging Details: | Small size: standard export packing (carton and pallet) ; Big size: fumigated wood carton or non-wood packing material carton |
|---|---|
| Delivery Detail: | 15~30 workdays according to quantity |
Specifications
25 years experience in R series helical gear electric motor speed reducerCE, ISO9001 -Credible quality -Delivery in time
1. RC series industrial transmission gearmotor own rational design, compact construction, smaller size than X or B series cycloidal gearmotor at the same permitted torque.
2. Little vibration and low noise, with high transmission efficiency.
3. The products have been mainly used in chemical machinery, cement agitator machinery, printing and packaging machinery, mine and power transmission machinery, metallurgy etc.
General Technical data
| Housing material | HT250 high-strength cast iron |
| Housing hardness | HBS190-240 |
| Gear material | 20CrMnTi alloy steel |
| Surface hardness of gears | HRC58°~62 ° |
| Gear core hardness | HRC33~40 |
| Input / Output shaft material | 42CrMo alloy steel |
| Input / Output shaft hardness | HRC25~30 |
| Machining precision of gears | accurate grinding, 6~5 Grade |
| Lubricating oil | GB L-CKC220-460, Shell Omala220-460 |
| Heat treatment | tempering, cementiting, quenching, etc. |
| Efficiency | 94%~96% (depends on the transmission stage) |
| Noise (MAX) | 60~68dB |
| Temp. rise (MAX) | 40°C |
| Temp. rise (Oil) (MAX) | 50°C |
| Vibration | ≤20µm |
| Backlash | ≤20Arcmin |
| Brand of bearings | China Top brand HRB, LYC, ZWZ or other brands requested, NSK... |
| Brand of oil seal | NAK- Taiwan or other brands requested |
RCseries reducerTechnical data
| Model | Shaft Dia. | Center Height | Output Flange Dia. | Power | Ratio | Permitted Torque | Weight |
| Solid (mm) | (mm) | (mm) | (kw) | (Nm) | (KGS) | ||
| RC37 | 25k6 | 90h13 | 120/160 | 0.12~0.75 | 5~136 | 150 | 10 |
| RC47 | 30k6 | 115h13 | 160/200 | 0.25~2.2 | 5~173 | 300 | 15 |
| RC57 | 35k6 | 115h13 | 200/250 | 1.18~5.5 | 5~173 | 400 | 21 |
| RC67 | 35k6 | 130h13 | 200/250 | 0.37~7.5 | 5~170 | 500 | 27 |
| RC77 | 40k6 | 140h13 | 250/300 | 0.55~11 | 5~192 | 750 | 35 |
| RC87 | 50k6 | 180h13 | 300/350 | 0.75~18.5 | 5~192 | 1250 | 65 |
| RC97 | 60m6 | 225h13 | 350/450 | 1.5~30 | 5~197 | 2400 | 120 |
| RC107 | 70m6 | 250h13 | 350/450 | 2.2~45 | 5~197 | 3600 | 165 |
| RC137 | 90m6 | 315h13 | 450/550 | 4~55 | 5~197 | 6600 | 255 |
| RC147 | 110m6 | 355h13 | 450/550 | 7.5~90 | 5~195 | 10700 | 370 |
| RC167 | 120m6 | 425h13 | 550/660 | 11~132 | 8~186 | 14800 | 700 |
| RC187 | 160m6 | 510h13 | 660/770 | 15~160 | 8~186 | 28000 | 1500 |
| Remark: the weight without oil and motor, shaft and flange input add 10%. | |||||||
Model exression
RCseries installation direction diagram
Combined system
