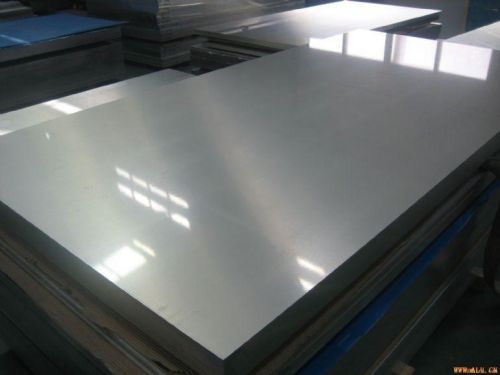

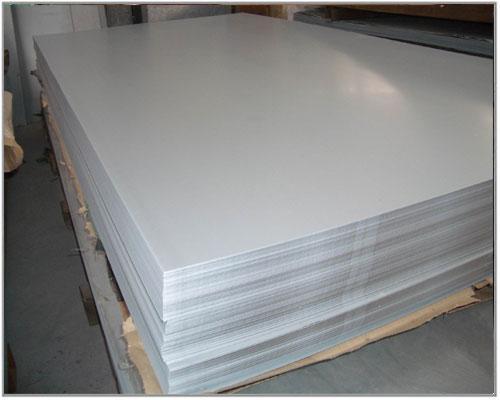

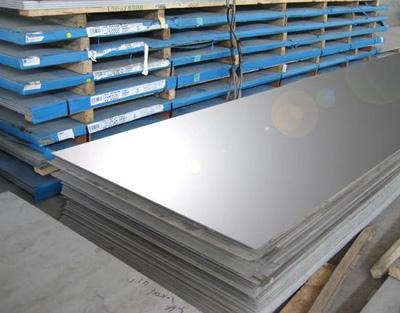

galvanized steel sheet
镀锌钢板
镀锌钢板
镀锌钢板锌板GI钢卷，镀锌，镀锌钢板，SGCC，DX51D，ASTMA653，Z120，Z180，G30，G60，G90
材质品牌：
国家电网公司，DX51D，ASTMA653，商业品质，CS型，形成锁型，S250 ，S280GD，S350GD，G550，SGC400，SGC440，S250GD，S350GD，G550，SGH340，SGH440。
HDGI制造
厚度0.15-5.0MM，宽度，91492510001219122012501500，镀锌钢卷，HDGI厚：0.15〜5.0毫米
参考标准：JIS G3302-1998，EN10142-2000，GB / T2518-2004，ASTM A653M
锌层：Z60-Z275 ，G30-G90，普通锌花，无锌花或小锌花
线圈直径：ID508毫米610毫米
HDGI机械规格：
JIS G3302 | 屈服点最小值牛顿/平方毫米 | 拉伸强度最小 | 伸长率最小％ | 应用 | ||||||
分类符号 | 牛顿/平方毫米 | 标称厚度mm（T） | ||||||||
冷轧基体金属 | 热轧贱金属 | 0.25≤ | 0.4≤ | 0.6≤ | 1.0≤ | 1.6≤ | t≥2.5 | |||
t (0.4 | t (0.6 | t (1.0 | t (1.6 | t (2.5 | ||||||
国家电网公司 | SGHC | 205 | 270 | - | - | - | - | - | - | 广告 |
SGCH | - | - | - | - | - | - | - | - | - | 商业硬 |
SGCD1 | - | - | 270 | - | 34 | 36 | 37 | 38 | - | 画画 |
SGC340 | SGH340 | 245 | 340 | 20 | 20 | 20 | 20 | 20 | 20 | 结构 |
SGC400 | SGH400 | 295 | 400 | 18 | 18 | 18 | 18 | 18 | 18 | 结构 |
SGC440 | SGH440 | 335 | 440 | 18 | 18 | 18 | 18 | 18 | 18 | 结构 |
SGC490 | SGH490 | 365 | 490 | 16 | 16 | 16 | 16 | 16 | 16 | 结构 |
- | SGH540 | 400 | 540 | 16 | 16 | 16 | 结构 | |||
SGC570 | 560 | 570 | - | - | - | - | - | - | 结构 | |
Galvanized Steel Sheet
GALVANIZED SHEET ZINC SHEET GI STEEL COIL, GALVANIZED, ZINC COATED STEEL PLATE, SGCC, DX51D, ASTMA653, Z120, Z180, G30, G60, G90
Material brand:
SGCC, DX51D, ASTMA653, commercial quality, cs type A, locking forming type, S250,S280GD, S350GD, G550, SGC400, SGC440, S250GD, S350GD, G550, SGH340, SGH440.
HDGI Manufacture
THICKNESS 0.15-5.0MM, WIDTH, 91492510001219122012501500, Galvanized steel coil, HDGI Thick: 0.15 to 5.0mm
Reference standard: JIS G3302-1998, EN10142-2000, GB/ T2518-2004, ASTM A653M
Zinc coating: Z60-Z275,G30-G90, Regular Spangle, No-spangle or Mini Spangle
Coil diameter: ID 508mm 610mm
HDGI MECHANICAL SPECS:
JIS G3302 | Yield Point Minimum N/ mm2 | Tensile Strength Minimum | Elongation Minimum % | Application | ||||||
Classified symbol | N/ mm2 | Nominal Thickness mm (t) | ||||||||
cold-rolled base metal | hot-rolled base metal | 0.25≤ | 0.4≤ | 0.6≤ | 1.0≤ | 1.6≤ | t≥2.5 | |||
t (0.4 | t (0.6 | t (1.0 | t (1.6 | t (2.5 | ||||||
SGCC | SGHC | 205 | 270 | - | - | - | - | - | - | Commercial |
SGCH | - | - | - | - | - | - | - | - | - | Commercial Hard |
SGCD1 | - | - | 270 | - | 34 | 36 | 37 | 38 | - | Drawing |
SGC340 | SGH340 | 245 | 340 | 20 | 20 | 20 | 20 | 20 | 20 | Structural |
SGC400 | SGH400 | 295 | 400 | 18 | 18 | 18 | 18 | 18 | 18 | Structural |
SGC440 | SGH440 | 335 | 440 | 18 | 18 | 18 | 18 | 18 | 18 | Structural |
SGC490 | SGH490 | 365 | 490 | 16 | 16 | 16 | 16 | 16 | 16 | Structural |
- | SGH540 | 400 | 540 | 16 | 16 | 16 | Structural | |||
SGC570 | 560 | 570 | - | - | - | - | - | - | Structural | |
