这种银离子sterilizeronly可以杀死细菌，细菌，藻类等饮用水

概观

1水消毒

耗时饮用水之前就已经进行消毒。 bacteriain储罐和管道的另外的生长必须被防止。 氯化是一种众所周知的方式ofdisinfection其具有长期持久的保存时间。 这种方法已经越来越多的beenreplaced现代船舶用消毒的其他方式，不包含氯thehazardous处理。

2消毒后用银离子

使用银离子的是一个很好的证明，并接受清洗和抑制thegrowth细菌在饮用水方法。

银离子不添加味觉，嗅觉或改变水的任何其他手段。 只要theconcentration银离子存在于水中，将不会有细菌在waterdistribution系统或储罐。

银离子浓度3

对于新鲜水消毒时，建议加入银离子为0.1ppm。 生效所需的白银minimumtime是通过本机后4小时。 这shouldensure最大0.08PPM的在系统中。 1

银离子灭菌器的主要特点

ü非常紧凑的设计。 控制单元可以一起安装，或分离fromelectrode室。

ü友好的用户界面。

ü全自动银离子放电，正比于测量的流量或predefinedflow。

ü故障安全。 甲遥控阀防止水进入的情况下银离子灭菌器的distributionsystem工作不正常，或者如果该电极用完为止。

ü可以单独配置为流量计或阿伦/停止信号两个控制输入。

ü灭菌是沙坑在港口可以通过两种方式来实现水：

Ø手动：后/而加油水海港：只需输入batchvolume（M3）和银离子的适量会排出。

Ø自动：安装在掩体线流量计和连接到controlinput 2银离子会按比例thebunkered音量自动排出。 燃油流量可能比SilSter的最大容量较高;

银离子灭菌器将继续进行，直到银离子的合适量已beendischarged。

ü很容易改变电极。

ü报警输出。 用户或者警告说，如果SilSter15水消毒器工作不正常，如果theelectrode已所剩无几。

技术规格

型号：AGS-15或SIL-15银离子灭菌器

杀菌能力：0 - 10立方米/ h的水@ 0.1PPM银离子浓度（最高0.5A /最大48V / 20W最大值）。

0 - 24立方米/小时的水@ 0.04ppm银离子浓度。

银碟数：双银板100％的纯度

电压：220VAC，50 / 60Hz的

输出电流：0〜200毫安

流量计：脉冲发生型PLC的连接

防护等级：IP54

报警输出：潜在的自由，NO / NC

工作压力：最大。 在0.1Mpa

连接方式：DN25，对于无论是在/出口

整体尺寸：450 * 210 *460毫米

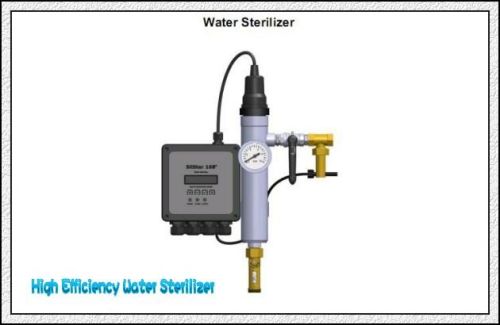

This silver ions sterilizeronly can kill off bacteria, germs, algae etc. in drinking water

Overview

1 Disinfection of water

Before consuming drinking water it has to be disinfected. Furthermore the growth of bacteriain storage tanks and pipes has to be prevented. Chlorination is a well known way ofdisinfection which has a long lasting preservation time. This method has more and more beenreplaced on modern ships by other ways of disinfection, which do not incorporate thehazardous handling of chlorine.

2 Disinfection with silver ions

The use of silver ions is a well proven and accepted method of cleaning and inhibiting thegrowth of bacteria in drinking water.

Silver ions do not add taste, smell or change the water in any other means. As long as theconcentration of silver ions is present in the water, there will be no bacteria in the waterdistribution system or in the storage tank.

3 Concentration of silver ions

For fresh water disinfection it is recommended to add 0.1ppm of silver ions. The minimumtime required for silver to take effect is 4 hours after passing through the unit. This shouldensure a maximum of 0.08ppm in the system. 1

Main Features of Silver Ion Sterilizer

ü Very compact design. Control unit can be mounted together or separated fromelectrode chamber.

ü User-friendly interface.

ü Fully automatic silver ion discharge, proportional to measured flow or to predefinedflow.

ü Fail-safe. A remotely controlled valve prevents water from entering the distributionsystem in case Silver Ion Sterilizer is not functioning normally or if the electrode is used up.

ü Two control inputs which can be individually configured for either a flow meter or arun/ stop signal.

ü Sterilizing water that is bunkered in the harbour can be done in two ways:

o Manually: After/ while bunkering water in the harbour: simply enter the batchvolume (m3) and the appropriate amount of silver ions will be discharged.

o Automatically: Install a flow meter on the bunker line and connect to controlinput 2. Silver ions will be automatically discharged in proportion to thebunkered volume. Bunker flow can be higher than SilSter's maximum capacity;

Silver Ion Sterilizer will continue until the appropriate amount of silver ions has beendischarged.

ü Very easy to change electrode.

ü Alarm output. User is warned if SilSter15 Water Sterilizer is not functioning normally or if theelectrode is running low.

Technical specifications

Model: Ags-15 or SIL-15 Silver Ion Sterilizer

Sterilization Capacity: 0 - 10 m3/ h water @ 0.1ppm silver ion concentration (max 0.5A / max 48V / max 20W) .

0 - 25 m3/ h water @ 0.04ppm silver ion concentration.

Number of silver plates: twin silver plate 100% purity

Voltage : 220VAC, 50/60Hz

Output current: 0~200mA

Flow meter : pulse generating type PLC connection

Protection : IP54

Alarm output : Potential free, NO/ NC

Working Pressure : Max. 0.1Mpa

Connection : DN25, for both in/ outlet

Overall dimensional : 450*210*460mm
