2013 ROSH and REACH magnet motor free energy

2013 ROSH and REACH magnet motor free energy

2013 ROSH和REACH永磁电机自由能

0.04 USD

加入意向

快速详细信息

  • 产地：安徽，中国（大陆）

  • 品牌名称：CY磁铁

  • 型号：永磁

  • 类型：永久

  • 综合：钕磁铁

  • 形状：块

  • 应用：工业磁铁

  • 磁特性：烧结铁氧体磁铁/粘结铁氧体磁铁

  • 等级：N30-N52，35M-48M，33H，42H，35SH-45SH，30UH，40UH，28EH-38EH。

  • 涂料：锌，镍，镍 - 铜 - 镍

  • 大小：各种

  • 认证：ISO9001：2008，ROHS，关爱

  • 其他认证：SGS

  • 包装：出口纸箱包装托盘

  • 环境：ROSH

包装及送货

包装细节： 纸箱和托盘，也可根据客户的要求。
交货详细信息： 30-40天

技术指标

2013 ROSH和REACH永磁电机自由能
1精度高，内在的，矫顽力
2.强磁力
3.16年EXP

2013 ROSH和REACH永磁电机自由能


1.等级：

N30-N52，35M-48M，33H，42H，35SH-45SH，30UH，40UH，28EH-38EH。

磁铁N-（N35，N38，N40，N42，N45，N48，N50，N52），

磁铁M-（N35M，N38M，N40M，N42M，N45M，N48M）

磁铁H-（N33H，N35H，N38H，N40H，N42H）

磁铁SH-（N35SH，N38SH，N40SH，N42SH，N45SH）

磁铁UH-（N30UH，N33UH，N35UH，N38UH，N40UH）

磁铁EH-（N28EH，N30EH，N33EH，N35EH，N38EH）

2.大小：

各种定制

3.涂层：

镍，镍铜镍，锌，白蓝锌，黑色环氧树脂，黄金等。

4.形状：

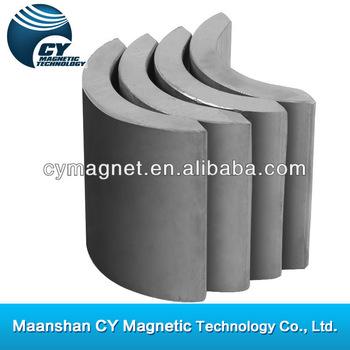

气缸，圆形，光盘，矩形，环形，沉，块，电弧线圈和我们也可以根据客户的要求，制造磁体的形状。

5.包装：

标准出口纸箱或根据客户的质量要求。

6.材料：

钕 - 铁 - 硼磁体，钕铁硼磁体

7.认证:

ISO90012008

8.技术：

利用新的230伏直流电动机的永久磁铁的技术和设备，如带材的铸造，HDDR技术

9.磁特性：

一）高矫顽力。

二）（BH）max的33〜53MGOe。

C）最高工作温度可达230℃;

10.用途：

一）电声场：诸如扬声器，耳机，耳机，舞台音响设备，报警器，话筒等。 由于出色的表现，我们的磁铁可提供音响设备更好的敏感性和敏感性。 B）电器产品：永磁机构真空断路器，magneticlatchingrelay，电度表，水表，传感器，磁簧开关等。 三）电机领域：VCM，CDVD-ROM，发电机，电动机，伺服马达，振动马达，步进电机，直流电机，线性马达等。 我们的磁体性能稳定，高HCJ可在高温才能保证您的产品更好地工作下工作。 D）机械设备：磁选机，磁力架，等磁性机。 E）医疗保健：核磁共振仪，医疗器械，磁疗保健品，节油磁化器等。 用于医疗保健领域我们稳定的永久磁铁会让人更健康。 f）其他领域：箱包磁铁，玩具磁铁，工艺礼品，包装，门窗磁铁，磁力锁，磁性固定装置等。





涂料和防腐钕铁硼的 - CY磁铁
涂层 镍 NiCuNi 锌 镍锡 镍金 镍银 环氧树脂
Corrosiveb电阻 好 优秀 好 好 好 好 很好
颜色 银 银 白蓝 银 金 银 布拉采/灰色
烧结钕铁硼永磁技术参数 - CY磁铁
级 BrmT（KGS） HCB千安/米（KOe）之 Hcj的千安/米（KOe）之 BH最大千焦/立方米（兆高斯奥斯特） 最大。 TW
N351170-1220 (11.7-12.2) ≥ 868 ( ≥ 10.9) ≥ 955 ( ≥ 12) 263-287 (33-36) ≤ 80 °C
N381220-1250 (12.2-12.5) ≥ 899 ( ≥ 11.3) ≥ 955 ( ≥ 12) 287-310 (36-39) ≤ 80 °C
N401250-1280 (12.5-12.8) ≥ 907 ( ≥ 11.4) ≥ 955 ( ≥ 12) 302-326 (38-41) ≤ 80 °C
N421280-1320 (12.8-13.2) ≥ 915 ( ≥ 11.5) ≥ 955 ( ≥ 12) 318-342 (40-43) ≤ 80 °C
N451320-1380 (13.2-13.8) ≥ 923 ( ≥ 11.6) ≥ 955 ( ≥ 12) 342-366 (43-46) ≤ 80 °C
N481380-1420 (13.8-14.2) ≥ 923 ( ≥ 11.6) ≥ 876 ( ≥ 12) 366-390 (46-49) ≤ 80 °C
N501400-1450 (14.0-14.5) ≥ 796 ( ≥ 10.0) ≥ 876 ( ≥ 11) 382-406 (48-51) ≤ 60 °C
N521430-1480 (14.3-14.8) ≥ 796 ( ≥ 10.0) ≥ 876 ( ≥ 11) 398-422 (50-53) ≤ 60 °C
30M1080-1130 (10.8-11.3) ≥ 796 ( ≥ 10.0) ≥ 1114 ( ≥ 14) 223-247 (28-31) ≤ 100 °C
33M1130-1170 (11.3-11.7) ≥ 836 ( ≥ 10.5) ≥ 1114 ( ≥ 14) 247-263 (31-33) ≤ 100 °C
35M1170-1220 (11.7-12.2) ≥ 868 ( ≥ 10.9) ≥ 1114 ( ≥ 14) 263-287 (33-36) ≤ 100 °C
38M1220-1250 (12.2-12.5) ≥ 899 ( ≥ 11.3) ≥ 1114 ( ≥ 14) 287-310 (36-39) ≤ 100 °C
40M1250-1280 (12.5-12.8) ≥ 923 ( ≥ 11.6) ≥ 1114 ( ≥ 14) 302-326 (38-41) ≤ 100 °C
42M1280-1320 (12.8-13.2) ≥ 955 ( ≥ 12.0) ≥ 1114 ( ≥ 14) 318-342 (40-43) ≤ 100 °C
45M1320-1380 (13.2-13.8) ≥ 995 ( ≥ 12.5) ≥ 1114 ( ≥ 14) 342-366 (43-46) ≤ 100 °C
48M1360-1430 (13.6-14.3) ≥ 1027 ( ≥ 12.9) ≥ 1114 ( ≥ 14) 366-390 (46-49) ≤ 100 °C
50M1400-1450 (14.0-14.5) ≥ 1033 ( ≥ 13.0) ≥ 1114 ( ≥ 14) 382-406 (48-51) ≤ 100 °C
30H1080-1130 (10.8-11.3) ≥ 796 ( ≥ 10.0) ≥ 1353 ( ≥ 17) 223-247 (28-31) ≤ 120 °C
33H1130-1170 (11.3-11.7) ≥ 836 ( ≥ 10.5) ≥ 1353 ( ≥ 17) 247-271 (31-34) ≤ 120 °C
35H1170-1220 (11.7-12.2) ≥ 868 ( ≥ 10.9) ≥ 1353 ( ≥ 17) 263-287 (33-36) ≤ 120 °C
38H1220-1250 (12.2-12.5) ≥ 899 ( ≥ 11.3) ≥ 1353 ( ≥ 17) 287-310 (36-39) ≤ 120 °C
40H1250-1280 (12.5-12.8) ≥ 923 ( ≥ 11.6) ≥ 1353 ( ≥ 17) 302-326 (38-41) ≤ 120 °C
42H1280-1320 (12.8-13.2) ≥ 955 ( ≥ 12.0) ≥ 1353 ( ≥ 17) 318-342 (40-43) ≤ 120 °C
45H1300-1360 (13-13.6) ≥ 963 ( ≥ 12.1) ≥ 1353 ( ≥ 17) 326-358 (43-46) ≤ 120 °C
48H1370-1430 (13.7-14.3) ≥ 995 ( ≥ 12.5) ≥ 1353 ( ≥ 17) 366-390 (46-49) ≤ 120 °C
30SH1080-1130 (10.8-11.3) ≥ 804 ( ≥ 10.1) ≥ 1592 ( ≥ 20) 223-247 (28-31) ≤ 150 °C
33SH1130-1170 (11.3-11.7) ≥ 844 ( ≥ 10.6) ≥ 1592 ( ≥ 20) 247-271 (31-34) ≤ 150 °C
35SH1170-1220 (11.7-12.2) ≥ 876 ( ≥ 11.0) ≥ 1592 ( ≥ 20) 263-287 (33-36) ≤ 150 °C
38SH1220-1250 (12.2-12.5) ≥ 907 ( ≥ 11.4) ≥ 1592 ( ≥ 20) 287-310 (36-39) ≤ 150 °C
40SH1240-1280 (12.5-12.8) ≥ 939 ( ≥ 11.8) ≥ 1592 ( ≥ 20) 302-326 (38-41) ≤ 150 °C
42SH1280-1320 (12.8-13.2) ≥ 987 ( ≥ 12.4) ≥ 1592 ( ≥ 20) 318-342 (40-43) ≤ 150 °C
45SH1320-1380 (13.2-13.8) ≥ 1003 ( ≥ 12.6) ≥ 1592 ( ≥ 20) 342-366 (43-46) ≤ 150 °C
28UH1020-1080 (10.2-10.8) ≥ 764 ( ≥ 9.6) ≥ 1990 ( ≥ 25) 207-231 (26-29) ≤ 180 °C
30UH1080-1130 (10.8-11.3) ≥ 812 ( ≥ 10.2) ≥ 1990 ( ≥ 25) 223-247 (28-31) ≤ 180 °C
33UH1130-1170 (11.3-11.7) ≥ 852 ( ≥ 10.7) ≥ 1990 ( ≥ 25) 247-271 (31-34) ≤ 180 °C
35UH1180-1220 (11.8-12.2) ≥ 860 ( ≥ 10.8) ≥ 1990 ( ≥ 25) 263-287 (33-36) ≤ 180 °C
38UH1220-1250 (12.2-12.5) ≥ 876 ( ≥ 11.0) ≥ 1990 ( ≥ 25) 287-310 (36-39) ≤ 180 °C
40UH1240-1280 (12.5-12.8) ≥ 899 ( ≥ 11.3) ≥ 1990 ( ≥ 25) 302-326 (38-41) ≤ 180 °C
28EH1040-1090 (10.4-10.9) ≥ 780 ( ≥ 9.8) ≥ 2388 ( ≥ 30) 207-231 (26-29) ≤ 200 °C
30EH1080-1130 (10.8-11.3) ≥ 812 ( ≥ 10.2) ≥ 2388 ( ≥ 30) 223-247 (28-31) ≤ 200 °C
33EH1130-1170 (11.3-11.7) ≥ 836 ( ≥ 10.5) ≥ 2388 ( ≥ 30) 247-271 (31-34) ≤ 200 °C
35EH1170-1220 (11.7-12.2) ≥ 876 ( ≥ 11.0) ≥ 2388 ( ≥ 30) 263-287 (33-36) ≤ 200 °C
38EH1220-1250 (12.2-12.5) ≥ 899 ( ≥ 11.3) ≥ 2388 ( ≥ 30) 287-310 (36-39) ≤ 200 °C









Quick Details

  • Place of Origin: Anhui, China (Mainland)

  • Brand Name: CY magnet

  • Model Number: hard magnet

  • Type: Permanent

  • Composite: Neodymium Magnet

  • Shape: Block

  • Application: Industrial Magnet

  • magnetic properties: Sintered Ferrite Magnets/ Bonded Ferrite Magnets

  • grade: N30-N52, 35M-48M, 33H-42H, 35SH-45SH, 30UH-40UH, 28EH-38EH.

  • coating: Zinc, Nickel, Nickel-copper-nickel

  • size: various

  • certification: ISO9001: 2008, RoHS, Reach

  • other certification: SGS

  • package: export carton packing with pallet

  • environment: ROSH

Packaging & Delivery

Packaging Details: Carton & Pallet, or according to customers's requirement.
Delivery Detail: 30-40 days

Specifications

2013 ROSH and REACH magnet motor free energy
1 High accuracy, intrinsic, coercive force
2. Strong magnetic force
3.16 year exp

2013 ROSH and REACH magnet motor free energy


1. Grades:

N30-N52, 35M-48M, 33H-42H, 35SH-45SH, 30UH-40UH, 28EH-38EH.

Magnet N- ( N35, N38, N40, N42, N45, N48, N50, N52) ,

Magnet M- (N35M, N38M, N40M, N42M, N45M, N48M) ,

Magnet H- (N33H, N35H, N38H, N40H, N42H) ,

Magnet SH- ( N35SH, N38SH, N40SH, N42SH, N45SH) ,

Magnet UH- ( N30UH, N33UH, N35UH, N38UH, N40UH) ,

Magnet EH- (N28EH, N30EH, N33EH, N35EH, N38EH)

2. Size:

various customized

3. Coating:

Nickel, Ni-Cu-Ni, Zinc, white-blue Zn, Black epoxy resin, Gold and etc.

4. Shapes:

Cylinder, round, disc, rectangle, ring, countersunk, block, Arc coil and we can also manufacture the shape of magnet according to clients requirement.

5. Package:

standard exporting carton or according to the customer requirments.

6. Materials:

Neodymium-Iron-Boron magnets, Sintered NdFeB magnets

7. Certification:

ISO90012008

8. Technology:

Utilizes new 230v dc motor permanent magnet techniques and equipment such as Strip casting, HDDR technology

9. Magnetic properties:

a) High coercive force.

b) (BH) max from 33 to 53MGOe.

c) Max working temperature up to 230°C;

10. Applications:

a) Electro-acoustic field: such as loudspeaker, headphone, earphone, stage sound device, alarm, microphone and so on. Because of good performance, our magnets can provide sound equipments better sensitiveness and susceptibility. b) Electric products: Permanent magnetic actuator vacuum circuit breaker, magneticlatchingrelay, watt-hour meter, watermeter, sensor, reed switch and so on. c) Motor areas: VCM, CDVD-ROM, generator, electromotor, servo motor, vibration motor, step motor, DC motor, linear motor and so on. Our magnets with stable performance and high HCJ can work under high temperature which can guarantee your products work better. d) mechanical equipment: magnetic separator, magnetic holder, and other magnetic machines. e) Health care: nuclear magnetic resonance spectrometer, medical apparatus and instruments, magnetic therapy and health care products, fuel-saving magnetizer and so on. Our stable permanent magnets used in health care areas will make people healthier. f) Other fields: bags magnets, toy magnets, craft gifts and packaging, doors and windows magnets, magnetic locks, magnetic holding devices and so on.





Coating and Anti-corrosive of NdFeB Magnet - CY Magnet
CoatingNickelNiCuNiZincNi-SnNi-AuNi-AgEpoxy
Corrosiveb ResistanceGoodExcellentGoodGoodGoodGoodVery Good
ColorSilverSilverWhite BlueSilverGoldSilverBlace/ Gray
Technical data of sintered NdFeB Magnet - CY Magnet
GradeBrmT (kGs) Hcb kA/ m (kOe) Hcj kA/ m (kOe) BH max kJ/ m3 (MGOe) Max. Tw
N351170-1220 (11.7-12.2) ≥ 868 ( ≥ 10.9) ≥ 955 ( ≥ 12) 263-287 (33-36) ≤ 80 °C
N381220-1250 (12.2-12.5) ≥ 899 ( ≥ 11.3) ≥ 955 ( ≥ 12) 287-310 (36-39) ≤ 80 °C
N401250-1280 (12.5-12.8) ≥ 907 ( ≥ 11.4) ≥ 955 ( ≥ 12) 302-326 (38-41) ≤ 80 °C
N421280-1320 (12.8-13.2) ≥ 915 ( ≥ 11.5) ≥ 955 ( ≥ 12) 318-342 (40-43) ≤ 80 °C
N451320-1380 (13.2-13.8) ≥ 923 ( ≥ 11.6) ≥ 955 ( ≥ 12) 342-366 (43-46) ≤ 80 °C
N481380-1420 (13.8-14.2) ≥ 923 ( ≥ 11.6) ≥ 876 ( ≥ 12) 366-390 (46-49) ≤ 80 °C
N501400-1450 (14.0-14.5) ≥ 796 ( ≥ 10.0) ≥ 876 ( ≥ 11) 382-406 (48-51) ≤ 60 °C
N521430-1480 (14.3-14.8) ≥ 796 ( ≥ 10.0) ≥ 876 ( ≥ 11) 398-422 (50-53) ≤ 60 °C
30M1080-1130 (10.8-11.3) ≥ 796 ( ≥ 10.0) ≥ 1114 ( ≥ 14) 223-247 (28-31) ≤ 100 °C
33M1130-1170 (11.3-11.7) ≥ 836 ( ≥ 10.5) ≥ 1114 ( ≥ 14) 247-263 (31-33) ≤ 100 °C
35M1170-1220 (11.7-12.2) ≥ 868 ( ≥ 10.9) ≥ 1114 ( ≥ 14) 263-287 (33-36) ≤ 100 °C
38M1220-1250 (12.2-12.5) ≥ 899 ( ≥ 11.3) ≥ 1114 ( ≥ 14) 287-310 (36-39) ≤ 100 °C
40M1250-1280 (12.5-12.8) ≥ 923 ( ≥ 11.6) ≥ 1114 ( ≥ 14) 302-326 (38-41) ≤ 100 °C
42M1280-1320 (12.8-13.2) ≥ 955 ( ≥ 12.0) ≥ 1114 ( ≥ 14) 318-342 (40-43) ≤ 100 °C
45M1320-1380 (13.2-13.8) ≥ 995 ( ≥ 12.5) ≥ 1114 ( ≥ 14) 342-366 (43-46) ≤ 100 °C
48M1360-1430 (13.6-14.3) ≥ 1027 ( ≥ 12.9) ≥ 1114 ( ≥ 14) 366-390 (46-49) ≤ 100 °C
50M1400-1450 (14.0-14.5) ≥ 1033 ( ≥ 13.0) ≥ 1114 ( ≥ 14) 382-406 (48-51) ≤ 100 °C
30H1080-1130 (10.8-11.3) ≥ 796 ( ≥ 10.0) ≥ 1353 ( ≥ 17) 223-247 (28-31) ≤ 120 °C
33H1130-1170 (11.3-11.7) ≥ 836 ( ≥ 10.5) ≥ 1353 ( ≥ 17) 247-271 (31-34) ≤ 120 °C
35H1170-1220 (11.7-12.2) ≥ 868 ( ≥ 10.9) ≥ 1353 ( ≥ 17) 263-287 (33-36) ≤ 120 °C
38H1220-1250 (12.2-12.5) ≥ 899 ( ≥ 11.3) ≥ 1353 ( ≥ 17) 287-310 (36-39) ≤ 120 °C
40H1250-1280 (12.5-12.8) ≥ 923 ( ≥ 11.6) ≥ 1353 ( ≥ 17) 302-326 (38-41) ≤ 120 °C
42H1280-1320 (12.8-13.2) ≥ 955 ( ≥ 12.0) ≥ 1353 ( ≥ 17) 318-342 (40-43) ≤ 120 °C
45H1300-1360 (13-13.6) ≥ 963 ( ≥ 12.1) ≥ 1353 ( ≥ 17) 326-358 (43-46) ≤ 120 °C
48H1370-1430 (13.7-14.3) ≥ 995 ( ≥ 12.5) ≥ 1353 ( ≥ 17) 366-390 (46-49) ≤ 120 °C
30SH1080-1130 (10.8-11.3) ≥ 804 ( ≥ 10.1) ≥ 1592 ( ≥ 20) 223-247 (28-31) ≤ 150 °C
33SH1130-1170 (11.3-11.7) ≥ 844 ( ≥ 10.6) ≥ 1592 ( ≥ 20) 247-271 (31-34) ≤ 150 °C
35SH1170-1220 (11.7-12.2) ≥ 876 ( ≥ 11.0) ≥ 1592 ( ≥ 20) 263-287 (33-36) ≤ 150 °C
38SH1220-1250 (12.2-12.5) ≥ 907 ( ≥ 11.4) ≥ 1592 ( ≥ 20) 287-310 (36-39) ≤ 150 °C
40SH1240-1280 (12.5-12.8) ≥ 939 ( ≥ 11.8) ≥ 1592 ( ≥ 20) 302-326 (38-41) ≤ 150 °C
42SH1280-1320 (12.8-13.2) ≥ 987 ( ≥ 12.4) ≥ 1592 ( ≥ 20) 318-342 (40-43) ≤ 150 °C
45SH1320-1380 (13.2-13.8) ≥ 1003 ( ≥ 12.6) ≥ 1592 ( ≥ 20) 342-366 (43-46) ≤ 150 °C
28UH1020-1080 (10.2-10.8) ≥ 764 ( ≥ 9.6) ≥ 1990 ( ≥ 25) 207-231 (26-29) ≤ 180 °C
30UH1080-1130 (10.8-11.3) ≥ 812 ( ≥ 10.2) ≥ 1990 ( ≥ 25) 223-247 (28-31) ≤ 180 °C
33UH1130-1170 (11.3-11.7) ≥ 852 ( ≥ 10.7) ≥ 1990 ( ≥ 25) 247-271 (31-34) ≤ 180 °C
35UH1180-1220 (11.8-12.2) ≥ 860 ( ≥ 10.8) ≥ 1990 ( ≥ 25) 263-287 (33-36) ≤ 180 °C
38UH1220-1250 (12.2-12.5) ≥ 876 ( ≥ 11.0) ≥ 1990 ( ≥ 25) 287-310 (36-39) ≤ 180 °C
40UH1240-1280 (12.5-12.8) ≥ 899 ( ≥ 11.3) ≥ 1990 ( ≥ 25) 302-326 (38-41) ≤ 180 °C
28EH1040-1090 (10.4-10.9) ≥ 780 ( ≥ 9.8) ≥ 2388 ( ≥ 30) 207-231 (26-29) ≤ 200 °C
30EH1080-1130 (10.8-11.3) ≥ 812 ( ≥ 10.2) ≥ 2388 ( ≥ 30) 223-247 (28-31) ≤ 200 °C
33EH1130-1170 (11.3-11.7) ≥ 836 ( ≥ 10.5) ≥ 2388 ( ≥ 30) 247-271 (31-34) ≤ 200 °C
35EH1170-1220 (11.7-12.2) ≥ 876 ( ≥ 11.0) ≥ 2388 ( ≥ 30) 263-287 (33-36) ≤ 200 °C
38EH1220-1250 (12.2-12.5) ≥ 899 ( ≥ 11.3) ≥ 2388 ( ≥ 30) 287-310 (36-39) ≤ 200 °C
