冲击式水轮机简介

所述水斗式水轮机通常是优选的涡轮水电，当可利用的水源具有较高的液压头在低流速，其中，佩尔顿水轮机是最有效的。 它们具有的优点，如结构紧凑，体积小，效率高，低运营维护成本，因为较少的挖掘和较少的投资等，以及像不足能量回收和较低的效率比其他类型的涡轮机的缺点，成本低。

适用范围
头应用范围：80米〜1200米
转轮直径：0.6 M〜3.5米
可安装容量：200KW〜80000KW

他们轴安排垂直或水平，他们可能有单喷嘴，双或多喷嘴。 有特色，如高水头，大容量，多喷嘴和良好的结构等。

冲击式水轮机的组成
喷嘴，亚军，支撑件和导流板部件。
主要成分：转动部件（转轮，主轴等），喷嘴部件（喷嘴和相关的控制），座椅部件（座椅，盖，蜗壳等），管道配件（分配管，刹车管，膨胀节等），轴承零件 和别的。 核心部分是亚军及喷嘴结构

冲击式水轮机的结构 亚军，喷淋管，挡板，转轮，蜗壳，尾水箱。

叶片转动运营商

跑步者
成分：涡轮盘，桶（以及涡轮盘均匀分布）。

连接类型：螺栓，整体铸造，焊接。

喷淋管
成分：喷嘴，喷嘴体，针型阀，喷淋梁，运行机制。
针阀：控制涡轮机的水流表明如中风。

挡板
慢慢关闭针阀，减少水锤压力偏离水流从水舀，避免速度的提升。

蜗壳
导水引流舀到尾水箱。 一般来说，蜗壳是铸钢件。

引水板
防止水流溅入上沿，导致额外损失了亚军。

为什么选择我们（ADDNEW）

1.我们可以提供完整的设备，包括：水轮机，发电机，进水阀，调速器，电脑控制面板，等配套设备。

2.我司生产的能力和混流式水轮机转轮质量排名第一，中国所有的中小型企业之间。

3.我们有微电脑数字调速器。

4.我们的低电压（400V）发生器可通过微机监测系统控制。 （一键开机，和一键关闭）

5.我们微机XCR励磁面板是自动控制，可以监测温度，转速，水位，电流，并自动电压。 如果微机励磁XCR面板坏了，你可以手动控制备份，那么，本机可正常运行的微机励磁XCR板修复前.

如何查询我们的产品？

1.请发送给我们HPP的详细参数

A水流浆米

乙液流 - 立方米/秒
安装在C能力KW
ð频率 - 50Hz或60Hz
Ë发电机excitation-静止可控硅励磁或无刷励磁
这些参数将决定哪种类型的涡轮机和发电机最好的满足您的用水条件。
2.请告诉我们您的水轮发电机组的要求。
所需装备中一做特别的材料？
B做出单元手动或由电脑控制？
Ç我应该在提案中被引用？
机电部分？ Swithyard？

ADDNEW科技有限公司
联系人：谢切丽
手机：+ 86-15874968744
如果您有任何问题，请随时与我们联系！

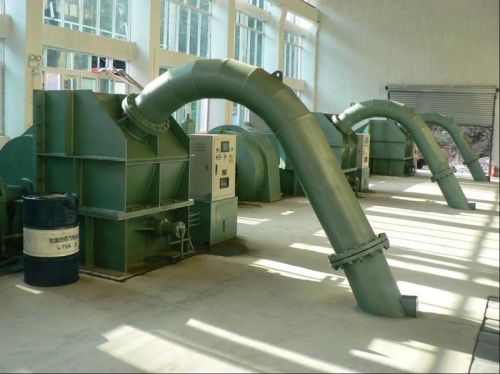

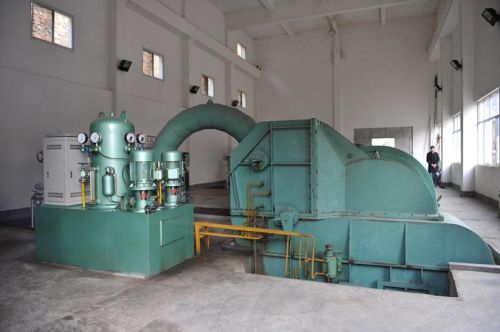

Introduction of Pelton turbine

The Pelton type turbine is usually the preferred turbine for hydropower, when the available water source has relatively high hydraulic head at low flow rates, where the Pelton wheel is most efficient. They have the advantages such as compact structure, small size, high efficiency, low operation maintenance cost, low cost because of less excavation and less investments, etc. and disadvantages like inadequate energy recovery and lower efficiency than other types of turbines.

Application scope
Application scope of head: 80m~1200m
Runner diameter: 0.6 m ~ 3.5m
Installable capacity: 200KW ~ 80000KW

Theirs shaft arrangements are either vertical or horizontal and they may have single nozzle, twin or multi-nozzles. With characteristics such as high head, big capacity, multi-nozzle and good structure, etc..

Composition of Pelton turbine
Nozzle, runner, support parts and deflector parts.
Major components: rotating parts (runner, main shaft etc) , nozzle parts (nozzle and related control) , seat parts (seat, cover, spiral casing etc) , pipeline parts (distributing pipe, brake piping, expansion joint etc) , bearing parts and others. Core part is the runner and nozzle for structure

Structure of Pelton turbine Runner, spray pipe, baffle plate, runner, spiral casing, tail water tank.

Blade rotation operator

Runner
Component: turbine disc, bucket (uniformly distributed along turbine disc) .

Connection type: bolt, integrally cast, weld.

Spray pipe
Component: nozzle, nozzle body, needle valve, spray beam, operating mechanism.
Needle valve: control the water flow of turbine showed as stroke.

Baffle plate
Slowly close the needle valve and reduce the water hammer pressure to deviated water flow out from water scoop and avoid the speed increase.

Spiral casing
Guide the water drainage from the scoop into the tail water tank. Generally the spiral casing is steel casting.

Water diversion plate
Prevent the water flow to splash into the above along the runner that cause additional losses.

Why Choose Us (Addnew)

1. We can provide the complete equipment, including: Water Turbine, Generators, Inlet Valve, Governor, Computer Control Panel, and other ancillary equipment.

2. Our production ability and quality of Francis Turbine runner ranked first in China among all the small and medium sized enterprises.

3. We have Microcomputer digital speed governor.

4. Our Low voltage (400V) Generator can be controlled by microcomputer monitor system. ( A key to boot, and a key off)

5. Our Microcomputer XCR Excitation Panel is automatic controlled and can monitor temperature, rotate speed, water level, electric current, and voltage automatically. If the Microcomputer XCR Excitation Panel broke down, you can Manual control backup, then, the machine can run normally before the Microcomputer XCR Excitation Panel repaired.

How to inquire our product?

1. please send us the detailed parameters of the HPP

A Water head- m

B Flow- m3/ s
C Installed capacity- KW
D Frequency- 50HZ or 60HZ
E Generator excitation- static SCR excitation or brushless excitation
Those parameters will decide which type of turbine and generator best satisfy your water condition.
2. Tell us your requirements of the water turbine generator unit.
A Does special material required for the equipments?
B Does the unit controlled manually or by computer?
C What should be quoted in the proposal?
Mechanical and Electrical part? Swithyard?

Addnew Technologies Limited
Contact person: Cherie Xie
Mobile: +86-15874968744
If you have any questions, Please feel free to contact us!
