High Efficiency Horizontal Type Generator\Generator for Hydroelectric Power Plant
高效卧式发生器/发生器水电站
卧式发电机简介
卧式发电机由定子，转子，轴承，冷却系统和制动系统等。水平型发电机的特征是，在同一平面上的发电机和涡轮机共用一个轴，其结构是2个点支持，它覆盖一个相当大的面积。
卧式机 - 容量小，结构简单，安装方便，可降低厂房高度，节省了挖方量。 通常它是用于中间。 /小容量机组，贯流式机组，高亚军速度（超过375转/分）为单位。 当两个涡轮机拖动一台发电机，它会使用横式。
公司介绍
于1958年发现，我们在水电制品厂不断自1995年。如今，它已246000平方米地面积和68000平方米办公楼面积一直是国家战略涡轮机制造商之一，在中国。 拥有超过500名工人和200多名技术人员和工程师，ADDNEW的投资工厂通过ISO9000-2000和CE认证。
从2005年到2012年年底开始，ADDNEW以及我们在湖南，中国的工厂已经设计，制造并成功超过170小水电站在阿尔巴尼亚，智利，刚果，印度，立陶宛，哈萨克斯坦，越南，赞比亚和其他已安装 海外市场。 对于那些水电站采用的设备为机组容量从800KW到100MW，每个站从1600KW-200MW的总发电能力。 所有已完成的站现在都保持其其安装后的峰值性能。
为什么选择我们（ADDNEW）
1.我们可以提供完整的设备，包括：水轮机，发电机，进水阀，调速器，电脑控制面板，等配套设备。
2.我司生产的能力和混流式水轮机转轮质量排名第一，中国所有的中小型企业之间。
3.我们有微电脑数字调速器。
4.我们的低电压（400V）发生器可通过微机监测系统控制。 （一键开机，和一键关闭）
5.我们微机XCR励磁面板是自动控制，可以监测温度，转速，水位，电流，并自动电压。 如果微机励磁XCR面板坏了，你可以手动控制备份，那么，本机可正常运行的微机励磁XCR板修复前.
如何查询我们的产品？
1.请发送给我们HPP的详细参数
A水流浆米
乙液流 - 立方米/秒
安装在C能力KW
ð频率 - 50Hz或60Hz
Ë发电机excitation-静止可控硅励磁或无刷励磁
这些参数将决定哪种类型的涡轮机和发电机最好的满足您的用水条件。
2.请告诉我们您的水轮发电机组的要求。
所需装备中一做特别的材料？
B做出单元手动或由电脑控制？
Ç我应该在提案中被引用？
机电部分？ Swithyard？
ADDNEW科技有限公司
联系人：谢切丽
手机：+ 86-15874968744
如果您有任何问题，请随时与我们联系！

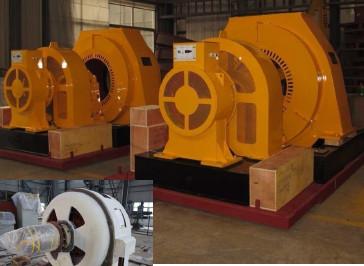

Introduction of horizontal type generators
Horizontal type generator consists of stator, rotor, bearing, cooling system and brake system, etc.The characteristic of horizontal type generator is that the generator and turbine share one shaft in the same plane and its structure is 2 points for support, which covers a quite large area.
Horizontal unit - small capacity, simple structure, convenient installation, can reduce the powerhouse height and save the excavated volume. Usually it is used for mid. / small-capacity units, tubular turbine and high runner speed (over 375 r/ min) units. When two turbines drag one generator, it will use horizontal type.
Company Introduction
Found in 1958, our factory in hydropower products has continuously been one of the national strategic turbine manufacturers in China since year 1995. It has now 246000 square meters ground area and 68000 square meters office building area. With over 500 workers and over 200 technicians and engineers, ADDNEW's invested factory is certificated by ISO9000-2000 and CE.
From the start of 2005 to the end of 2012, ADDNEW and our factory in Hunan, China have designed, manufactured and installed successfully over 170 small Hydroelectric Power Stations in Albania, Chili, Congo, India, Lithuania, Kazakhstan, Vietnam, Zambia and other overseas markets. The equipments adopted for those hydropower stations are unit-capacity from 800KW to 100MW and the total power generating capacities of each station ranging from 1600KW-200MW. All the completed stations are now maintaining their peak performance after their installations.
Why Choose Us (Addnew)
1. We can provide the complete equipment, including: Water Turbine, Generators, Inlet Valve, Governor, Computer Control Panel, and other ancillary equipment.
2. Our production ability and quality of Francis Turbine runner ranked first in China among all the small and medium sized enterprises.
3. We have Microcomputer digital speed governor.
4. Our Low voltage (400V) Generator can be controlled by microcomputer monitor system. ( A key to boot, and a key off)
5. Our Microcomputer XCR Excitation Panel is automatic controlled and can monitor temperature, rotate speed, water level, electric current, and voltage automatically. If the Microcomputer XCR Excitation Panel broke down, you can Manual control backup, then, the machine can run normally before the Microcomputer XCR Excitation Panel repaired.
How to inquire our product?
1. please send us the detailed parameters of the HPP
A Water head- m
B Flow- m3/ s
C Installed capacity- KW
D Frequency- 50HZ or 60HZ
E Generator excitation- static SCR excitation or brushless excitation
Those parameters will decide which type of turbine and generator best satisfy your water condition.
2. Tell us your requirements of the water turbine generator unit.
A Does special material required for the equipments?
B Does the unit controlled manually or by computer?
C What should be quoted in the proposal?
Mechanical and Electrical part? Swithyard?
Addnew Technologies Limited
Contact person: Cherie Xie
Mobile: +86-15874968744
If you have any questions, Please feel free to contact us!
