HOLUX GR-213 GPS接收器

GR-213是专门设计用于便携式设备的连接如PDA /智能手机/笔记本电脑

计算机。 基于newst采用SiRF Star III芯片，GR-213执行它的高品质，低功耗

消费，方便携带，体积小，可充电和可移动的电池功能，以您的

个人，汽车，船舶等导航和跟踪装置。

HOLUX GR-213 GPS接收器功能：

1. Arallel卫星追踪频道，可快速定位及重新定位。

2. 200000+有效相关快速TTFF和极快的TTFF的在低信号电平。

3.内置硬件跟踪环处理器的WAAS / EGNOS解调器的支持。

4.内置可充电锂电池，时间 - TO-首次定位时间（TTFF）。

5.支持NMEA 0183 V2.2数据协议。

6.增强算法提供了在城市，峡谷和叶子卓越的导航性能

环境。

HOLUX GR-213 GPS接收器规格：

1.轨道20颗卫星

2.接收器：L1，C / A码。

3.快照启动：（3秒（在（25分钟关闭时间）

4.更新频率：1 HZ（最大值）

5.天线类型：内置的贴片天线。

6.最小信号追踪：-175dBW

7，外形尺寸：64.5 * 42 *17.8毫米

8.重量：（84克

9.功率消耗：（80毫安在4.5〜5.5V的输入

10.防水

11.工作温度：-10℃至+ 60℃

12.储存温度：-20℃〜+ 70℃

13.工作湿度：5％至95％非结露

了解更多关于长天GR-213 GPS接收器在http：//www.holuxdevice.com/ HOLUX-GR-213。 HTML

sales@holuxdevice.com或电话+852 65546106：如果你想购买的话，请通过电子邮件与我们联系

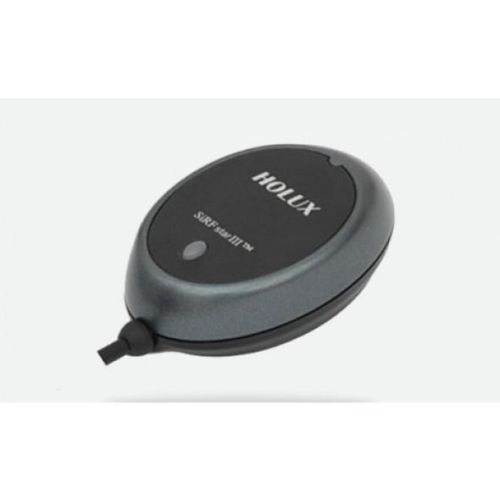

Holux GR-213 GPS Receiver

GR-213 is dedicated designed for connecting the portable device such as PDAs / Smart Phones/ Laptop

Computers. Based on the newst SiRF Star III chip, GR-213 performs its high quality, low power

consumption, portable, compact size, rechargeable and removable battery functions to your

personal, vehicle, marine etc. navigation and tracking device.

Holux GR-213 GPS Receiver Features:

1. Arallel satellite-tracking channels for fast acquisition and reacquisition.

2. 200000+ effective correlators for fast TTFF and extremely fast TTFF's at low signal levels.

3. Built-in hardware Tracking Loop Processor WAAS/ EGNOS Demodulator support.

4. Built-in rechargeable lithium battery for Time- To- First-Fix (TTFF) .

5. Support NMEA 0183 v2.2 data protocol.

6. Enhanced algorithms provide superior navigation performance in urban, canyon and foliage

environments.

Holux GR-213 GPS Receiver Specifications:

1. Tracks up to 20 satellites

2. Receiver: L1, C/ A code.

3. Snap Start: (3 sec (at ( 25 minutes off period)

4. Update rate: 1 HZ (max)

5. Antenna Type: Built in Patch Antenna.

6. Minimum signal tracked: -175dBW

7. Dimension: 64.5 * 42 * 17.8 mm

8. Weight : ( 84g

9. Power consumption: ( 80mA at 4.5- 5.5V input

10. Waterproof

11. Operation Temperature: -10 ℃ to +60 ℃

12. Store Temperature: -20 ℃ to + 70 ℃

13. Operation Humidity: 5% to 95% No condensing

Read more about Holux GR-213 GPS Receiver on http: //www.holuxdevice.com/ holux-gr-213. html

If you want to buy it, please contact us via Email: sales@holuxdevice.com or telephone +852 65546106
