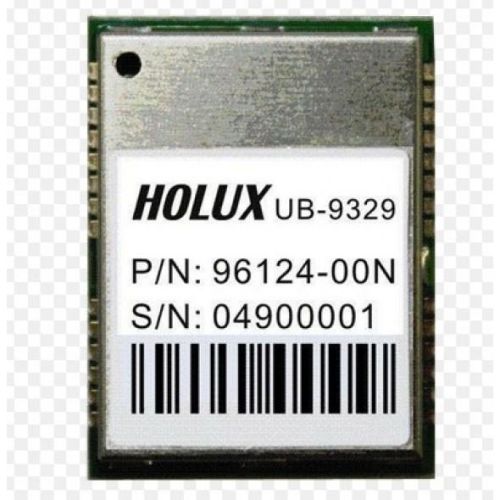

长天UB-9329 GPS模块

UB-9329是一款超小型17×22.4 x 3mm的GPS模块由低功耗MTK的GPS设计

解。 它的导航提供了卓越的灵敏度高达-165dBm和快速的时间到首次定位

应用。 性能UB-9329的稳定是嵌入在便携式您最好的选择

装置的设计，如PDA，PND，移动电话，数码相机用于GPS的服务。

长天UB-9329 GPS模块特点：

1.小尺寸：17×22.4 x 3mm的

2.高灵敏度-165 dBm的（跟踪）高达66并行搜索，22跟踪通道

3.快速定位

4.低功耗consumptionSupport SBAS

5. 2D位置被认为是定位

6.三维位置被认为是定位

7. 2D位置+天线检测

8.三维位置+天线检测

长天UB-9329 GPS模块规格：

1. GPS技术：MTK GPS芯片组

2.频率：L11575.42兆赫

3. C / A码：1.023 MHz的码片速率

4.通道：66并行搜索，22跟踪通道

5.灵敏度：-165 dBm的（跟踪）

6.基准面：WGS84（预设）共219数据的

7.协议支持：NMEA-0183

8. 1PPS：启用（1Hz的脉冲占空比为10％）

9，外形尺寸：17 * 22.4 * 3毫米。

10.重量：1克

11.接口：CMOS 2.8 V电平

12.认证：CE，FCC

了解更多关于HTTP长天UB-9329 GPS模块：//www.holuxdevice.com/ HOLUX-UB-9329。 HTML

sales@holuxdevice.com或电话+852 65546106：如果你想购买的话，请通过电子邮件与我们联系

Holux UB-9329 GPS Module

UB-9329 is an ultra miniature 17 x 22.4 x 3mm GPS module designed by low power consumption MTK GPS

solution. It provides superior sensitivity up to -165dBm and fast Time-To-First-Fix in navigation

application. The stable performance of UB-9329 is your best choice to be embedded in your portable

device design, like PDA, PND, mobile phone, Digital Camera for GPS service.

Holux UB-9329 GPS Module Features:

1. Small form factor: 17 x 22.4 x 3mm

2. High sensitivity -165 dBm (Tracking) Up to 66 parallel searching, 22 tracking channels

3. Fast Position Fix

4. Low power consumptionSupport SBAS

5. 2D position is considered positioning

6. 3D position is considered positioning

7. 2D position + Antenna detect

8. 3D position + Antenna detect

Holux UB-9329 GPS Module Specifications:

1. GPS technology: MTK GPS chipset

2. Frequency: L11575.42 MHz

3. C/ A Code: 1.023 MHz chip rate

4. Channels: 66 parallel searching, 22 tracking channels

5. Sensitivity: -165 dBm (Tracking)

6. Datum: WGS84 (Default) total 219 datum's

7. Protocol Support: NMEA-0183

8. 1PPS: Enable (1Hz pulse 10% duty cycle)

9. Dimension: 17 * 22.4 * 3 mm.

10. Weight: 1g

11. Interface: CMOS 2.8 V Level

12. Certificate: CE, FCC

Read more about Holux UB-9329 GPS Module on http: //www.holuxdevice.com/ holux-ub-9329. html

If you want to buy it, please contact us via Email: sales@holuxdevice.com or telephone +852 65546106
