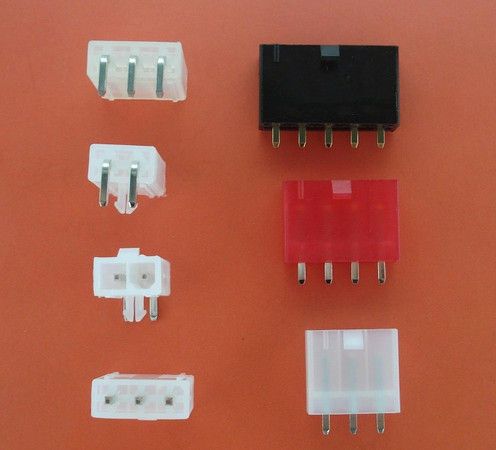

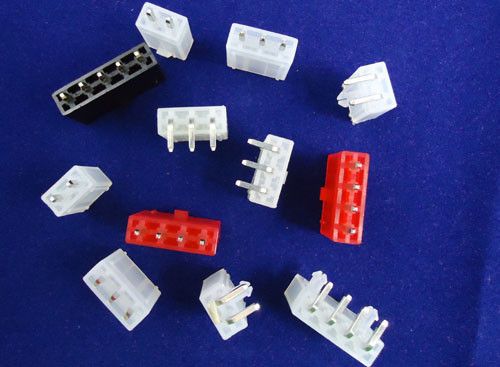

Mini Fit Wire To Board Connectors With Snap In Plastic Peg PCB Lock 3 4 5 Circuits
迷你飞度线对板连接器管理单元塑料钉板锁定3 4 5电路
详细信息
| 沥青： | 0.165in，4.2毫米 | 行： | 单 |
| PCB方向： | 通孔，DIP | 颜色： | 自然，红色 |
| 触点类型： | 立式，卧式 | 销： | 2~12 |
迷你飞度线对板连接器管理单元塑料钉板锁定3 4 5电路
快速详细信息：
名称 | 插头连接器 | 应用 | Power，线对板 |
连接器 | Molex公司5569微适合JR头 | 电路/杆/销 | 2~12 |
沥青 | 4.20毫米 | 证书 | ROHS，UL，HF |
技术参数：
住房 | 莫仕微型飞度插座外壳，插头外壳等效 |
压接端子 | 43030男性和女性，镀锡 |
头/晶圆 | 39-30-3055或5569-05A4垂直/直角 |
间距中心线 | 4.2毫米 |
电路/杆/销 | 3456789101112 |
行数 | 单或双 |
额定电流 | 5A AC，DC |
额定电压 | 250V，AC，DC |
电线范围 | AWG20〜24 |
说明：
4.2毫米间距，等于Molex公司的Mini-飞度5569连接器
随着极化匹配几何
确保报头和插座不能不相配。
速效的可在UL94V-0，V-2，适用于多种应用，以满足全球材料要求
应用：
医生
医疗器材
联网
风扇托架组件，机架式服务器，路由器/交换机
电信
背板
集线器
电源和配电
路由器
服务器
消费者
家用电器
弹球和老虎机
自动售货机
视频扑克和老虎机
OEM线束，电缆组装订单，欢迎！
标签 :
表面安装连接器
,
PCB连接器线对板
Detailed Product Description
| Pitch: | 0.165in, 4.2mm | Row: | Single |
| PCB Direction: | Through Hole, DIP | Color: | Natural, Red |
| Contact Type: | Vertical, Horizontal | Pins: | 2~12 |
Mini Fit Wire To Board Connectors With Snap In Plastic Peg PCB Lock 3 4 5 Circuits
Quick Detail:
Name | Header connector | Application | Power, Wire-to-Board |
Connector | Molex 5569 micro fit Jr header | Circuits/ poles/ pins | 2~12 |
Pitch | 4.20mm | Certificate | ROHS, UL, HF |
Specifications:
Housing | Equivalent of Molex Micro-Fit receptacle Housing, plug housing |
Crimp terminal | 43030 Male and female, tin plated |
Header/ wafer | 39-30-3055 or 5569-05A4 Vertical/ Right angle |
Pitch Centerline | 4.2mm |
Circuits/ poles/ pins | 3456789101112 |
Number of Rows | Single or Dual |
Current rating | 5A AC, DC |
Voltage rating | 250V, AC, DC |
Wire range | AWG20~24 |
Descriptions:
4.2mm pitch, be equal to Molex Mini-Fit 5569 connectors
With Polarized mating geometry
Ensures header and receptacle cannot be mismated.
Availabe in Available in UL94V-0, V-2, Ideal for many applications to meet global material requirements
Application:
Medical
Medical Devices
Networking
Fan Tray Assemblies, Rack-mount server, Router/ Switch
Telecommunications
Backplanes
Hubs
Power supplies and distribution
Routers
Servers
Consumer
Home appliances
Pinball and slot machines
Vending Machines
Video poker and pachinko
OEM wire harness, cable assemble orders are welcomed!
