5559 Mini - Fit Jr Plug Housing Wire To Board Connectors 5 Circuits UL 94V - 2 For Copiers
5559迷你 - 适合JR插头外壳线对板连接5电路UL 94V - 2复印机
详细信息
| 沥青： | 0.165in，4.2毫米 | 行： | 单 |
| PCB方向： | 通孔，DIP | 颜色： | 自然，红色 |
| 触点类型： | 立式，卧式 | 销： | 2~12 |
5559迷你 - 适合JR插头外壳线对板连接5电路UL 94V - 2复印机
快速详细信息：
名称 | 插头外壳连接器 | 应用 | Power，线对板 |
连接器 | Molex公司5559微适合JR住房 | 电路/杆/销 | 3~12 |
沥青 | 4.20毫米 | 证书 | ROHS，UL，HF |
说明：
4.2毫米间距，等于Molex公司的Mini-飞度5559连接器，与队友39-01-4030插座外壳
具有正锁定：操作拇指闭锁容易确保连接器完全对接。 正锁定防止意外脱开。
速效的可在UL94V-0，V-2，适用于多种应用，以满足全球材料要求
技术参数：
住房 | 莫仕微型飞度5559 39014032插头外壳的等效 |
压接端子 | 43030男性和女性，镀锡 |
头/晶圆 | 39-30-3055或5569-05A4垂直/直角 |
间距中心线 | 4.2毫米 |
电路/杆/销 | 3~12 |
行数 | 单或双 |
额定电流 | 5A AC，DC |
额定电压 | 250V，AC，DC |
电线范围 | AWG20〜24 |
应用：
数据/通信：
复印机
办公用品
打印机
产业
食品和饮料自动售货机
电源市场和应用
自动售货机
自动化设备
工业网络
OEM线束，电缆组装订单，欢迎！
标签 :
表面安装连接器
,
莫仕微型飞度连接器
Detailed Product Description
| Pitch: | 0.165in, 4.2mm | Row: | Single |
| PCB Direction: | Through Hole, DIP | Color: | Natural, Red |
| Contact Type: | Vertical, Horizontal | Pins: | 2~12 |

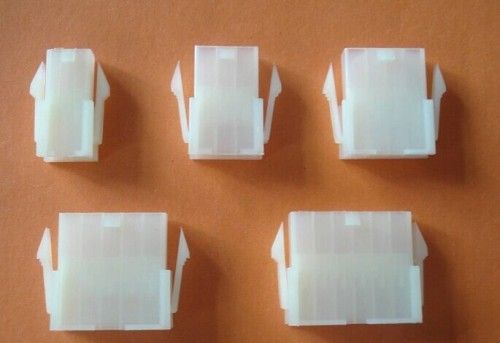

5559 Mini - Fit Jr Plug Housing Wire To Board Connectors 5 Circuits UL 94V - 2 For Copiers
Quick Detail:
Name | Plug housing connector | Application | Power, Wire-to-Board |
Connector | Molex 5559 micro fit Jr housing | Circuits/ poles/ pins | 3~12 |
Pitch | 4.20mm | Certificate | ROHS, UL, HF |
Descriptions:
4.2mm pitch, be equal to Molex Mini-Fit 5559 connectors, mates with 39-01-4030 receptacle housing
With Positive locking: easy to operate thumb latch assures connectors are fully mated. Positive locking prevents accidental unmating.
Availabe in Available in UL94V-0, V-2, Ideal for many applications to meet global material requirements
Specifications:
Housing | Equivalent of Molex Micro-Fit 5559 39014032 plug housing |
Crimp terminal | 43030 Male and female, tin plated |
Header/ wafer | 39-30-3055 or 5569-05A4 Vertical/ Right angle |
Pitch Centerline | 4.2mm |
Circuits/ poles/ pins | 3~12 |
Number of Rows | Single or Dual |
Current rating | 5A AC, DC |
Voltage rating | 250V, AC, DC |
Wire range | AWG20~24 |
Application:
Data/ Communications:
Copiers
Office equipment
Printers
Industrial
Food and beverage dispensers
Power Supplies Markets and Applications
Vending Machines
Automation equipment
Industrial networks
OEM wire harness, cable assemble orders are welcomed!
Tag :
surface mount connector
,
