Alternative Molex 51022 Board In Connectors For Printed Circuit Board 1.25MM
替代Molex公司51022板连接器印刷电路板1.25MM
详细信息
| 性别： | 男 | 颜色： | 自然 |
替代Molex公司51022板连接器印刷电路板，1.25MM
快速详细信息：
名称 | 板连接器 | 应用 | 电源，PCB，信号 |
连接器 | 另类莫仕51022 | 电路/杆/销 | 2~16 |
沥青 | 1.25毫米 | 证书 | ROHS，UL，HF |
说明：
1.25mm细板房屋，电路板的压接端子
他们可以等于Molex公司，JST，Civilux，JAE，AMP，TYCO等著名零部件。
技术参数：
连接器 | 更换51022压接外壳连接器和50061和50080 |
终奌站 | 顶进入（平角），侧面插入（直角） |
电路/杆/销 | 2~16 |
行数 | 单 |
额定电流 | 1A AC，DC |
额定电压 | 30V，AC，DC |
电线范围 | AWG26〜30 |
应用：
印刷电路板，信号跳线; 高功率解决方案，RAILWAYPRODS等工业。
如果你不能找到部件号在这里，请联系我们，或发送您的图纸或部件号。
OEM样品或订单欢迎！
标签 :
板连接器
,
电路板连接器
Detailed Product Description
| Gender: | Male | Color: | Natural |
Alternative Molex 51022 Board In Connector For Printed Circuit Board , 1.25MM
Quick Detail:
Name | Board In Connector | Application | Power, PCB, Signal |
Connector | Alternative Molex 51022 | Circuits/ poles/ pins | 2~16 |
Pitch | 1.25mm | Certificate | ROHS, UL, HF |
Descriptions:

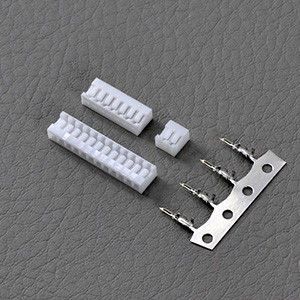

1.25mm pitch board-in housing, Board-in crimp terminal
They can equal Molex, JST, Civilux, JAE, AMP, TYCO ect famous parts.
Specifications:
Connector | Replace 51022 crimp housing connector and 50061 and 50080 |
Terminal | Top entry (straight angle) , Side entry (right angle) |
Circuits/ poles/ pins | 2~16 |
Number of Rows | Single |
Current rating | 1A AC, DC |
Voltage rating | 30V, AC, DC |
Wire range | AWG26~30 |
Application:
Printed Circuit Board, Signal-jumpers; high-power solutions, RAILWAYPRODS, etc. industrial.
If you can't find the part number here, please contact us or send your drawing or part number.
OEM sample or orders are welcomed!
Tag :
board in connector
,
