Replace JST VHR Wire To Board Motor Connectors 3.96mm 2 ~ 16 Poles
更换JST VHR线对板连接器电机23.96毫米〜16极
详细信息
| 颜色： | 白色 | 行： | 单 |
| OEM电缆总成： | 是 | 类型： | 可分离式压接式，紧凑型，带锁紧装置 |
| 印刷电路板安装方向： | 顶装式，侧 |
更换JST VHR线对板连接器外壳，终端，晶片，汽车，3.96
快速详细信息：
名称 | JST VH3.96毫米连接器 | 应用 | 信号，电源，和输出电路 |
连接器 | JST VH连接器 | 电路/杆/销 | 2~16 |
沥青 | 3.96毫米 | 证书 | ROHS，UL，HF |
技术参数：
住房 | JST VHR-等效（2〜16）N，带安全锁定装置 |
联系： | SVH-21T-P1.1，SVH-41T-P1.1，镀锡 |
罩头/晶圆 | B（2〜10）的P-VH顶条目，S（2〜10）的P-VH侧条目 |
间距中心线 | 3.96毫米 |
电路/杆/销 | 2~16 |
行数 | 单 |
额定电流 | 5A AC，DC |
额定电压 | 250V，AC，DC |
电线范围 | AWG18〜22 |
说明：
它是PC板小，经过现场验证的连接器; 它是可靠的，有一个大的电流承载能力。 它被广泛应用于很多类型的电源，信号，并出现在消费类电子产品的输出电路。
Eshine提供高端线束设计专业从事高信号，高密度和高速应用完全集成的解决方案
从电信的所有行业汽车上的电源和信号
电源/信号线束提供线对板和线对线选择，使多支治理结构。
线束生产我们的全自动，高速，散线，IDC端接设备，这样确保了卓越的品质和有竞争力的价格。
他们可以等于JST，Molex公司，JAE，AMP，TYCO，广濑，YEONHO，Civilux，SAMTECH等著名零部件。
应用：
印刷电路板组件，信号跳线; 高功率解决方案，计算机，笔记本电脑，液晶显示器，数码相机，PAD，LED灯，扫描仪，BT报警按钮，计价器，指纹机，平板丰富多彩的电视，电源电子通讯，商务机，通讯，家电，医疗 设备，手机，安全系统，汽车，ATM机，喷绘，MFP / LBP，投影仪，RAILWAYPRODS等工业。
如果你不能找到部件号在这里，请联系我们，或发送您的图纸或部件号。
Eshine也可以向您推荐一些优秀的线束总成供应商，为您更专业的需求。 只是奉劝以下信息，或发送您的图表。
类型的连接器：
线材规格：AWG
UL风格：
另一端：
组装连接器
完成者带/镀锡板：
半条/天盘：
欢迎OEM订单！
标签 :
PCB连接器线对板
,
莫仕微型飞度连接器
Detailed Product Description
| Color: | White | Row: | Single |
| OEM Cable Assy: | Yes | Type: | Disconnectable Type Crimp Style, Compact Type, With Locking Device |
| PC Board Mounting Direction: | Top Entry, Side Entry |

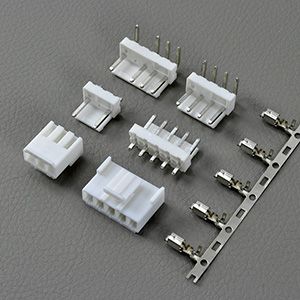

Replace JST VHR Wire To Board Connectors Housing, Terminal, Wafer For Motor, 3.96
Quick Detail:
Name | JST VH 3.96mm connector | Application | signal, power supply, and output circuits |
Connector | JST VH connector | Circuits/ poles/ pins | 2~16 |
Pitch | 3.96mm | Certificate | ROHS, UL, HF |
Specifications:
Housing | Equivalent of JST VHR- (2~16) N, with secure locking device |
Contact: | SVH-21T-P1.1, SVH-41T-P1.1, tin plated |
Shrouded Header/ wafer | B (2~10) P-VH Top entry, S (2~10) P-VH Side entry |
Pitch Centerline | 3.96mm |
Circuits/ poles/ pins | 2~16 |
Number of Rows | Single |
Current rating | 5A AC, DC |
Voltage rating | 250V, AC, DC |
Wire range | AWG18~22 |
Descriptions:
It is small, field-proven connector for PC boards; it's reliable and has a large current carrying capacity. It is widely used in much kind of power supply, signal, and output circuits that appear in consumer electronic products.
Eshine offers high-end harness designs specializing in high-signal, high-density and high-speed applications for fully integrated solutions
in all industries from telecommunications to automotives power and signal
The power/ signal harnesses offer wire-to-board and wire-to-wire options and enable multi-branch harnessing configurations.
Wire harnesses are produced on our fully automatic, high speed, discrete wire, IDC termination machines which assure superior quality and competitive prices.
They can be equal JST, Molex, JAE, AMP, TYCO, Hirose, Yeonho, Civilux, Samtech ect famous parts.
Application:
PCB assemblies, Signal-jumpers; high-power solutions, Computers, Notebook PC, LCD, Digital camera, PAD, Led lamp, Scanner, BT alarm button, taximeter, Fingerprint machine, flat colorful TV, power source for electronic communication, Business machine, Telecommunications, Home appliances, Medical equipment, Cell phone, Security systems, Car, ATM Machines, Inkjet, MFP/ LBP, Projector, RAILWAYPRODS, etc. industrial.
If you can't find the part number here, please contact us or send your drawing or part number.
Eshine can also refer you to a number of excellent harness assembly suppliers for your more specialized needs. Just advise info below or send your diagram.
Type connector:
Wire Specs: AWG
UL Style:
Other end:
Assembly connector
Completer strip/ Tin plate:
Semi Strip/ Tin plate:
OEM orders are welcomed!
