Equivalent JAE IL-G VTR Wire To Board Connectors Housing Header Crimp Pins 098'
等效JAE IL-G VTR线对板连接器外壳头压接销098'
详细信息
| 颜色： | 橙 | 设计： | 摩擦锁 |
| OEM电缆总成： | 是 | 类型： | 半自动 |
| 印刷电路板安装方向： | 通孔直角 | 包： | 软管包装或卷筒 |
等效JAE IL-G VTR线对板连接器外壳头压接销098'
快速详细信息：
名称 | JAE IL-S PCB对电缆压接式连接器 | 应用 | 信号，电力线对板 |
连接器 | 插座，接触，排针 | 电路/杆/销 | 2~15 |
触点间距 | 0.098“的2.5mm | 证书 | ROHS，UL，HF |
技术参数：
插座外壳 | IL-G-（2-15）S-S3C2插座外壳 |
插座接触 | IL-G-C2-SC-10000插座接触锡铅镀 |
排针/硅片 | S / A：IL-G-（2〜15）P-S3T2-EF; R / A：IL-G-（2〜15）P-S3L2-EF |
间距中心线 | 2.5毫米（.098“） |
电路/杆/销 | 2-15 |
行数 | 单 |
额定电流 | 3A AC，DC |
额定电压 | 300V，AC，DC |
电线范围 | AWG22〜28 |
说明：
薄型：10毫米（0.394“）的总高度队友直连接
摩擦锁定机制
错配，防止结构
防止焊焊剂污染
它们可以取代JAE（日本航空电子），HRS，莫仕，Digi-Key询问，TE AMP，TYCO JST，YEONHO，Civilux，SAMTECH等著名零部件。
应用：
理想的录像机，电视，音响/ OA设备，计算机，测量仪器，LED灯，电信和自动售货机。
如果你不能找到部件号在这里，请联系我们，或发送您的绘图或部分n无。
OEM LVDS电缆或电线hanresses组件来样订货，欢迎！
标签 :
表面安装连接器
,
PCB连接器线对板
Detailed Product Description
| Color: | Orange | Design: | Friction Lock |
| OEM Cable Assy: | Yes | Type: | Semi-automatic |
| PC Board Mounting Direction: | Through Hole Right Angle | Package: | Tube Packaging Or Reel |

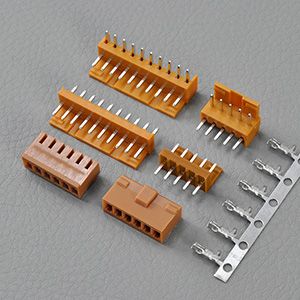

Equivalent JAE IL-G VTR Wire To Board Connectors Housing Header Crimp Pins 098'
Quick Detail:
Name | JAE IL-S PCB-to-cable crimp type connectors | Application | Signal, Power Wire–to-Board |
Connector | Socket, contact, pin header | Circuits/ poles/ pins | 2~15 |
Contact spacing | 0.098', 2.5mm | Certificate | ROHS, UL, HF |
Specifications:
Socket Housing | IL-G- (2-15) S-S3C2 socket housing |
Socket contact | IL-G-C2-SC-10000 socket contact Tin-lead plated |
Pin Header/ wafer | S/ A: IL-G- (2~15) P-S3T2-EF; R/ A: IL-G- (2~15) P-S3L2-EF |
Pitch Centerline | 2.5mm (.098') |
Circuits/ poles/ pins | 2-15 |
Number of Rows | Single |
Current rating | 3A AC, DC |
Voltage rating | 300V, AC, DC |
Wire range | AWG22~28 |
Descriptions:
Low profile: 10mm (0.394') total mate height for straight connection
Friction locking mechanism
Mismating-prevention structure
Prevents solder-flux contamination
They can be replacing JAE (Japan Aviation Electronics) , HRS, Molex, Digi-Key, TE AMP, TYCO JST, Yeonho, Civilux, Samtech ect famous parts.
Application:
Ideal for VTR, television, audio / OA equipment, computer, measuring equipment, Led light, telecommunications and vending machine.
If you can't find the part number here, please contact us or send your drawing or part nNo.
OEM LVDS cable or Wire hanresses assemblies sample orders are welcomed!
