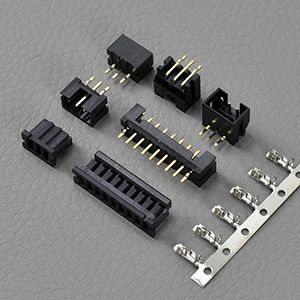

Rohs Copy Machine Wire To Board Connectors DF3 Housing Wafer Terminal 15Pins

符合Rohs复印机线对板连接器DF3房屋晶圆终端15针

0.1 USD

译文
原文

详细信息

颜色：	黑色	行：	单
OEM电缆总成：	是	类型：	卷曲，号，行
印刷电路板安装方向：	SMT，DIP，顶面入口，侧面入口	包：	软管包装或卷筒

符合Rohs复印机线对板连接器DF3房屋晶圆终端15针

快速详细信息：

名称	HRS DF3 PCB板对线连接器	应用	信号，电力线对板
连接器	插座，接触，排针	电路/杆/销	2~15
端子间距	2.0毫米	证书	ROHS，UL，HF

技术参数：

压接插座	DF3-（2〜15）的S-2C，543-0003-8黑
压接接触插座	DF3-22SCF，543-0235-3锡铅电镀或DF3-2428SCFC，543-0046-0镀金。
排针/硅片	直TH：DF3A-（2〜15）P-SDSA，543-0165-0 直角TH：DF3A-（2〜15）P-2SD，543-0190-4 直SMT：DF3A-（2〜15）P-2V，543-0121-4 直角SMT：DF3-（2〜15）P-2H，543-0107-3
间距中心线	1.25毫米
电路/杆/销	2~15
行数	单/双
额定电流	1A AC，DC
额定电压	100V，AC，DC
电线范围	AWG28〜32

说明：

对应电路板设计在很大的差异

•ID插槽（1）薄型设计与6.8毫米安装高度

（2）实现与DF11系列ID类型组合多线束的全自动压焊机。

•压接插座（1）薄型设计，安装高度7.5毫米。

（2）提供与足够的空间接触的压接面积，并固定稳定卷曲操作。

•插座（1）的板可以水平或垂直连接结合与直角接头的直头。

（2）对于水平方面，板对板的大小是6.6毫米低调。

（3）与在线插件兼容性允许插座的板上方设置的插座和电缆侧的插在主板电缆连接。

•排针（1）董事会预先固定扭结的治疗后针。

（2）风格采用了瓢，防sturborn箱式。

（3）对应于贴片的类型是即时拍摄，使用耐热的树脂。

这个贴片头配备了金属片，以防止在剥离焊点区域。

•在线插头（1）线插头consits两种类型，一种类型，它的空间利弊后，一直奉行的压接，并

其它采用面板锁定类型，它可以固定在面板上。

（2）内的线路适配器可插入和在线从两侧的ID插座。

它们可以取代广濑，莫仕，Digi-Key询问，TE AMP，TYCO JST，JAE，YEONHO，Civilux，SAMTECH等著名零部件。

应用：

商务设备如复印机和打印机等。

如果你不能找到部件号在这里，请联系我们，或发送您的图纸或部件号。

OEM LVDS电缆或电线hanresses组件来样订货，欢迎！

标签 :

表面安装连接器

PCB连接器线对板

Detailed Product Description

Color:	Black	Row:	Single
OEM Cable Assy:	Yes	Type:	Crimp , ID, in-line
PC Board Mounting Direction:	SMT, DIP, Top Entry, Side Entry	Package:	Tube Packaging Or Reel

Rohs Copy Machine Wire To Board Connectors DF3 Housing Wafer Terminal 15Pins

Quick Detail:

Name	HRS DF3 PCB-Board-to-Wire connector	Application	Signal, Power Wire–to-Board
Connector	Socket, contact, pin header	Circuits/ poles/ pins	2~15
Terminal Pitch	2.0mm	Certificate	ROHS, UL, HF

Specifications:

Crimping Socket	DF3- (2~15) S-2C, 543-0003-8 BLACK
Crimp contact for socket	DF3-22SCF, 543-0235-3 Tin-lead plated or DF3-2428SCFC, 543-0046-0 gold plated.
Pin Header/ wafer	Straight TH: DF3A- (2~15) P-SDSA, 543-0165-0 Right angle TH: DF3A- (2~15) P-2SD, 543-0190-4 Straight SMT: DF3A- (2~15) P-2V, 543-0121-4 Right angle SMT: DF3- (2~15) P-2H, 543-0107-3
Pitch Centerline	1.25mm
Circuits/ poles/ pins	2~15
Number of Rows	Single/ double
Current rating	1A AC, DC
Voltage rating	100V, AC, DC
Wire range	AWG28~32

Descriptions:

Correspond to Board Design in Wide Variation

•ID Socket (1) Low profile design with the mounting height of 6.8mm

(2) Achieves the multi-harness by the full automatic ID machine in combination with the DF11 series ID type.

•Crimp Socket (1) Low profile design with mounting height 7.5mm.

(2) Provide the contact crimping area with the sufficient space, and secures the stable crimping operation.

•Receptacle (1) The board can be connected horizontally or vertically in combination with the straight header with the right angle header.

(2) For horizontal connection, the board to board size is the low profile of 6.6mm.

(3) Compatibility with the in-line plug allows the receptacle to set the board side to the receptacle and the cable side to the plug in the board to cable connection.

•Pin Header (1) The board pre-fixed kink is treated with the post pin.

(2) The style employs a scoop-proof and sturborn box type.

(3) The type corresponding to SMT is avilable, using the heat-proof resin.

This SMT header is equipped with the metal tab to prevent peeling in the solder joint area.

•In-line Plug (1) The crimping in-line plug consits of two types, one type, which has pursued after space merits, and

the other employs the panel lock type, which can be fixed to the panel.

(2) The in-line adapter is available to insert and in-line the ID socket from both sides.

They can be replacing Hirose, Molex, Digi-Key, TE AMP, TYCO JST, JAE, Yeonho, Civilux, Samtech ect famous parts.

Application:

Business equipment such as copy machine and printer etc.

If you can't find the part number here, please contact us or send your drawing or part number.

OEM LVDS cable or Wire hanresses assemblies sample orders are welcomed!
