JAE IL-Z Wire To Board Header Socket Contact Connectors For Mobile Terminal
JAE IL-Z线对板头插座触点连接的移动终端
详细信息
| 颜色： | 橙 | 行： | 单 |
| OEM电缆总成： | 是 | 类型： | 随着金属压紧两侧 |
| 印刷电路板安装方向： | 通孔侧面插入 | 包： | 软管包装或卷筒 |
JAE IL-Z线对板头插座触点连接的移动终端
快速详细信息：
名称 | JAE IL-Z的PCB板对线连接器 | 应用 | 信号，电力线对板 |
连接器 | 插座，接触，排针 | 电路/杆/销 | 2~15 |
端子间距 | 1.25毫米 | 证书 | ROHS，UL，HF |
技术参数：
压着房屋 | IL-Z-（2-15）的S-S125C3插座外壳 |
压接接触插座 | IL-Z-C3-A-15000插座接触锡铅镀 |
排针/硅片 | R / A TH：IL-Z-15P-S125L3-E，R / ASMT：IL-Z（2〜15）PL-SMTYER1500 |
间距中心线 | 1.25毫米 |
电路/杆/销 | 2-15 |
行数 | 单 |
额定电流 | 1A AC，DC |
额定电压 | 100V，AC，DC |
电线范围 | AWG28〜32 |
说明：
1.25mm细，单排，卷曲
`薄型和超薄：3.45毫米高高在上板。
`压接式电缆端容易终止。
`销头：直角SMT适用于自动包装。
设计，两侧金属压紧，防止在自动包装浮动起来，在车上提高保留。
与壁四面框型防止错配，不利的影响，并掉下由于由插座加捻。
`挡光; 老板在插座外壳的中心接合与锁定孔在销头部壁。
它们可以取代JAE（日本航空电子），HRS，莫仕，Digi-Key询问，TE AMP，TYCO JST，YEONHO，Civilux，SAMTECH等著名零部件。
应用：
移动终端，小型业务类型设备，注意PC等各种消费电子设备。 LED灯
如果你不能找到部件号在这里，请联系我们，或发送您的图纸或部件号。
OEM LVDS电缆或电线hanresses组件来样订货，欢迎！
标签 :
表面安装连接器
,
PCB连接器线对板
Detailed Product Description
| Color: | Orange | Row: | Single |
| OEM Cable Assy: | Yes | Type: | With Metallic Hold-down On Both Sides |
| PC Board Mounting Direction: | Through Hole Side Entry | Package: | Tube Packaging Or Reel |

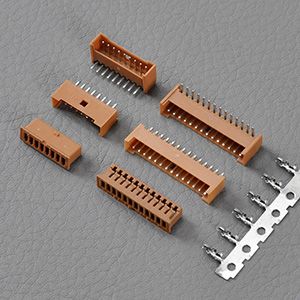

JAE IL-Z Wire To Board Header Socket Contact Connectors For Mobile Terminal
Quick Detail:
Name | JAE IL-Z PCB-Board-to-Wire connector | Application | Signal, Power Wire–to-Board |
Connector | Socket, contact, pin header | Circuits/ poles/ pins | 2~15 |
Terminal Pitch | 1.25mm | Certificate | ROHS, UL, HF |
Specifications:
Crimping Housing | IL-Z- (2-15) S-S125C3 socket housing |
Crimp contact for socket | IL-Z-C3-A-15000 socket contact Tin-lead plated |
Pin Header/ wafer | R/ A TH: IL-Z-15P-S125L3-E, R/ ASMT: IL-Z (2~15) PL-SMTYER1500 |
Pitch Centerline | 1.25mm |
Circuits/ poles/ pins | 2-15 |
Number of Rows | Single |
Current rating | 1A AC, DC |
Voltage rating | 100V, AC, DC |
Wire range | AWG28~32 |
Descriptions:
1.25mm pitch, single row, crimp
` Low-profile and thin: 3.45mm high above board.
` Crimp type cable-side easy to terminate.
` Pin headers: Right angle SMT suited for automatic packaging.
Designed with metallic hold-down on both sides, preventing floating-up during automatic packaging and improves retention on board.
Box type with wall on four sides prevents mis-mating, unfavorable effect, and falling down due to twisting by the socket.
` Light locking; the boss at the center of socket housing engages with the lock hole in the pin header wall.
They can be replacing JAE (Japan Aviation Electronics) , HRS, Molex, Digi-Key, TE AMP, TYCO JST, Yeonho, Civilux, Samtech ect famous parts.
Application:
Mobile terminal, Miniature type business equipment, Note PC, and other various consumer equipment. LED lamp
If you can't find the part number here, please contact us or send your drawing or part number.
OEM LVDS cable or Wire hanresses assemblies sample orders are welcomed!
Tag :
surface mount connector
,
