Scanner PCB Board Connectors Equal JST PHD 2.0MM Disconnectable Crimp Connector
扫描仪PCB板连接器等于JST PHD 2.0MM可撤离压接连接器
详细信息
扫描仪PCB板连接器等于JST PHD 2.0MM可撤离压接连接器
快速详细信息：
名称 | JST PHD2.0毫米连接器 | 应用 | 信号，电源，和输出电路 |
连接器 | JST PHD连接器 | 电路/杆/销 | 2~16 |
沥青 | 2.0毫米 | 证书 | ROHS，UL，HF |
说明：
全屏蔽头
可靠的接触
这是一个2.0mm间距，压接风格，双排，线对板连接器。 它是专为满足对高密度和低轮廓的连接的需求。
紧凑
它被广泛应用于很多类型的电源，信号，并出现在消费类电子产品的输出电路。
他们可以等于JST，Molex公司，JAE，AMP，TYCO，广濑，YEONHO，Civilux，SAMTECH等著名零部件。
技术参数：
住房 | JST PHDR-等效（08〜34）VS |
联系： | SPHD-002T-P0.5，镀锡 |
罩头/晶圆 | B（8〜34）B-PHDSS上装，侧装; DIP乙（8〜34）的B-PHDSS-B Civilux CI0112P1HDL |
间距中心线 | 2.0毫米 |
电路/杆/销 | 2~16 |
行数 | 单 |
额定电流 | 5A AC，DC |
额定电压 | 250V，AC，DC |
电线范围 | AWG24〜28 |
应用：
扫描仪，LED灯条，LED路灯，LED灯，PDP，LCD，小型电子设备，机器人，高功率的解决方案，计算机，笔记本电脑，液晶显示器等产业。
如果你不能找到部件号在这里，请联系eshine销售。
标签 :
表面安装连接器
,
PCB连接器线对板
Detailed Product Description

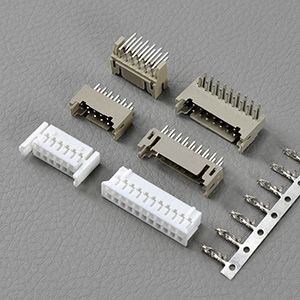

Scanner PCB Board Connectors Equal JST PHD 2.0MM Disconnectable Crimp Connector
Quick Detail:
Name | JST PHD 2.0mm connector | Application | signal, power supply, and output circuits |
Connector | JST PHD connector | Circuits/ poles/ pins | 2~16 |
Pitch | 2.0mm | Certificate | ROHS, UL, HF |
Descriptions:
Fully shrouded header
Reliable contact
This is a 2.0mm pitch, crimp style, double-row, wire-to-board connector. It is designed to meet the demand for high-density and low-profile connection.
Compact
It is widely used in much kind of power supply, signal, and output circuits that appear in consumer electronic products.
They can be equal JST, Molex, JAE, AMP, TYCO, Hirose, Yeonho, Civilux, Samtech ect famous parts.
Specifications:
Housing | Equivalent of JST PHDR- (08~34) VS |
Contact: | SPHD-002T-P0.5, tin plated |
Shrouded Header/ wafer | B (8~34) B-PHDSS Top entry, Side entry; DIP B (8~34) B-PHDSS-B, Civilux CI0112P1HDL |
Pitch Centerline | 2.0mm |
Circuits/ poles/ pins | 2~16 |
Number of Rows | Single |
Current rating | 5A AC, DC |
Voltage rating | 250V, AC, DC |
Wire range | AWG24~28 |
Application:
Scanner, LED strip, Led lights, Led lamps, PDP, LCD, small electronics equipments, Robotics, high-power solutions, Computers, Notebook PC, LCD, etc. industrial.
If you can't find the part number here, please contact eshine sales.
