250V Harness Wire To Wire Connectors SM2.5mm With 2 ~ 16 Pins For Taximeter
250V线束线对线连接器SM2.5mm用2〜16引脚为出租车计价器
详细信息
| 颜色： | 黑色/自然 | 锁： | 臂锁 |
| 触点类型： | 线对线 | 类型： | 可拆卸式压接式 |
| 沥青： | 2.5mm间距 | 连接： | 插头和插座 |
SM2.5毫米男/女线对线连接2〜16引脚为出租车计价器
快速详细信息：
名称 | JST SM插头和插座 | 应用 | Power，线对线，PCB |
连接器 | JST SM系列 | 电路/杆/销 | 2~16 |
沥青 | 2.5毫米 | 证书 | ROHS，UL，HF |
技术参数：
住房 | JST SM SMR-等效（02〜18）B插孔房屋，SMP-（02〜18）B（N）C插头外壳 |
压接端子 | 脚接触：SYM-001T-P0.6，插座接点：SHF-001T-0.8BS男，女，镀锡 |
间距中心线 | 2.5毫米 |
电路/杆/销 | 2~16 |
行数 | 单 |
额定电流 | 3A AC，DC |
额定电压 | 250V，AC，DC |
电线范围 | AWG22〜28 |
应用：
印刷电路板组件，信号跳线; 高功率解决方案，计算机，笔记本电脑，液晶显示器，数码相机，PAD，LED灯，扫描仪，BT报警按钮，计价器，指纹机，平板丰富多彩的电视，电源电子通讯，商务机，通讯，家电，医疗 设备，手机，安全系统，汽车，ATM机，喷绘，MFP / LBP，投影仪，RAILWAYPRODS等工业。
如果你不能找到部件号在这里，请联系我们，或发送您的图纸或部件号。
说明：
1）臂锁：安全锁装置，高接触压力和高度可靠的住房建设
2）可安装在各种厚度，而无需使用工具面板。
3）联系人由壳体壁分别包围。
它们可以是平等的Molex公司，JST，JAE，AMP，TYCO，广濑，YEONHO，Civilux，SAMTECH等著名零部件。
Eshine也可以向您推荐一些优秀的线束总成供应商，为您更专业的需求。 只是奉劝以下信息，或发送您的图表。
类型的连接器：
线材规格：AWG
UL风格：
另一端：
组装连接器
完成者带/镀锡板：
半条/天盘：
欢迎OEM订单！
标签 :
电子线连接器
,
线对板连接器类型
Detailed Product Description
| Color: | Black/ Nature | Lock: | Arm Lock |
| Contact Type: | Wire-to-wire | Type: | Disconnectable Crimp Style |
| Pitch: | 2.5mm Pitch | Connection: | Plug And Receptacle |

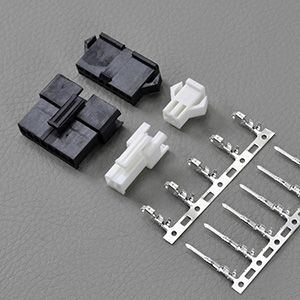

SM2.5 mm Male / Female Wire To Wire Connector With 2 ~ 16 Pins For Taximeter
Quick Detail:
Name | JST SM male and female connector | Application | Power, Wire-to-Wire, PCB |
Connector | JST SM serial | Circuits/ poles/ pins | 2~16 |
Pitch | 2.5mm | Certificate | ROHS, UL, HF |
Specifications:
Housing | Equivalent of JST SM SMR- (02~18) B receptacle Housing, SMP- (02~18) B (N) C plug housing |
Crimp terminal | pin contact: SYM-001T-P0.6, Socket contact: SHF-001T-0.8BS Male and female, tin plated |
Pitch Centerline | 2.5mm |
Circuits/ poles/ pins | 2~16 |
Number of Rows | Single |
Current rating | 3A AC, DC |
Voltage rating | 250V, AC, DC |
Wire range | AWG22~28 |
Application:
PCB assemblies, Signal-jumpers; high-power solutions, Computers, Notebook PC, LCD, Digital camera, PAD, Led lamp, Scanner, BT alarm button, taximeter, Fingerprint machine, flat colorful TV, power source for electronic communication, Business machine, Telecommunications, Home appliances, Medical equipment, Cell phone, Security systems, Car, ATM Machines, Inkjet, MFP/ LBP, Projector, RAILWAYPRODS, etc. industrial.
If you can't find the part number here, please contact us or send your drawing or part number.
Descriptions:
1) Arm Lock: secure lock mechanism, High contact pressure and highly reliable housing construction
2) Mountable on panels of various thickness without using tools.
3) The contacts are individually surrounded by housing walls.
They can be equal Molex, JST, JAE, AMP, TYCO, Hirose, Yeonho, Civilux, Samtech ect famous parts.
Eshine can also refer you to a number of excellent harness assembly suppliers for your more specialized needs. Just advise info below or send your diagram.
Type connector:
Wire Specs: AWG
UL Style:
Other end:
Assembly connector
Completer strip/ Tin plate:
Semi Strip/ Tin plate:
OEM orders are welcomed!
