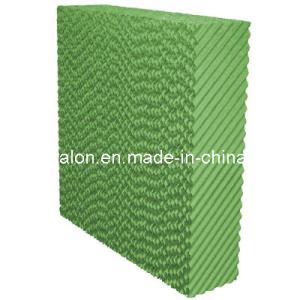

Cooling Pad for Poultry and Greenhouse
散热垫的家禽和温室
议价
加入意向基本信息。
产品型号：SHM-CP1010
认证：SGS，CCC
成色：全新
类型：水冷
冷却方式：间接冷却
主要市场：全球
产品描述
散热垫纸的质量：上品，纯纸浆
散热垫的散热系统的核心。 它是做出来的宝贵纤维素纸与蜜蜂，蜂巢结构特殊的技术处理，以最大限度地提高被过路靠垫壁水和空气之间的接触面。
特点：该垫的特点之一是大的蒸发冷却效率在80％以上
焊盘不包含表面活性剂，吸水自然扩散以高速持久效力。 一滴水将是4-5秒内完全扩散。 自然吸水高度为60-70mm / 5分钟，200毫米/ 1.5小时。
优点：垫是无毒，无害，绿色，安全，节能，环保型，经济适用为好。
散热垫的散热系统的核心。 它是做出来的宝贵纤维素纸与蜜蜂，蜂巢结构特殊的技术处理，以最大限度地提高被过路靠垫壁水和空气之间的接触面。
特点：该垫的特点之一是大的蒸发冷却效率在80％以上
焊盘不包含表面活性剂，吸水自然扩散以高速持久效力。 一滴水将是4-5秒内完全扩散。 自然吸水高度为60-70mm / 5分钟，200毫米/ 1.5小时。
优点：垫是无毒，无害，绿色，安全，节能，环保型，经济适用为好。
| 7090（PAD1） | 5090（PAD2） | |
| 高（mm） | 1500, 1800, 2000 | 1500, 1800, 2000 |
| 宽（mm） | 600, 300 | 600, 300 |
| D（毫米） | 100, 150, 200 | 100, 150, 200 |
| 高（mm） | 7 | 5 |
| （*）的跨越角 | 45 | 45 |
| B（*）跨越角 | 45 | 45 |
Basic Info.
Model NO.: SHM-CP1010
Certification: SGS, CCC
Condition: New
Type: Water-Cooled
Cooling Method: Indirect Cooling
Export Markets: Global
Product Description
Cooling pad Paper quality: Top Grade, pure paper pulp
The Cooling Pad is the core of cooling system. It is made out of precious cellulose paper with special technique processing in a bee-hive structure in order to maximize the contact surface between water and air that is crossing the pad wall.
Feature: The pads one of features is big evaporation with cooling efficiency above 80%
The pads contains no surface active agents, absorbing water naturally, diffusing at a high speed with lasting effectiveness. A drop of water will be completely diffusing within 4-5 seconds. Height of natural water absorption is 60-70mm/ 5 min, 200mm/ 1.5h.
Advantage: The pads is non-toxic, harmless, green, safe, energy efficient, environmental protecting, economic and applicable as well.
The Cooling Pad is the core of cooling system. It is made out of precious cellulose paper with special technique processing in a bee-hive structure in order to maximize the contact surface between water and air that is crossing the pad wall.
Feature: The pads one of features is big evaporation with cooling efficiency above 80%
The pads contains no surface active agents, absorbing water naturally, diffusing at a high speed with lasting effectiveness. A drop of water will be completely diffusing within 4-5 seconds. Height of natural water absorption is 60-70mm/ 5 min, 200mm/ 1.5h.
Advantage: The pads is non-toxic, harmless, green, safe, energy efficient, environmental protecting, economic and applicable as well.
| 7090 (pad1) | 5090 (pad2) | |
| H (mm) | 1500, 1800, 2000 | 1500, 1800, 2000 |
| W (mm) | 600, 300 | 600, 300 |
| D (mm) | 100, 150, 200 | 100, 150, 200 |
| H (mm) | 7 | 5 |
| a (*) across angle | 45 | 45 |
| b (*) across angle | 45 | 45 |
