Poultry Wet Cooling Pad \Poultry Farm\ Greenhouse \
家禽湿式冷却垫/家禽农场/温室/
基本信息。
产品型号：SHM-CP
认证：CE
成色：全新
冷却方式：直冷
用途：适用于空调
出口市场：东南亚，非洲，大洋洲，中东，东亚
产品描述
规格：1500/1800 /2000毫米* 600 /300毫米* 100/150 /200毫米
纸张质量：上品，纯纸浆;
家禽散热垫是冷却系统的核心。 它是由选自贵金属纤维素纸用特殊的技术处理在蜂蜂巢结构，以便最大限度地水和空气是横过靠垫壁之间的接触表面;
特点：该垫的特点之一是大的蒸发冷却效率在80％以上，瓦楞纸与空间交叉连接技术，高吸收，高防水，防霉，使用寿命长;
垫包含无表面活性剂，吸水自然扩散以高速持久效力。 一滴水将是4-5秒内完全扩散。 自然吸水高度为60-70mm / 5分钟，200毫米/ 1.5小时;
优点：本垫不含苯酚和类似的化学物质，其是皮肤刺激性，它是无毒，无害，绿色，安全，节能，环境的保护，经济和适用为好。
纸张质量：上品，纯纸浆;
家禽散热垫是冷却系统的核心。 它是由选自贵金属纤维素纸用特殊的技术处理在蜂蜂巢结构，以便最大限度地水和空气是横过靠垫壁之间的接触表面;
特点：该垫的特点之一是大的蒸发冷却效率在80％以上，瓦楞纸与空间交叉连接技术，高吸收，高防水，防霉，使用寿命长;
垫包含无表面活性剂，吸水自然扩散以高速持久效力。 一滴水将是4-5秒内完全扩散。 自然吸水高度为60-70mm / 5分钟，200毫米/ 1.5小时;
优点：本垫不含苯酚和类似的化学物质，其是皮肤刺激性，它是无毒，无害，绿色，安全，节能，环境的保护，经济和适用为好。
| PAD1 | PAD2 | |
| 高（mm） | 1500, 1800, 2000 | 1500, 1800, 2000 |
| 宽（mm） | 600, 300 | 600, 300 |
| D（毫米） | 100, 150, 200 | 100, 150, 200 |
| 高（mm） | 7 | 5 |
| （*）的跨越角 | 45 | 45 |
| B（*）跨越角 | 45 | 45 |
Basic Info.
Model NO.: SHM-CP
Certification: CE
Condition: New
Cooling Method: Direct Cooling
Usage: for Air Conditioner
Export Markets: Southeast Asia, Africa, Oceania, Mid East, Eastern Asia
Product Description
Spec: 1500/1800/2000mm*600/300mm*100/150/200mm
Paper quality: Top Grade, pure paper pulp;

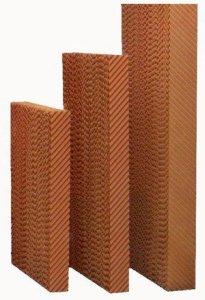

The poultry cooling Pad is the core of cooling system. It is made out of precious cellulose paper with special technique processing in a bee-hive structure in order to maximize the contact surface between water and air that is crossing the pad wall;
Feature: The pads one of features is big evaporation with cooling efficiency above 80%, Corrugated paper with the spatial crossing linking technology, high absorbability, high water resistant, anti-mildew and long service life;
The pads contain no surface active agents, absorbing water naturally, diffusing at a high speed with lasting effectiveness. A drop of water will be completely diffusing within 4-5 seconds. Height of natural water absorption is 60-70mm/ 5 min, 200mm/ 1.5h;
Advantage: The pad does not contain phenol and like chemical substance which are irritant to the skin, it is non-toxic, harmless, green, safe, energy saving, environmental protecting, economic and applicable as well.
Paper quality: Top Grade, pure paper pulp;
The poultry cooling Pad is the core of cooling system. It is made out of precious cellulose paper with special technique processing in a bee-hive structure in order to maximize the contact surface between water and air that is crossing the pad wall;
Feature: The pads one of features is big evaporation with cooling efficiency above 80%, Corrugated paper with the spatial crossing linking technology, high absorbability, high water resistant, anti-mildew and long service life;
The pads contain no surface active agents, absorbing water naturally, diffusing at a high speed with lasting effectiveness. A drop of water will be completely diffusing within 4-5 seconds. Height of natural water absorption is 60-70mm/ 5 min, 200mm/ 1.5h;
Advantage: The pad does not contain phenol and like chemical substance which are irritant to the skin, it is non-toxic, harmless, green, safe, energy saving, environmental protecting, economic and applicable as well.
| PAD1 | PAD2 | |
| H (mm) | 1500, 1800, 2000 | 1500, 1800, 2000 |
| W (mm) | 600, 300 | 600, 300 |
| D (mm) | 100, 150, 200 | 100, 150, 200 |
| H (mm) | 7 | 5 |
| a (*) across angle | 45 | 45 |
| b (*) across angle | 45 | 45 |
