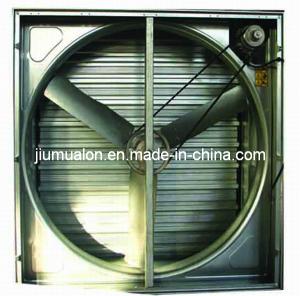

Industrail Fan for Industry, Factory and Greenhouse
工业风扇工业、 工厂和温室
议价
加入意向基本信息。
型号: QOMA CT / 1000年和 QOMA CT / 1380年
电源: 电动
应用: 温室、 Licestock、 家禽房子和车间。
认证: ISO
功率: 750W 或 1100W
材质: 不锈钢
安装方式: 挂在墙上
类型: 通风风扇
冷却方式: 直接冷却
出口市场: 全球
产品描述
工业风扇工业、 温室和仓库的技术数据
扇框: 热镀锌板框架
板料厚度为 1 毫米 (左和右是 0.8 毫米)
津克厚度是 275 G / M2
风扇叶片: 热镀锌板
没有风扇叶片: 3
风机叶片 RPM: 460r / min
风机叶片厚度: 2.00 毫米
风扇叶片表面光洁度等级。: BA
所有的叶片通过平衡测试后组装，其中
可以在生活的使用寿命期间保证稳定运行和甚至气流。
风扇电机: 高高效、 节能、 西门子电机 (别人因此电机)。
风扇电机防护等级: IP55
风扇电机的绝缘等级: F
风扇电机技术数据是: 1.1 k w 或 0.75 k w，380V，50hz，RPM 是 1440r / min
风扇皮带: 日本三菱品牌
风扇离心系统: 采用高质量的尼龙 PA66 确保
使用寿命长。紧固件的离心
所有的系统都是铜铆钉，耐磨和
无锈灵活
风扇快门: 高强度镀锌钢板，中间快门厚度是 1.5 m m，还有 0.8 m m，与离心的系统，可以确保他快门开启角度为 90 度的条件下确保最低空气阻力和最大风量。当关闭时，密封可以有效阻挡光和风进家禽农场的房子。
免费维护: 整个使用期间是所有免费维修
性能: 冷却垫与较好的效果一起使用，它用于纵向通风
扇框: 热镀锌板框架
板料厚度为 1 毫米 (左和右是 0.8 毫米)
津克厚度是 275 G / M2
风扇叶片: 热镀锌板
没有风扇叶片: 3
风机叶片 RPM: 460r / min
风机叶片厚度: 2.00 毫米
风扇叶片表面光洁度等级。: BA
所有的叶片通过平衡测试后组装，其中
可以在生活的使用寿命期间保证稳定运行和甚至气流。
风扇电机: 高高效、 节能、 西门子电机 (别人因此电机)。
风扇电机防护等级: IP55
风扇电机的绝缘等级: F
风扇电机技术数据是: 1.1 k w 或 0.75 k w，380V，50hz，RPM 是 1440r / min
风扇皮带: 日本三菱品牌
风扇离心系统: 采用高质量的尼龙 PA66 确保
使用寿命长。紧固件的离心
所有的系统都是铜铆钉，耐磨和
无锈灵活
风扇快门: 高强度镀锌钢板，中间快门厚度是 1.5 m m，还有 0.8 m m，与离心的系统，可以确保他快门开启角度为 90 度的条件下确保最低空气阻力和最大风量。当关闭时，密封可以有效阻挡光和风进家禽农场的房子。
免费维护: 整个使用期间是所有免费维修
性能: 冷却垫与较好的效果一起使用，它用于纵向通风
| 模型 | 叶片 / 毫米 | 频率 / HZ | 马达的转速 (r / min) | 容量 (立方米 / 小时) | 电力 / w | 噪音 (db) | 电压 / v | 尺寸 (毫米) |
| QOMA CT / 1000年 | 910 (36 英寸) | 50 | ≥ 1400 | 20800 | 750 | ≤ 64 | 380 | 1000 x 1000 x 450 |
| QOMA CT / 1380年 | 1270 (50 名) | 50 | ≥ 1400 | 43170 | 1100 | ≤ 64 | 380 | 1380 x 1380 x 450 |
Basic Info.
Model NO.: QOMA-CT/ 1000 AND QOMA-CT/ 1380
Power Supply: Electric
Application: Greenhouse, Licestock, Poulty House and Workshop.
Certification: ISO
Power: 750W or 1100W
Material: Stainless Steel
Installation: Wall Mounted
Type: Ventilation Fan
Cooling Method: Direct Cooling
Export Markets: Global
Product Description
THE TECHNICAL DATA OF INDUSTRIAL FAN FOR INDUSTRY, GREENHOUSE AND WAREHOUSE
Fan frame: Hot galvanized sheet frame
Sheet thickness is 1mm (left and right is 0.8mm)
Zink thickness is 275G/ M2
Fan blades: Hot galvanized sheet
Fan blades No: 3
Fan Blade RPM: 460r/ min
Fan blade Thickness: 2.00mm
Fan blade surface finish grade.: BA
Blades all pass the balance test after assembled, which
Can assure steady running and even airflow during the operational life span of the life.
Fan motor: The high efficient and energy-saving Simens motor (others motor accordingly ) .
Fan motor protection grade: IP55
Fan motor insulation class: F
Fan Motor technical data is: 1.1kw or 0.75kw, 380V, 50Hz, RPM is 1440r/ min
Fan belts: Japanese Mitsubishi brand
Fan centrifugal system: Adopt high quality nylon PA66 to ensure the
Long service life. The fasteners of centrifugal
System all are copper rivets, wear-resisting and
No rust, flexible
Fan shutter: High strength hot-galvanized steel sheet, The middle shutter thickness is 1.5mm, others are 0.8mm, with a centrifugal system which can ensure he shutter Opens with the angle of 90 degree under all the condition To ensure the lowest air resistance and biggest air volume. When closing, the sealing can efficiently block light and Wind into the poultry farm house.
Free maintenance: The whole use period is all free maintenance
Performance: Cooling pad used together with better effect, it is used for Longitudinal ventilation
Fan frame: Hot galvanized sheet frame
Sheet thickness is 1mm (left and right is 0.8mm)
Zink thickness is 275G/ M2
Fan blades: Hot galvanized sheet
Fan blades No: 3
Fan Blade RPM: 460r/ min
Fan blade Thickness: 2.00mm
Fan blade surface finish grade.: BA
Blades all pass the balance test after assembled, which
Can assure steady running and even airflow during the operational life span of the life.
Fan motor: The high efficient and energy-saving Simens motor (others motor accordingly ) .
Fan motor protection grade: IP55
Fan motor insulation class: F
Fan Motor technical data is: 1.1kw or 0.75kw, 380V, 50Hz, RPM is 1440r/ min
Fan belts: Japanese Mitsubishi brand
Fan centrifugal system: Adopt high quality nylon PA66 to ensure the
Long service life. The fasteners of centrifugal
System all are copper rivets, wear-resisting and
No rust, flexible
Fan shutter: High strength hot-galvanized steel sheet, The middle shutter thickness is 1.5mm, others are 0.8mm, with a centrifugal system which can ensure he shutter Opens with the angle of 90 degree under all the condition To ensure the lowest air resistance and biggest air volume. When closing, the sealing can efficiently block light and Wind into the poultry farm house.
Free maintenance: The whole use period is all free maintenance
Performance: Cooling pad used together with better effect, it is used for Longitudinal ventilation
| Model | Blade/ mm | Frequency/ HZ | Motor Speed (r/ min) | Capacity (cubic meters/ h) | power/ w | Noise (db) | Voltage/ v | Size (mm) |
| QOMA-CT/ 1000 | 910 (36in) | 50 | ≥ 1400 | 20800 | 750 | ≤ 64 | 380 | 1000x1000x450 |
| QOMA-CT/ 1380 | 1270 (50in) | 50 | ≥ 1400 | 43170 | 1100 | ≤ 64 | 380 | 1380x1380x450 |
