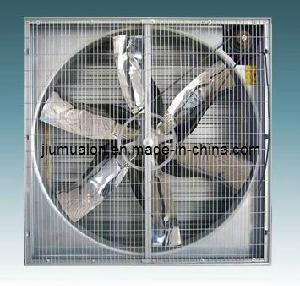

36' Exhaust Fan (SHM-2)
36'抽风机（SHM-2）
议价
加入意向基本信息。
产品型号：SHM-2
电源：电
适用范围：家用，工业，温室，Licestock，Poulty楼和车间。
远程控制：是的
计时器：是的
认证：CE，CCC
速度：1速度
功率：）300W
材质：不锈钢
安装方式：壁挂式
类型：通风机
尺寸：1000 * 1000 *450毫米
主要市场：全球
产品描述
36'exhaust风扇
尺寸：1000 * 1000 *450毫米
认证：ISO9001：2000
锯片直径：910毫米
汽车Speed≥1400R /分钟
气流：20800立方米/小时
功率：0.75千瓦
电压：380V
频率：50Hz
噪声小于64分贝
风扇框：热镀锌板架，钢板厚度为1.0mm，锌厚度为275G / M2
风扇叶片：6条德国进口镜面不锈钢刀片，刀片全部通过平衡测试组装后，风扇的使用寿命期间可以保证稳定运行，甚至气流。 RPM：460R /分钟，厚度：1.2毫米，叶片表面光洁度BA级
风扇电机：高效节能西门子电机，防护等级：IP55，绝缘等级：F，技术数据：1.1千瓦，380V，50HZ，每分钟转数为1440r /分钟
风扇皮带：日本三菱品牌
离心式风机系统：紧固件都是铜铆钉，采用高品质的尼龙PA66，耐磨，性能稳定的不生锈，灵活，使用寿命长。
范快门：高强度热镀锌钢板，具有离心系统和弹簧关闭系统安装，以确保在快门打开与下所有条件，并保证了空气阻力和最大风量最低90度。 当关闭时，密封可以有效阻挡光线和风进入禽舍，中东快门厚度为1.5mm，其他都是0.8毫米
免维护：整个使用期是全免费维修
性能：制冷效果也更好一起使用垫，它用于纵向通风。
尺寸：1000 * 1000 *450毫米
认证：ISO9001：2000
锯片直径：910毫米
汽车Speed≥1400R /分钟
气流：20800立方米/小时
功率：0.75千瓦
电压：380V
频率：50Hz
噪声小于64分贝
风扇框：热镀锌板架，钢板厚度为1.0mm，锌厚度为275G / M2
风扇叶片：6条德国进口镜面不锈钢刀片，刀片全部通过平衡测试组装后，风扇的使用寿命期间可以保证稳定运行，甚至气流。 RPM：460R /分钟，厚度：1.2毫米，叶片表面光洁度BA级
风扇电机：高效节能西门子电机，防护等级：IP55，绝缘等级：F，技术数据：1.1千瓦，380V，50HZ，每分钟转数为1440r /分钟
风扇皮带：日本三菱品牌
离心式风机系统：紧固件都是铜铆钉，采用高品质的尼龙PA66，耐磨，性能稳定的不生锈，灵活，使用寿命长。
范快门：高强度热镀锌钢板，具有离心系统和弹簧关闭系统安装，以确保在快门打开与下所有条件，并保证了空气阻力和最大风量最低90度。 当关闭时，密封可以有效阻挡光线和风进入禽舍，中东快门厚度为1.5mm，其他都是0.8毫米
免维护：整个使用期是全免费维修
性能：制冷效果也更好一起使用垫，它用于纵向通风。
Basic Info.
Model NO.: SHM-2
Power Supply: Electric
Application: Household, Industrial, Greenhouse, Licestock, Poulty House and Workshop.
Remote Controlled: Yes
Timer: Yes
Certification: CE, CCC
Speed: 1 Speed
Power: ) 300W
Material: Stainless Steel
Installation: Wall Mounted
Type: Ventilation Fan
Size: 1000*1000*450mm
Export Markets: Global
Product Description
36'exhaust fan
Size: 1000*1000*450 mm
Certificate: ISO9001: 2000
Blade diameter: 910mm
Motor Speed≥ 1400r/ min
Airflow: 20800m3/ h
Power: 0.75kw
Voltage: 380V
Frequency: 50Hz
Noise is less than 64dB
Fan frame: Hot galvanized sheet frame, sheet thickness is 1.0mm, zink thickness is 275G/ M2
Fan blades: 6pieces Germany-imported mirror face stainless steel blades, Blades all pass the balance test after assembled, which can assure steady running and even airflow during the service life of fans. RPM: 460r/ min, thickness: 1.2mm, blade surface finish BA grade
Fan motor: The high efficient and energy-saving Simens motor, protection grade: IP55, insulation class: F, technical data is: 1.1kw, 380V, 50Hz, RPM is 1440r/ min
Fan belts: Japanese Mitsubishi brand
Fan centrifugal system: The fasteners are all copper rivets, adopt high quality nylon PA66, wear-resistent no rust, flexible and long service life.
Fan shutter: High strength hot-galvanized steel sheet, installed with centrifugal system and spring closing system to ensure the shutter opens with 90 degree under all conditions and to ensure the lowest air resistance and biggest air volume. When closing, the sealing can efficiently block light and wind into the poultry house, Middle shutter thickness is 1.5mm, others are 0.8mm
Free maintenance: The whole use period is all free maintenance
Performance: Cooling pad used together with better effect, it is used for longitudinal ventilation.
Size: 1000*1000*450 mm
Certificate: ISO9001: 2000
Blade diameter: 910mm
Motor Speed≥ 1400r/ min
Airflow: 20800m3/ h
Power: 0.75kw
Voltage: 380V
Frequency: 50Hz
Noise is less than 64dB
Fan frame: Hot galvanized sheet frame, sheet thickness is 1.0mm, zink thickness is 275G/ M2
Fan blades: 6pieces Germany-imported mirror face stainless steel blades, Blades all pass the balance test after assembled, which can assure steady running and even airflow during the service life of fans. RPM: 460r/ min, thickness: 1.2mm, blade surface finish BA grade
Fan motor: The high efficient and energy-saving Simens motor, protection grade: IP55, insulation class: F, technical data is: 1.1kw, 380V, 50Hz, RPM is 1440r/ min
Fan belts: Japanese Mitsubishi brand
Fan centrifugal system: The fasteners are all copper rivets, adopt high quality nylon PA66, wear-resistent no rust, flexible and long service life.
Fan shutter: High strength hot-galvanized steel sheet, installed with centrifugal system and spring closing system to ensure the shutter opens with 90 degree under all conditions and to ensure the lowest air resistance and biggest air volume. When closing, the sealing can efficiently block light and wind into the poultry house, Middle shutter thickness is 1.5mm, others are 0.8mm
Free maintenance: The whole use period is all free maintenance
Performance: Cooling pad used together with better effect, it is used for longitudinal ventilation.
