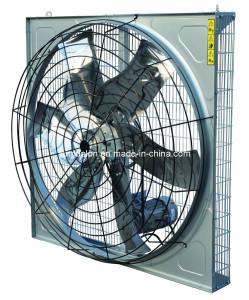

Hanging Fan \Poultry Farm \ Greenhouse Ventilation
挂扇/家禽农场/温室通风
基本信息。
型号：QOMA，HF1101
认证：SGS，CCC
电流类型：AC
安装：吊扇
刀片材质：不锈钢
用途：适用于空调
冷却方式：间接冷却
出口市场：东欧，东南亚，非洲，大洋洲，中东，东亚
产品描述
1.镜面设计和注塑成型staless钢刀片，与风量大，永不变形和破碎。
2.重量级的安全防范，可以保护风扇的叶片，安全性和色牢度。
3.轻，携带方便
2.重量级的安全防范，可以保护风扇的叶片，安全性和色牢度。
3.轻，携带方便
| 项目 | 名称 | 描述 |
| 01 | 风机叶片 | 直径：910毫米或1270毫米 材质：430BA不锈钢，参团克虏伯不锈钢有限公司。 有限公司 厚度：1.2毫米 表面光洁度BA级 |
| 02 | 帧 | 材料：热镀锌板 板材厚度：1毫米 锌厚度：275克/平方米 |
| 03 | 带 | 从Janpan MITSUBOSHI皮带，免维护。 |
| 04 | 马达 | 西门子电机或中国电机 防护等级：IP55 绝缘等级：F 技术数据是：0.4千瓦或1.1千瓦，380V，50Hz的。 RPM：为1440r /分钟 |
| 05 | 叶轮材料 | YL104（铝镁合金） 它们是由喷砂处理，以消除内应力以改善其刚性和稳定性 |
| 06 | 进口轴承 | 直立也由热镀锌板，坚固耐用，不生锈的。 皮带驱动 |
| 07 | 尺寸： | QOMA- 1000：1000 * 1000 * 350 QOMA-1380 1380 * 1380 * 350 |
Basic Info.
Model NO.: QOMA-HF1101
Certification: SGS, CCC
Electric Current Type: AC
Mounting: Ceiling Fan
Blade Material: Stainless Steel
Usage: for Air Conditioner
Cooling Method: Indirect Cooling
Export Markets: Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia
Product Description
1. Mirror designed and injection moulding staless steel blade, with big air volume, never distortion and broken.
2. Heavy weight safe guard which can protect fan's blade, safety and fastness.
3. Light and easy to carry
2. Heavy weight safe guard which can protect fan's blade, safety and fastness.
3. Light and easy to carry
| Item | Name | Description |
| 01 | Fan blade | Diameter: 910mm or 1270mm Material: 430BA stainless steel, Offered by krupp stainless Co, . Ltd. Thickness: 1.2mm surface finish BA grade |
| 02 | Frame | Material: hot galvanized sheet Sheet thickness: 1mm zink thickness: 275g/ m2 |
| 03 | Belt | Mitsuboshi belt from Janpan, maintenance free. |
| 04 | Motor | Simens motor or china motor Protection grade: IP55 Insulation class: F Technical data is: 0.4kw or 1.1kw, 380v, 50Hz. RPM: 1440r/ min |
| 05 | Impeller Material | YL104 (aluminum magnesium alloy) They are treated by sand blast to eliminate internal stress for improving its rigidity and stability |
| 06 | Bearing | The upright is also made of hot galvanized sheet, durable and non-rust. Belt driven |
| 07 | Size: | QOMA- 1000: 1000* 1000* 350 QOMA-1380: 1380* 1380* 350 |
