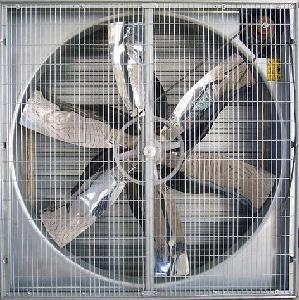

Poultry 50'Box Fan Exhaust Fan
家禽50'Box排气扇
议价
加入意向基本信息。
产品型号：SHM-5
认证：ISO，SGS
电流类型：AC
安装：壁扇
刀片材质：不锈钢
用法：畜禽楼，绿屋，作坊
冷却方式：间接冷却
尺寸：50英寸
主要市场：全球
产品描述
规格：家禽50'Box风扇（SHM-5）-SS刀片，275G / M2锌层框架，1380毫米*1380毫米*450毫米
框架：家禽50鸿运扇，镀锌板支架，锌厚度为275G / M2
刀片：六镜面不锈钢刀片，避免灰尘积聚，叶片直径为1270毫米，刀片将通过平衡测试组装后，可以保证稳定运行，甚至气流，叶片间的weifht差不大于0.5g
电机：西门子电机，通过CE认证
快门：安装离心系统开放，春季封闭的系统，快门可开90°
腰带：腰带Mistoboshi从日本进口
气流：43170米立方公尺/ h
噪声小于65分贝。
框架：家禽50鸿运扇，镀锌板支架，锌厚度为275G / M2
刀片：六镜面不锈钢刀片，避免灰尘积聚，叶片直径为1270毫米，刀片将通过平衡测试组装后，可以保证稳定运行，甚至气流，叶片间的weifht差不大于0.5g
电机：西门子电机，通过CE认证
快门：安装离心系统开放，春季封闭的系统，快门可开90°
腰带：腰带Mistoboshi从日本进口
气流：43170米立方公尺/ h
噪声小于65分贝。
| 模型 | 叶片/毫米 | 频率/ HZ | 电机转速（转/分） | 量（立方米/小时） | 功率/重量 | 噪声（分贝） | 电压/ V | 尺寸（mm） |
| QOMA-CT / 1000 | 910（36英寸） | 50 | ≥ 1400 | 20800 | 750 | ≤ 64 | 380 | 1000x1000x450 |
| QOMA-CT / 1380 | 1270（50英寸） | 50 | ≥ 1400 | 43170 | 1100 | ≤ 64 | 380 | 1380x1380x450 |
Basic Info.
Model NO.: SHM-5
Certification: ISO, SGS
Electric Current Type: AC
Mounting: Wall Fan
Blade Material: Stainless Steel
Usage: Livestock and Poultry House, Green House, Workship
Cooling Method: Indirect Cooling
Size: 50 Inches
Export Markets: Global
Product Description
Spec: Poultry 50'Box Fan (SHM-5) -SS Blades, 275G/ M2 zinc coating frame, 1380mm*1380mm*450mm
Frame: Poultry 50 Box Fan, Galvanized sheet frame, zink thickness is 275G/ M2
Blade: Six mirror surface stainless steel blades, avoid dust accumulation, blade diameter is 1270mm, blade will go through balance test after assembled, which can assure steady running and even airflow, the weifht difference between blades is less than 0.5g
Motor: Simens motor, through CE certification
Shutter: Installed centrifugal system opening and spring close system, shutter can be open 90°
Belt: Mistoboshi belt importing from Japan
Airflow: 43170m^3/ h
Noise is less than 65dB.
Frame: Poultry 50 Box Fan, Galvanized sheet frame, zink thickness is 275G/ M2
Blade: Six mirror surface stainless steel blades, avoid dust accumulation, blade diameter is 1270mm, blade will go through balance test after assembled, which can assure steady running and even airflow, the weifht difference between blades is less than 0.5g
Motor: Simens motor, through CE certification
Shutter: Installed centrifugal system opening and spring close system, shutter can be open 90°
Belt: Mistoboshi belt importing from Japan
Airflow: 43170m^3/ h
Noise is less than 65dB.
| Model | Blade/ mm | Frequency/ HZ | Motor Speed (r/ min) | Capacity (cubic meters/ h) | power/ w | Noise (db) | Voltage/ v | Size (mm) |
| QOMA-CT/ 1000 | 910 (36in) | 50 | ≥ 1400 | 20800 | 750 | ≤ 64 | 380 | 1000x1000x450 |
| QOMA-CT/ 1380 | 1270 (50in) | 50 | ≥ 1400 | 43170 | 1100 | ≤ 64 | 380 | 1380x1380x450 |
