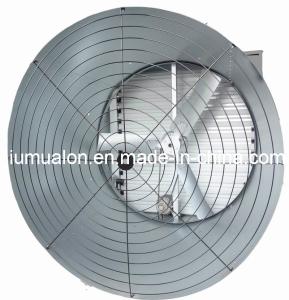

CE Cone Fan for Poultry Housing
CE锥风机禽舍
议价
加入意向基本信息。
型号：QOMA-CF / 1380
电源：电
适用范围：家用，工业，禽，畜房子，温室，工业
认证：SGS
速度：1400R / M2
功率：1100W
材质：不锈钢
安装方式：壁挂式
类型：通风机
出口市场：南美，东欧，东南亚，非洲，大洋洲，中东，东亚，西欧
产品描述
CE锥风扇禽舍的Chracter：
高全压
风量大
低噪声
能耗小
运行稳定，寿命长
自动开启和百叶窗的关闭功能
防水防尘
高全压
风量大
低噪声
能耗小
运行稳定，寿命长
自动开启和百叶窗的关闭功能
防水防尘
| 锥FAN技术数据（SHM-3） | ||
| 风扇尺寸 | 1380毫米*1380毫米*千毫米（54 * 54 * 18） | |
| 帧 | 热镀锌板，高耐腐蚀耐久性，板材thickness1.0mm，每平方zinkthickness275克 | |
| 马达 | 西门子电机，其它电机。因此，CE认证 | |
| 电机技术数据 | 1100W 380伏50赫兹的三相 | |
| 电机转速 | 为1440r / min的 | |
| 噪声 | 65分贝 | |
| 锯片直径 | φ1270毫米 | |
| 刀片否 | 6 | |
| 叶片材料 | 镜面不锈钢，避免灰尘积聚 | |
| 刀片RPM | 460R /分钟 | |
| 刀片指令 | 叶片之间重量差小于0.5K，叶片会经过 平衡测试组装后，可以保证稳定运行，甚至气流。 | |
| 快门 | 离心系统开放，春季封闭的系统，快门可以在90度打开。 | |
| 快门号 | 10 | |
| 快门厚度 | 1.5毫米，更为0.8毫米 | |
| 带 | Mistuboshi带 | |
| 住房 | 镀锌 | |
| 气流 | 51020立方米/小时 | |
Basic Info.
Model NO.: QOMA-CF/ 1380
Power Supply: Electric
Application: Household, Industrial, Poultry, Livestock House, Greenhouse, Industrial
Certification: SGS
Speed: 1400r/ M2
Power: 1100W
Material: Stainless Steel
Installation: Wall Mounted
Type: Ventilation Fan
Export Markets: South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Product Description
The Chracter of CE Cone Fan For Poultry Housing:
High full pressure
Large air flow
Low noise
Small energy consumption
Stable operation and long life span
Automatic opening and closing function of jalousies
Dust and water proof
High full pressure
Large air flow
Low noise
Small energy consumption
Stable operation and long life span
Automatic opening and closing function of jalousies
Dust and water proof
| CONE FAN TECHNICAL DATA (SHM-3) | ||
| Fan size | 1380mm* 1380mm* 1000mm (54 * 54 * 18 ) | |
| Frame | Hot galvanized sheet, high anti-corrosive durability, sheet thickness1.0mm, zinkthickness 275g per square | |
| Motor | Simens motor, Other motor accordingly, CE certificate | |
| Motor technical data | 1100w 380 V 50 Hz three phase | |
| Motor RPM | 1440r/ min | |
| Noise | 65db | |
| Blade diameter | φ 1270 mm | |
| Blade No | 6 | |
| Blade material | Mirror face stainless steel, avoid dust accumulation | |
| Blade RPM | 460r/ min | |
| Blade instruction | Weight difference between blades is less than 0.5k, blades will go through balance test after assembled which can assure steady running and even airflow. | |
| Shutter | Centrifugal system opening, spring close system, shutter can be opened at 90 degree. | |
| Shutter No. | 10 | |
| Thickness of shutter | 1.5 mm , others 0.8 mm | |
| belt | Mistuboshi belt | |
| Housing | galvanized | |
| Airflow | 51020m3/ h | |
