产品型号：SHM-BS / 1380

电源：电

适用范围：家用，工业，温室，Licestock，Poulty楼和车间。

认证：CCC，SGS

功率：）300W

材质：不锈钢

安装方式：壁挂式

类型：通风机

冷却方式：直冷

出口市场：南美，东欧，东南亚，非洲，大洋洲，中东，东亚

（SHM-BS / 1380）的50inch蝴蝶锥风扇禽舍的技术数据

排风扇的直径风扇框：热镀锌板架
排气风扇的板厚为1mm（左侧和右侧为0.8mm）
锌厚度为275G / M₂

Ø风机叶片：德国进口镜面不锈钢。
风扇叶片编号：6
风扇叶片转速：460R /分钟
风扇叶片厚度：1.2毫米
风扇叶片surfacegrfinishgrade：BA
刀片全部通过平衡测试组装后，在生活的工作寿命，可以保证稳定运行，甚至气流。

Ø风扇电机：高效节能电机西门子（其它电机相应）。
风扇电机防护等级：IP55
风扇电机绝缘等级：F
风扇皮带：日本三菱品牌


Ø免维护：整个使用期都是免费维修

O性能：制冷效果也更好一起使用垫，它用于纵向通风。

Model NO.: SHM-BS/ 1380

Power Supply: Electric

Application: Household, Industrial, Greenhouse, Licestock, Poulty House and Workshop.

Certification: CCC, SGS

Power: ) 300W

Material: Stainless Steel

Installation: Wall Mounted

Type: Ventilation Fan

Cooling Method: Direct Cooling

Export Markets: South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

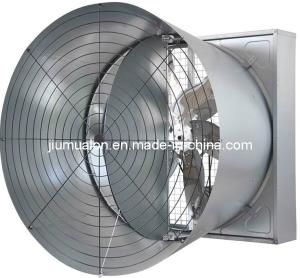

The Technical Data of 50inch Butterfly Cone Fan For Poultry Housing (SHM-BS/ 1380)

Ø Fan frame of exhaust fan: Hot galvanized sheet frame
Sheet thickness of exhaust fan is 1mm (left and right is 0.8mm)
Zink thickness is 275G/ M₂

Ø Fan blades: Germany-imported mirror face stainless steel.
Fan blades No: 6
Fan Blade RPM: 460r/ min
Fan blade Thickness: 1.2mm
Fan blade surfacegrfinishgrade.: BA
Blades all pass the balance test after assembled, which can assure steady running and even airflow during the operational life span of the life.

Ø Fan motor: The high efficient and energy-saving Simens motor (others motor accordingly ) .
Fan motor protection grade: IP55
Fan motor insulation class: F
Fan belts: Japanese Mitsubishi brand


Ø Free maintenance: The whole use period is all free maintenance

Ø Performance: Cooling pad used together with better effect, it is used for longitudinal ventilation.
