36' Hanging Fan for Cowshed
36'挂扇的牛棚
基本信息。
产品型号：SHM-009
认证：ISO，SGS
电流类型：AC
安装：吊扇
刀片材质：不锈钢
用途：适用于空调
冷却方式：直冷
主要市场：全球
产品描述
挂扇
1.镜面设计和注塑成型的不锈钢刀片，具有风量大，永不变形和破裂。
2.风扇镀锌圆形镜框用镀锌的180克/平方米，保证永不生锈。
3.翻边边缘回流的设计加大通风量，降低振动和噪音，imporovr风扇的稳定性。
4.重量级的安全防范，可以保护风扇的叶片，安全性和色牢度。
5.轻，易于适合随身携带。
实验证明：为了得到最好的通风效果，最佳安装地点位于右侧上方的料桶的。 风扇的底部和地面之间Distace为2.7m。 倾斜角为15度-30更好。
1.镜面设计和注塑成型的不锈钢刀片，具有风量大，永不变形和破裂。
2.风扇镀锌圆形镜框用镀锌的180克/平方米，保证永不生锈。
3.翻边边缘回流的设计加大通风量，降低振动和噪音，imporovr风扇的稳定性。
4.重量级的安全防范，可以保护风扇的叶片，安全性和色牢度。
5.轻，易于适合随身携带。
实验证明：为了得到最好的通风效果，最佳安装地点位于右侧上方的料桶的。 风扇的底部和地面之间Distace为2.7m。 倾斜角为15度-30更好。
| 模型 | DIA bades | 叶片转速 | 空气volime | 功率 | 电压 | 高度 | 宽度 | 厚度 |
| 挂36' | 900毫米 | 610rpm | 30000m³/小时 | 750W | 380V | 1000 | 1000 | 420 |
| 挂50' | 1250毫米 | 439rpm | 44000m³/小时 | 1100W | 380V | 1380 | 1380 | 420 |
Basic Info.
Model NO.: SHM-009
Certification: ISO, SGS
Electric Current Type: AC
Mounting: Ceiling Fan
Blade Material: Stainless Steel
Usage: for Air Conditioner
Cooling Method: Direct Cooling
Export Markets: Global
Product Description

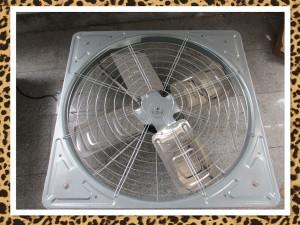

Hanging fan
1. Mirror designed and injection moulding stainless steel blades, with big air volume, never distortion and broke.
2. Fan galvanized round frame with zinc-coated of 180g/ sqm, to ensure never rust.
3. Flanging edge backflow design increase ventilation, reduce vibration and noise, imporovr fan's stability.
4. Heavy weight safe guard which can protect fan's blades, safety and fastness.
5. Light and easy for carry.
Experiment Proved: In order to get the best ventilation effect, optimum installation site lies in the right above of the feeding trough. Distace between the fan's bottom and ground is 2.7m. Inclination angle is better from 15 -30 degree.
1. Mirror designed and injection moulding stainless steel blades, with big air volume, never distortion and broke.
2. Fan galvanized round frame with zinc-coated of 180g/ sqm, to ensure never rust.
3. Flanging edge backflow design increase ventilation, reduce vibration and noise, imporovr fan's stability.
4. Heavy weight safe guard which can protect fan's blades, safety and fastness.
5. Light and easy for carry.
Experiment Proved: In order to get the best ventilation effect, optimum installation site lies in the right above of the feeding trough. Distace between the fan's bottom and ground is 2.7m. Inclination angle is better from 15 -30 degree.
| Model | DIa bades | Blades rotational speed | Air volime | Power | voltage | Height | Width | Thickness |
| Hanging 36' | 900mm | 610rpm | 30000m³ / h | 750W | 380V | 1000 | 1000 | 420 |
| Hanging 50' | 1250mm | 439rpm | 44000m³ / h | 1100W | 380V | 1380 | 1380 | 420 |
