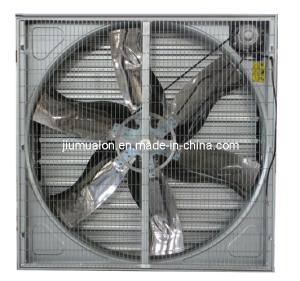

50'Evapotative Exhaust Fan for Greenhouse
50'Evapotative抽风机温室
议价
加入意向基本信息。
型号：QOMA-CS / 1380 QOMA-CS / 1000
电源：电
应用：温室，Licestock，Poulty楼和车间。
认证：SGS
功率：）300W
材质：不锈钢
安装方式：壁挂式
类型：通风机
冷却方式：直冷
主要市场：全球
产品描述
蒸发冷却风扇/排气扇/冷却系统的技术数据
产品特点：
高全压
风量大
低噪声
能耗小
运行稳定，寿命长
自动开启和百叶窗的关闭功能
防水防尘
产品特点：
高全压
风量大
低噪声
能耗小
运行稳定，寿命长
自动开启和百叶窗的关闭功能
防水防尘
| 50蒸发散热风扇技术资料（QOMA-CS / 1380） | |
| 风扇尺寸 | 1380毫米*1380毫米*450毫米（54 * 54 * 18） |
| 帧 | 热镀锌板，高耐腐蚀耐久性，板材thickness1.0mm，每平方zinkthickness275克 |
| 马达 | 西门子电机，其它电机。因此，CE认证 |
| 电机技术数据 | 1.1千瓦380伏50赫兹的三相 |
| 电机转速 | 为1440r / min的 |
| 噪声 | 65分贝 |
| 锯片直径 | φ1270毫米 |
| 刀片否 | 6 |
| 叶片材料 | 镜面不锈钢，避免灰尘积聚 |
| 刀片RPM | 460R /分钟 |
| 刀片指令 | 叶片之间重量差小于0.5K，叶片会经过 平衡测试组装后，可以保证稳定运行，甚至气流。 |
| 快门 | 离心系统开放，春季封闭的系统，快门可以在90度打开。 |
| 快门号 | 10 |
| 快门厚度 | 1.5毫米，更为0.8毫米 |
| 带 | Mistuboshi带 |
| 住房 | 镀锌 |
| 气流 | 43170立方米/小时 |
Basic Info.
Model NO.: QOMA-CS/ 1380 and QOMA-CS/ 1000
Power Supply: Electric
Application: Greenhouse, Licestock, Poulty House and Workshop.
Certification: SGS
Power: ) 300W
Material: Stainless Steel
Installation: Wall Mounted
Type: Ventilation Fan
Cooling Method: Direct Cooling
Export Markets: Global
Product Description
THE TECHNICAL DATA OF EVAPORATIVE COOLING FAN/ EXHAUST FAN/ COOLING SYSTEM
Features:
High full pressure
Large air flow
Low noise
Small energy consumption
Stable operation and long life span
Automatic opening and closing function of jalousies
Dust and water proof
Features:
High full pressure
Large air flow
Low noise
Small energy consumption
Stable operation and long life span
Automatic opening and closing function of jalousies
Dust and water proof
| 50 Evaporative cooling FAN TECHNICAL DATA (QOMA-CS/ 1380) | |
| Fan size | 1380mm* 1380mm* 450mm (54 * 54 * 18 ) |
| Frame | Hot galvanized sheet, high anti-corrosive durability, sheet thickness1.0mm, zinkthickness 275g per square |
| Motor | Simens motor, Other motor accordingly, CE certificate |
| Motor technical data | 1.1 Kw 380 V 50 Hz three phase |
| Motor RPM | 1440r/ min |
| Noise | 65db |
| Blade diameter | φ 1270 mm |
| Blade No | 6 |
| Blade material | Mirror face stainless steel, avoid dust accumulation |
| Blade RPM | 460r/ min |
| Blade instruction | Weight difference between blades is less than 0.5k, blades will go through balance test after assembled which can assure steady running and even airflow. |
| Shutter | Centrifugal system opening, spring close system, shutter can be opened at 90 degree. |
| Shutter No. | 10 |
| Thickness of shutter | 1.5 mm , others 0.8 mm |
| belt | Mistuboshi belt |
| Housing | galvanized |
| Airflow | 43170m3/ h |
