产品型号：QOMA4016

认证：SGS

电流类型：AC

安装：壁扇

刀片材质：不锈钢

用法：温室，畜禽楼，作坊

出口市场：南美，东欧，东南亚，非洲，大洋洲，中东，东亚

规格：千毫米*千毫米*450毫米
框架：热镀锌板车架，钢板厚度为0.8mm，它是抗腐蚀性和耐用，锌厚度为180G / M ^ 2
刀片：六片德国进口镜面不锈钢刀片，可避免灰尘积聚，叶片直径为910毫米，叶片转速为566r / min时，它会经过动平衡试验组装后，可以保证稳定运行，甚至气流， 空气体积consisitent在风扇的所有使用寿命
快门：8pieces热强度镀锌板，离心系统开启和关闭的弹簧系统中安装，快门可以打开90度，中间挡板厚度为1.5mm，其他都是0.8毫米
汽车：中国汽车，其它电机由此，电动技术数据0.4千瓦380V 50HZ三个阶段，电机的转速是为1440r /分钟
皮带：日本进口皮带，用于长时间使用不变形
房屋：这是镀锌，firmand耐用
气流：20800米立方公尺/ h
噪声小于64分贝
免维护：整个使用期是全免费维修
性能：制冷效果也更好一起使用垫，它是用于纵向通风

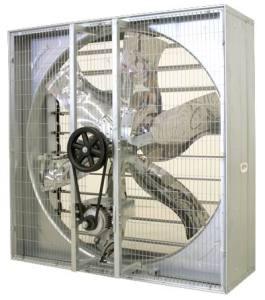

Model NO.: QOMA4016

Certification: SGS

Electric Current Type: AC

Mounting: Wall Fan

Blade Material: Stainless Steel

Usage: Greenhouse, Livestock and Poultry House, Workship

Export Markets: South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Spec: 1000mm*1000mm*450mm
Frame: Hot galvanized sheet frame, sheet thickness is 0.8mm, it is anti-corrosive and durable, zink thickness is 180G/ M^2
Blade: Six pieces German-imported mirror surface stainless steel blades, which can avoid dust accumulation, blade diameter is 910mm, blade RPM is 566r/ min, it will go through dynamic balance test after assembled, which can assure steady running and even airflow, the air volume is consisitent in all service life of fan
Shutter: 8pieces hot strength galvanized sheet, installed with centrifugal system opening and spring close system, shutter can be opened at 90 degree, the middle shutter thickness is 1.5mm, others are 0.8mm
Motor: Chinese motor, other motor accordingly, motor technical data is 0.4kw 380V 50Hz with three phase, motor's RPM is 1440r/ min
Belt: Japan imported belt, used for a long time without deformation
Housing: It is galvanized, firmand durable
Airflow: 20800m^3/ h
Noise is less than 64dB
Free maintenance: The whole use period is all free maintenance
Performance: Cooling pad used together with better effect, it is used for longitudinal ventilation
