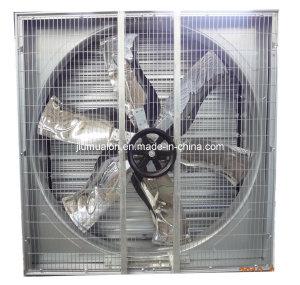

Cooling Fan with Energy Saving and More Efficient
冷却风扇节能，更高效
议价
加入意向基本信息。
型号：QOMA-CD / 1380和QOMA-CD / 1000
电源：电
适用范围：家用，工业，温室，Licestock，Poulty楼和车间。
认证：SGS
功率：）300W
材质：不锈钢
安装方式：壁挂式
类型：通风机
出口市场：南美，东欧，东南亚，非洲，大洋洲，中东，东亚
产品描述
THTE技术数据散热风扇更高效
风扇框：热镀锌板架
片厚度为1mm（左侧和右侧为0.8mm）
锌厚度为275G / M2
风扇叶片：德国进口镜面不锈钢。
风扇叶片编号：6
风扇叶片转速：460R /分钟
风扇叶片厚度：1.2毫米
风扇叶片surfacegrfinishgrade：BA
刀片全部通过平衡测试组装后，在生活的工作寿命，可以保证稳定运行，甚至气流。
风扇电机：高效节能电机西门子（其它电机相应）。
风扇电机防护等级：IP55
风扇电机绝缘等级：F
风扇皮带：日本三菱品牌
离心式风机系统：采用高品质的尼龙PA66，确保
使用寿命长。 离心的紧固件
系统所有的铜铆钉，耐磨和
不生锈，灵活
范快门：高强度热镀锌钢板，中间的快门厚度为1.5mm，其他都0.8毫米，用离心系统，其可以确保他快门打开为90度的所有条件下的角度确保空气阻力最低和 最大风量。 当关闭时，密封可以有效阻挡光线和风能进养鸡场的房子。
免维护：整个使用期是全免费维修
性能：制冷效果也更好一起使用垫，它是用于纵向通风
风扇框：热镀锌板架
片厚度为1mm（左侧和右侧为0.8mm）
锌厚度为275G / M2
风扇叶片：德国进口镜面不锈钢。
风扇叶片编号：6
风扇叶片转速：460R /分钟
风扇叶片厚度：1.2毫米
风扇叶片surfacegrfinishgrade：BA
刀片全部通过平衡测试组装后，在生活的工作寿命，可以保证稳定运行，甚至气流。
风扇电机：高效节能电机西门子（其它电机相应）。
风扇电机防护等级：IP55
风扇电机绝缘等级：F
风扇皮带：日本三菱品牌
离心式风机系统：采用高品质的尼龙PA66，确保
使用寿命长。 离心的紧固件
系统所有的铜铆钉，耐磨和
不生锈，灵活
范快门：高强度热镀锌钢板，中间的快门厚度为1.5mm，其他都0.8毫米，用离心系统，其可以确保他快门打开为90度的所有条件下的角度确保空气阻力最低和 最大风量。 当关闭时，密封可以有效阻挡光线和风能进养鸡场的房子。
免维护：整个使用期是全免费维修
性能：制冷效果也更好一起使用垫，它是用于纵向通风
| 模型 | 刀片 /毫米 | 频率 /赫兹 | 电机转速（转/分） | 量（立方米/小时） | 功率/重量 | 噪声（分贝） | 电压/ V | 尺寸（mm） |
| QOMA-DD / 1000 | 910（36英寸） | 50 | ≥ 1400 | 20800 | 750 | ≤ 64 | 380 | 1000x1000x450 |
| QOMA-DD / 1380 | 1270（50英寸） | 50 | ≥ 1400 | 43170 | 1100 | ≤ 64 | 380 | 1380x1380x450 |
Basic Info.
Model NO.: QOMA-CD/ 1380 and QOMA-CD/ 1000
Power Supply: Electric
Application: Household, Industrial, Greenhouse, Licestock, Poulty House and Workshop.
Certification: SGS
Power: ) 300W
Material: Stainless Steel
Installation: Wall Mounted
Type: Ventilation Fan
Export Markets: South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia
Product Description
THTE TECHNICAL DATA OF COOLING FAN WITH MORE EFFICIENT
Fan frame: Hot galvanized sheet frame
Sheet thickness is 1mm (left and right is 0.8mm)
Zink thickness is 275G/ M2
Fan blades: Germany-imported mirror face stainless steel.
Fan blades No: 6
Fan Blade RPM: 460r/ min
Fan blade Thickness: 1.2mm
Fan blade surfacegrfinishgrade.: BA
Blades all pass the balance test after assembled, which can assure steady running and even airflow during the operational life span of the life.
Fan motor: The high efficient and energy-saving Simens motor (others motor accordingly ) .
Fan motor protection grade: IP55
Fan motor insulation class: F
Fan belts: Japanese Mitsubishi brand
Fan centrifugal system: Adopt high quality nylon PA66 to ensure the
Long service life. The fasteners of centrifugal
System all a copper rivets, wear-resisting and
No rust, flexible
Fan shutter: High strength hot-galvanized steel sheet, The middle shutter thickness is 1.5mm, others are 0.8mm, with a centrifugal system which can ensure he shutter Opens with the angle of 90 degree under all the condition Ensure the lowest air resistance and biggest air volume. When closing, the sealing can efficiently block light and Wind into the poultry farm house.
Free maintenance: The whole use period is all free maintenance
Performance: Cooling pad used together with better effect, it is used for longitudinal ventilation
Fan frame: Hot galvanized sheet frame
Sheet thickness is 1mm (left and right is 0.8mm)
Zink thickness is 275G/ M2
Fan blades: Germany-imported mirror face stainless steel.
Fan blades No: 6
Fan Blade RPM: 460r/ min
Fan blade Thickness: 1.2mm
Fan blade surfacegrfinishgrade.: BA
Blades all pass the balance test after assembled, which can assure steady running and even airflow during the operational life span of the life.
Fan motor: The high efficient and energy-saving Simens motor (others motor accordingly ) .
Fan motor protection grade: IP55
Fan motor insulation class: F
Fan belts: Japanese Mitsubishi brand
Fan centrifugal system: Adopt high quality nylon PA66 to ensure the
Long service life. The fasteners of centrifugal
System all a copper rivets, wear-resisting and
No rust, flexible
Fan shutter: High strength hot-galvanized steel sheet, The middle shutter thickness is 1.5mm, others are 0.8mm, with a centrifugal system which can ensure he shutter Opens with the angle of 90 degree under all the condition Ensure the lowest air resistance and biggest air volume. When closing, the sealing can efficiently block light and Wind into the poultry farm house.
Free maintenance: The whole use period is all free maintenance
Performance: Cooling pad used together with better effect, it is used for longitudinal ventilation
| Model | Blade /mm | Frequency /HZ | Motor Speed (r/ min) | Capacity (cubic meters/ h) | power/ w | Noise (db) | Voltage/ v | Size (mm) |
| QOMA-DD/ 1000 | 910 (36in) | 50 | ≥ 1400 | 20800 | 750 | ≤ 64 | 380 | 1000x1000x450 |
| QOMA-DD/ 1380 | 1270 (50in) | 50 | ≥ 1400 | 43170 | 1100 | ≤ 64 | 380 | 1380x1380x450 |
