Heavy Hammer Exhaust Fan Shm 4020
重型锤式抽风机SHM 4020
议价
加入意向基本信息。
产品型号：SHM-4020
认证：ISO，SGS
电流类型：AC
安装：壁扇
刀片材质：不锈钢
用途：适用于空调
出口市场：北美，南美，东欧，东南亚，大洋洲，中东，东亚
产品描述
重锤抽风机
框架：热镀锌板，高耐腐蚀耐久性，表thickness1.0mm。
Zinkthickness 120G / M2
电机：西门子电机，其它电机据此，CE认证
电机技术数据：1.1千瓦380伏50赫兹三相
电机转速：为1440r /分钟
噪音：比65分贝减
锯片直径：φ1250毫米
刀片编号：6
叶片材料：镜面不锈钢，避免灰尘积聚
叶片转速：460R /分钟
刀片指令：
叶片之间重量差小于0.5K，叶片会经过
平衡测试组装后，可以保证运行平稳，甚至
气流。
快门：
离心系统开放，春季封闭的系统，快门可开于
90度。
快门编号：10
腰带：腰带Mistuboshi
外壳：镀锌
气流：42000立方米/小时
框架：热镀锌板，高耐腐蚀耐久性，表thickness1.0mm。
Zinkthickness 120G / M2
电机：西门子电机，其它电机据此，CE认证
电机技术数据：1.1千瓦380伏50赫兹三相
电机转速：为1440r /分钟
噪音：比65分贝减
锯片直径：φ1250毫米
刀片编号：6
叶片材料：镜面不锈钢，避免灰尘积聚
叶片转速：460R /分钟
刀片指令：
叶片之间重量差小于0.5K，叶片会经过
平衡测试组装后，可以保证运行平稳，甚至
气流。
快门：
离心系统开放，春季封闭的系统，快门可开于
90度。
快门编号：10
腰带：腰带Mistuboshi
外壳：镀锌
气流：42000立方米/小时
| 重型锤式风扇/排气风扇/散热垫的技术数据 | ||||||||
| 模型 | 直径叶片/毫米 | 刀片编号 | 频率/ HZ | 空气体积/米3 / h的 | 电源/千瓦 | 噪声（分贝） | 电压/ V | 尺寸（mm） |
| QOMA-HH / 800 | 710 | 6 | 50 | 16000 | 0.37 | ≤64 | 380 | 800x800x400 |
| QOMA-HH / 900 | 750 | 6 | 50 | 18000 | 0.55 | ≤64 | 380 | 900x900x400 |
| QOMA-HH / 1000 | 900 | 6 | 50 | 20800 | 0.55 | ≤64 | 380 | 1000x1000x400 |
| QOMA-HH / 1100 | 1000 | 6 | 50 | 28000 | 0.75 | ≤64 | 380 | 1100x1100x400 |
| QOMA-HH / 1220 | 1100 | 6 | 50 | 34000 | 0.75 | ≤64 | 380 | 1220x1220x400 |
| QOMA-HH / 1380 | 1250 | 6 | 50 | 40000 | 1.1 | ≤64 | 380 | 1380x1380x400 |
| QOMA-HH / 1530 | 1400 | 6 | 50 | 48000 | 1.5 | ≤64 | 380 | 1530x15300x400 |
Basic Info.
Model NO.: SHM-4020
Certification: ISO, SGS
Electric Current Type: AC
Mounting: Wall Fan
Blade Material: Stainless Steel
Usage: for Air Conditioner
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Oceania, Mid East, Eastern Asia
Product Description

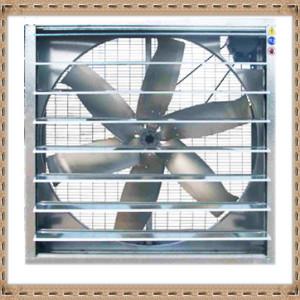

Heavy Hammer Exhaust Fan
Frame: Hot galvanized sheet, high anti-corrosive durability, sheet thickness1.0mm.
Zinkthickness 120G/ M2
Motor: Simens motor, Other motor accordingly, CE certificate
Motor technical data: 1.1 Kw 380 V 50 Hz three phase
Motor RPM: 1440r/ min
Noise: Less than 65dB
Blade diameter: φ 1250 mm
Blade No.: 6
Blade material: Mirror face stainless steel, avoid dust accumulation
Blade RPM: 460r/ min
Blade instruction:
Weight difference between blades is less than 0.5k, blades will go through
Balance test after assembled which can assure steady running and even
Airflow.
Shutter:
Centrifugal system opening, spring close system, shutter can be opened at
90 degree.
Shutter No.: 10
Belt: Mistuboshi belt
Housing: Galvanized
Airflow: 42000m3/ h
Frame: Hot galvanized sheet, high anti-corrosive durability, sheet thickness1.0mm.
Zinkthickness 120G/ M2
Motor: Simens motor, Other motor accordingly, CE certificate
Motor technical data: 1.1 Kw 380 V 50 Hz three phase
Motor RPM: 1440r/ min
Noise: Less than 65dB
Blade diameter: φ 1250 mm
Blade No.: 6
Blade material: Mirror face stainless steel, avoid dust accumulation
Blade RPM: 460r/ min
Blade instruction:
Weight difference between blades is less than 0.5k, blades will go through
Balance test after assembled which can assure steady running and even
Airflow.
Shutter:
Centrifugal system opening, spring close system, shutter can be opened at
90 degree.
Shutter No.: 10
Belt: Mistuboshi belt
Housing: Galvanized
Airflow: 42000m3/ h
| The Technical Data of Heavy Hammer Fan/ Exhaust Fan/ Cooling pad | ||||||||
| Model | Diameter blade/ mm | Blade No. | Frequency/ HZ | Air volume/ m 3 / h | Power/ kw | Noise (db) | Voltage/ v | Size (mm) |
| QOMA-HH/ 800 | 710 | 6 | 50 | 16000 | 0.37 | ≤64 | 380 | 800x800x400 |
| QOMA-HH/ 900 | 750 | 6 | 50 | 18000 | 0.55 | ≤64 | 380 | 900x900x400 |
| QOMA-HH/ 1000 | 900 | 6 | 50 | 20800 | 0.55 | ≤64 | 380 | 1000x1000x400 |
| QOMA-HH/ 1100 | 1000 | 6 | 50 | 28000 | 0.75 | ≤64 | 380 | 1100x1100x400 |
| QOMA-HH/ 1220 | 1100 | 6 | 50 | 34000 | 0.75 | ≤64 | 380 | 1220x1220x400 |
| QOMA-HH/ 1380 | 1250 | 6 | 50 | 40000 | 1.1 | ≤64 | 380 | 1380x1380x400 |
| QOMA-HH/ 1530 | 1400 | 6 | 50 | 48000 | 1.5 | ≤64 | 380 | 1530x15300x400 |
