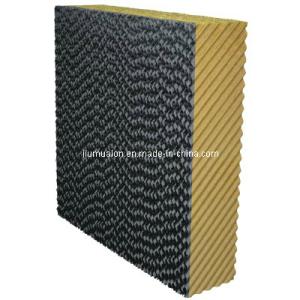

Poultry Cooling Pad with Black Coating
家禽散热垫与黑色涂层
议价
加入意向基本信息。
产品型号：QOMA
认证：SGS
用法：温室，畜禽楼
主要市场：全球
产品描述
该技术数据家禽散热垫采用黑色涂层
框架：镀锌框架和铝框可选。
材料：宝石，纤维素纸空间交叉连接技术，高吸收，高耐水，抗霉变，使用寿命长。
特征：
1.大面积蒸发，冷却效率高达80％
2.产品含有表面活性剂，天然吸水性，快速渗透速度和持久的效力。 一滴水可以在4-5秒内弥漫。
3.高度自然吸水为60-70mm / 5分钟，200毫米/ 1.5小时。
优点：该产品不含有苯酚这容易使皮肤过敏和其他化学物质，它具有安全，节能，环保，经济耐用。
2.散热垫的颜色
3.散热垫的性能曲线
4.散热垫的应用
框架：镀锌框架和铝框可选。
材料：宝石，纤维素纸空间交叉连接技术，高吸收，高耐水，抗霉变，使用寿命长。
特征：
1.大面积蒸发，冷却效率高达80％
2.产品含有表面活性剂，天然吸水性，快速渗透速度和持久的效力。 一滴水可以在4-5秒内弥漫。
3.高度自然吸水为60-70mm / 5分钟，200毫米/ 1.5小时。
优点：该产品不含有苯酚这容易使皮肤过敏和其他化学物质，它具有安全，节能，环保，经济耐用。
2.散热垫的颜色
3.散热垫的性能曲线
4.散热垫的应用
| 7090 | 5090 | |
| 高（mm） | 1500, 1800, 2000 | 1500, 1800, 2000 |
| 宽（mm） | 600, 300 | 600, 300 |
| D（毫米） | 100, 150, 200 | 100, 150, 200 |
| 高（mm） | 7 | 5 |
| （*）的跨越角 | 45 | 45 |
| B（*）跨越角 | 45 | 45 |
Basic Info.
Model NO.: QOMA
Certification: SGS
Usage: Green House, Livestock and Poultry House
Export Markets: Global
Product Description
The Technical Data Of Poultry Cooling Pad with black coating
The frame: Galvanized frame and aluminum frame optional.
The Material: Precious cellulose paper with space crossing linking technology, high absorbability, high water-resistant, anti-mildew and long service life.
The feature:
1. Large evaporative area, cooling efficiency as high as 80%
2. The product contains surface active agent, natural water absorbability, fast pervasion speed and lasting effectiveness. A drop of water can diffuse in 4-5 seconds.
3. Height of natural water absorption is 60-70mm/ 5 min, 200mm/ 1.5h.
The advantages: The products don't contain phenol which easy to skin allergy and other chemical substances, it is safe, energy saving, environmental protective, economic and durable.
2. The color of cooling pad
3. The performance curve of cooling pad
4. The application of cooling pad
The frame: Galvanized frame and aluminum frame optional.
The Material: Precious cellulose paper with space crossing linking technology, high absorbability, high water-resistant, anti-mildew and long service life.
The feature:
1. Large evaporative area, cooling efficiency as high as 80%
2. The product contains surface active agent, natural water absorbability, fast pervasion speed and lasting effectiveness. A drop of water can diffuse in 4-5 seconds.
3. Height of natural water absorption is 60-70mm/ 5 min, 200mm/ 1.5h.
The advantages: The products don't contain phenol which easy to skin allergy and other chemical substances, it is safe, energy saving, environmental protective, economic and durable.
2. The color of cooling pad
3. The performance curve of cooling pad
4. The application of cooling pad
| 7090 | 5090 | |
| H (mm) | 1500, 1800, 2000 | 1500, 1800, 2000 |
| W (mm) | 600, 300 | 600, 300 |
| D (mm) | 100, 150, 200 | 100, 150, 200 |
| H (mm) | 7 | 5 |
| a (*) across angle | 45 | 45 |
| b (*) across angle | 45 | 45 |
