Evaporation Cooling Pad (SHM-4) CE
蒸发散热垫（SHM-4）CE
议价
加入意向基本信息。
产品型号：SHM-CP
认证：SGS
性能：105G / M2

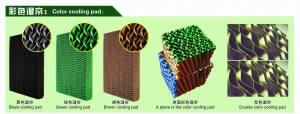

颜色：黑色绿色棕色双色
框架：铝合金不锈钢
出口市场：南美，东南亚，非洲，大洋洲，中东，东亚
产品描述
蒸发散热垫：
尺寸; 1500χ1800χ2000毫米
框架：镀锌框架和铝框可选。
材料：宝石，纤维素纸空间交叉连接技术，高吸收，高耐水，抗霉变，使用寿命长。
特征：
1.大面积蒸发，冷却效率高达80％
2.产品含有表面活性剂，天然吸水性，快速渗透速度和持久的效力。 一滴水可以在4-5秒内弥漫。
3.高度自然吸水为60-70mm / 5分钟，200毫米/ 1.5小时。
优点：该产品不含有苯酚这容易使皮肤过敏和其他化学物质，它具有安全，节能，环保，经济耐用。
尺寸; 1500χ1800χ2000毫米
框架：镀锌框架和铝框可选。
材料：宝石，纤维素纸空间交叉连接技术，高吸收，高耐水，抗霉变，使用寿命长。
特征：
1.大面积蒸发，冷却效率高达80％
2.产品含有表面活性剂，天然吸水性，快速渗透速度和持久的效力。 一滴水可以在4-5秒内弥漫。
3.高度自然吸水为60-70mm / 5分钟，200毫米/ 1.5小时。
优点：该产品不含有苯酚这容易使皮肤过敏和其他化学物质，它具有安全，节能，环保，经济耐用。
| PAD1 | PAD2 | |
| 高（mm） | 1500, 1800, 2000 | 1500, 1800, 2000 |
| 宽（mm） | 600, 300 | 600, 300 |
| D（毫米） | 100, 150, 200 | 100, 150, 200 |
| 高（mm） | 7 | 5 |
| （*）的跨越角 | 45 | 45 |
| B（*）跨越角 | 45 | 45 |
Basic Info.
Model NO.: SHM-CP
Certification: SGS
Performance: 105G/ M2
Colour: Black Green Brown Double Color
Frame: Aluminum Alloy Stainless Steel
Export Markets: South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia
Product Description
Evaporation Cooling Pad:
The Size; 1500χ 1800χ 2000mm
The frame: Galvanized frame and aluminum frame optional.
The Material: Precious cellulose paper with space crossing linking technology, high absorbability, high water-resistant, anti-mildew and long service life.
The feature:
1. Large evaporative area, cooling efficiency as high as 80%
2. The product contains surface active agent, natural water absorbability, fast pervasion speed and lasting effectiveness. A drop of water can diffuse in 4-5 seconds.
3. Height of natural water absorption is 60-70mm/ 5 min, 200mm/ 1.5h.
The advantages: The products don't contain phenol which easy to skin allergy and other chemical substances, it is safe, energy saving, environmental protective, economic and durable.
The Size; 1500χ 1800χ 2000mm
The frame: Galvanized frame and aluminum frame optional.
The Material: Precious cellulose paper with space crossing linking technology, high absorbability, high water-resistant, anti-mildew and long service life.
The feature:
1. Large evaporative area, cooling efficiency as high as 80%
2. The product contains surface active agent, natural water absorbability, fast pervasion speed and lasting effectiveness. A drop of water can diffuse in 4-5 seconds.
3. Height of natural water absorption is 60-70mm/ 5 min, 200mm/ 1.5h.
The advantages: The products don't contain phenol which easy to skin allergy and other chemical substances, it is safe, energy saving, environmental protective, economic and durable.
| PAD1 | PAD2 | |
| H (mm) | 1500, 1800, 2000 | 1500, 1800, 2000 |
| W (mm) | 600, 300 | 600, 300 |
| D (mm) | 100, 150, 200 | 100, 150, 200 |
| H (mm) | 7 | 5 |
| a (*) across angle | 45 | 45 |
| b (*) across angle | 45 | 45 |
