90W 120W led street light IP67
90W 120W LED路灯IP67
新！ ET-SL02-3系列三路灯照明模块90W 120W LED路灯LED户外灯！
ET-SL02-3系列，价格led路灯
产品特点
- 模块化可插拔技术，免费上门维修工具;
- 低蜂窝冷却技术和高的热导率，冷却芯片，高效率的热传导和散热性能的整体结构;
- 小单颗LED灯损坏不影响其他光源的电流;
- 智能型恒流驱动技术，输出稳定，突破电源的寿命，可自动调节的光;
- 双耦合IP67防护等级，超强防水等级;
- 人类学习配光，光线均匀分布的低功能;
- Free系列，全面的电源解决方案;
的90W-120W技术参数导致streetb灯
| 工作电压 | 电源效率 | 功率因数 | CRI | 结温 | 配光 | 工作环境 | 存储 |
| AC90-305V 50-60Hz的 | 90% | 0.95 | 85±5 | ≤75℃ | 蝙蝠 | -40℃TO50℃5％〜95％RH | -40℃to85℃ |
| LED寿命 | 电源寿命 | 浪涌电压 | 轻麸 | 安装口径 | 灯体材料 | IP等级 | |
| ≥50000h | ≥30000h | 10KV | Philipslumileds /三星/欧司朗/晶元/普瑞 | 55-65mm | 铝 | IP67 | |
| 模型 | ET-SL02-3 | ||||||
| 光源数量 | 3模块 | ||||||
| 模型 | 功率（W） | TC（K） | 光通量（lm） | 光效率（流明/瓦） | 外形尺寸（mm） | 包装尺寸（mm） | 净重（kg） | GW（KG） |
| ET-SL02-3 | 90 | 3000 | 4500-5700 | 75-95 | 630*330*83.5 | 730*430*170 | 7.5 | 8.5 |
| 4000 | 4800-6000 | 80-100 | ||||||
| 5000/6000 | 5100-6300 | 85-105 | ||||||
| 120 | 3000 | 6000-7600 | 75-95 | 7.5 | 8.5 | |||
| 4000 | 6400-8000 | 80-100 | ||||||
| 5000/6000 | 6800-8400 | 85-105 |
标准
1. GB24819-2009 LED模块普通照明安全要求
2. GB5013 / IEC 60245 450/750 V和额定电压以下橡皮绝缘电缆
3. IEC 62471-2006光生物安全

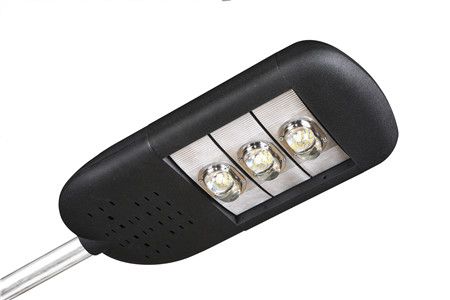

New! ET-SL02-3 series Three street lighting Modules 90W 120W LED Street Lamp LED Outdoor light !
ET-SL02-3 series, price led street light
Product Features
- Modularization pluggable technology, free on-site maintenance tools;
- Low cellular cooling technology and high thermal conductivity, the whole structure of the cooling chip, high efficiency heat conduction and heat dissipation performance;
- Low single star LED light damage does not affect the other light source current;
- Intelligent constant current drive technology, output stability, break through the life of power, can be automatically adjusted light;
- Double coupling IP67 protection, super waterproof level;
- Low function of human learning with light, the light uniform distribution;
- Free series, full power solutions;
Technical Parameters of 90W-120W led streetb lights
| Operating Voltage | Power Efficiency | Power factor | CRI | Junction Temperature | Light distribution | Work environment | Storage |
| AC90-305V 50-60Hz | 90% | 0.95 | 85±5 | ≤75℃ | Batwing | -40℃to50℃ 5% to 95% RH | -40℃to85℃ |
| LED life | Power Life | Surge voltage | Light bran | Install caliber | Light body material | IP rating | |
| ≥50000h | ≥30000h | 10kv | Philipslumileds/ Samsung/ Osram/ Epistar/ Bridgelux | 55-65mm | Aluminum | IP67 | |
| Model | ET-SL02-3 | ||||||
| Number of light sources | 3 Module | ||||||
| Model | Power (W) | TC (K) | Flux (lm) | Light efficiency (lm/ W) | Dimensions (mm) | Package Size (mm) | NW (Kg) | GW (Kg) |
| ET-SL02-3 | 90 | 3000 | 4500-5700 | 75-95 | 630*330*83.5 | 730*430*170 | 7.5 | 8.5 |
| 4000 | 4800-6000 | 80-100 | ||||||
| 5000/6000 | 5100-6300 | 85-105 | ||||||
| 120 | 3000 | 6000-7600 | 75-95 | 7.5 | 8.5 | |||
| 4000 | 6400-8000 | 80-100 | ||||||
| 5000/6000 | 6800-8400 | 85-105 |
Standards
1. GB24819-2009 LED modules for general lighting-Safety requirements
2. GB5013/ IEC 60245 450/750 V and below rated voltage rubber insulated cables
3. IEC 62471-2006 light Biosafety
