Must solar inverter PV1800 2kva to 5kva
必须太阳能逆变器PV1800 2KVA到5KVA
必须品牌PV1800series 2KVA 3KVA 4KVA 5KVA高频混合太阳能逆变器
这是一个多功能逆变器/充电器，结合变频器的功能，MPPT的太阳能充电器和电池充电器能够提供与便携的尺寸uniterruptible动力支持，其全面的LCD显示屏提供用户可配置的，易于访问的按钮操作，例如电池充电电流， 交流/太阳能充电器优先权，和可接受的输入电压基于不同的应用程序。
这是规格混合型太阳能逆变器的？
| 模型 | PV18-1K | PV18-2K | PV18-3K | PV18-4K | PV18-5K | |
| 默认电池系统电压 | 12VDC | 24VDC | 24VDC | 48VDC | 48VDC | |
| 逆变器 输出 | Reted电源 | 1000VA / 800W | 2000VA / 1600W | 3000VA / 2400W | 4000VA / 3200W | 5000VA / 4000W |
| 浪涌电源 | 2000VA | 4000VA | 6000VA | 8000VA | 10000VA | |
| 波形 | 纯正弦波 | |||||
| 交流稳压（巴特。模式） | 230VAC±5％ | |||||
| 逆变器的效率（峰） | 90% | 93% | ||||
| 转换时间 | 10毫秒（个人计算机） 20毫秒（对于家电） | |||||
| AC INPUT | 电压 | 230VAC | ||||
| 可选择的电压范围 | 170〜280VAC（个人计算机） 90〜280VAC（对于家电） | |||||
| 频率范围 | 50Hz / 60Hz的（自动感应） | |||||
| 电池 | 额定电压 | 12VDC | 24VDC | 48VDC | ||
| 浮充电压 | 13.5VDC | 27VDC | 54VDC | |||
| 过充电保护 | 15VDC | 30VDC | 60VDC | |||
| SOLAR 充电器 & AC充电器 | 最大光伏阵列开路电压 | 30VDC | 60VDC | 105VDC | ||
| 待机功耗 | 1W | 2W | 2W | |||
| 最大太阳能充电电流 | 50A | 50A | 50A | |||
| 最大交流充电电流 | 10A或20A | 20A或30A | 60A | |||
| 最大充电电流 | 50A | 110A | ||||
| 机械 技术指标 | 尺寸，宽x高x（毫米） | 240*316*95 | 272*355*100 | 297.5*468*125 | ||
| 净重 （公斤） | 5 | 6.4 | 6.9 | 9.8 | ||
| 其他 | 湿度 | 5％至95％Relativ湿度（无冷凝） | ||||
| 工作温度 | 0℃-55℃ | |||||
| 储存温度 | -15℃-60℃ | |||||

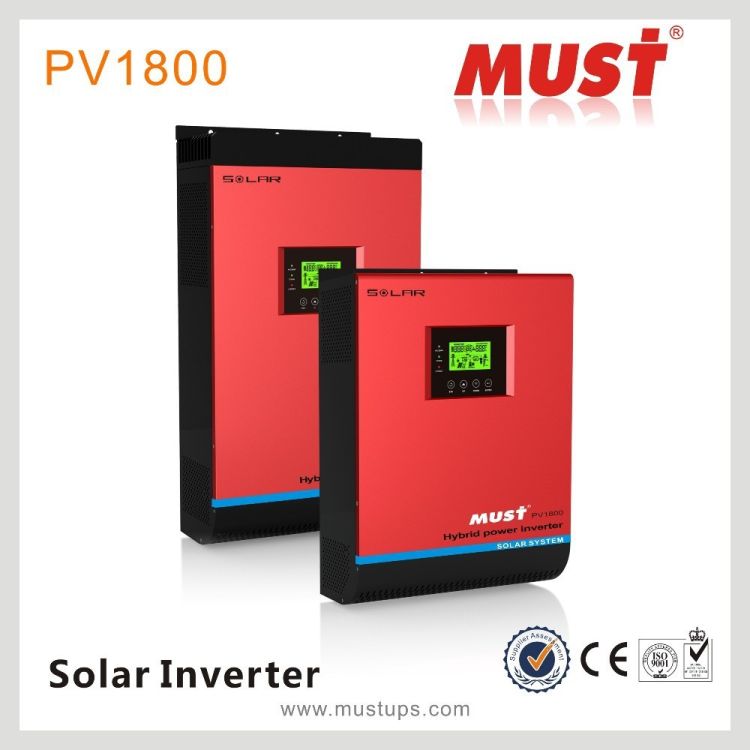

图片混合太阳能逆变器电源：
5KVA太阳能逆变器连接在具有平行为10KVA
平行于30KVA /24千瓦6颗5KVA PV1800：
Must Brand PV1800series 2kva 3kva 4kva 5kva high frequency hybrid solar inverter
This is a multi-function inverter/ charger, combining function of inverter, MPPT solar charger and battery charger to offer uniterruptible power support with portable size, Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/ solar charger priority, and acceptable input voltage based on different applications.
What is specification of hybrid solar inverter?
| MODEL | PV18-1K | PV18-2K | PV18-3K | PV18-4K | PV18-5K | |
| Default Battery System Voltage | 12VDC | 24VDC | 24VDC | 48VDC | 48VDC | |
| INVERTER OUTPUT | Reted Power | 1000VA/ 800W | 2000VA/ 1600W | 3000VA/ 2400W | 4000VA/ 3200W | 5000VA/ 4000W |
| Surge Power | 2000VA | 4000VA | 6000VA | 8000VA | 10000VA | |
| Waveform | Pure sine wave | |||||
| AC Voltage Regulation (Batt. Mode) | 230VAC±5% | |||||
| Inverter Efficiency (Peak) | 90% | 93% | ||||
| Transfer Time | 10ms (For Personal Computers) 20ms (For Home Appliances) | |||||
| AC INPUT | Voltage | 230VAC | ||||
| Selectable Voltage Range | 170~280VAC (For Personal Computers) 90~280VAC (For Home Appliances) | |||||
| Frequency Range | 50Hz/ 60Hz (Auto sensing) | |||||
| BATTERY | Nominal voltage | 12VDC | 24VDC | 48VDC | ||
| Floating Charge Voltage | 13.5VDC | 27VDC | 54VDC | |||
| Overcharge Protection | 15VDC | 30VDC | 60VDC | |||
| SOLAR CHARGER & AC CHARGER | Maximum PV Array Open Circuit Voltage | 30VDC | 60VDC | 105VDC | ||
| Standby Power Consumption | 1W | 2W | 2W | |||
| Maximum Solar Charge Current | 50A | 50A | 50A | |||
| Maximum AC Charge Current | 10A or 20A | 20A or 30A | 60A | |||
| Maximum Charge Current | 50A | 110A | ||||
| MECHANICAL SPECIFICATIONS | Dimension, WxHxD (mm) | 240*316*95 | 272*355*100 | 297.5*468*125 | ||
| Net Weight (kg) | 5 | 6.4 | 6.9 | 9.8 | ||
| OTHER | Humidity | 5% to 95% Relativ Humidity (Non-condensing) | ||||
| Operating Temperature | 0℃-55℃ | |||||
| Storage Temperature | -15℃-60℃ | |||||

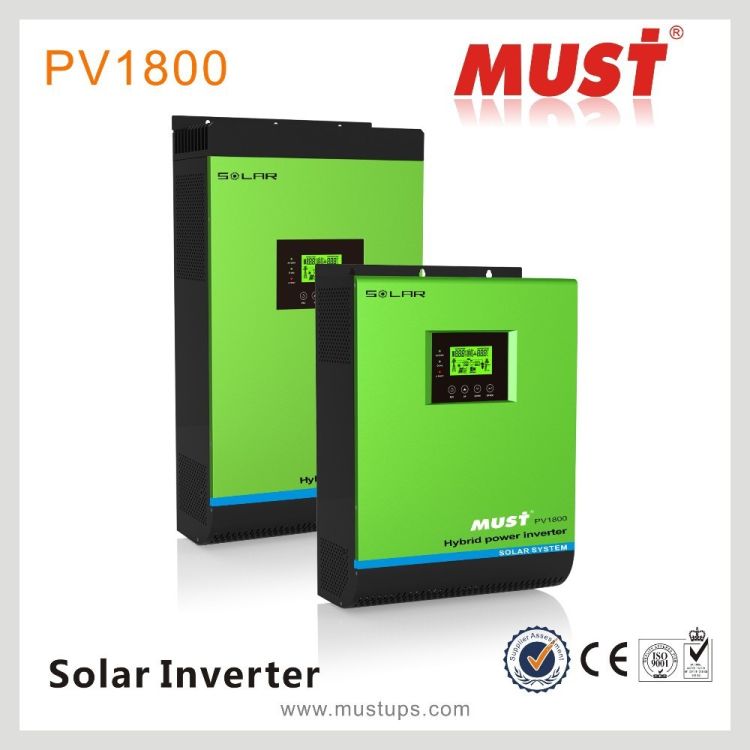

Pictures of hybrid solar inverter power:
5kva solar inverter connect in parrallel to be 10kva
6pcs 5kva PV1800 parallel to 30kva/ 24kw:
