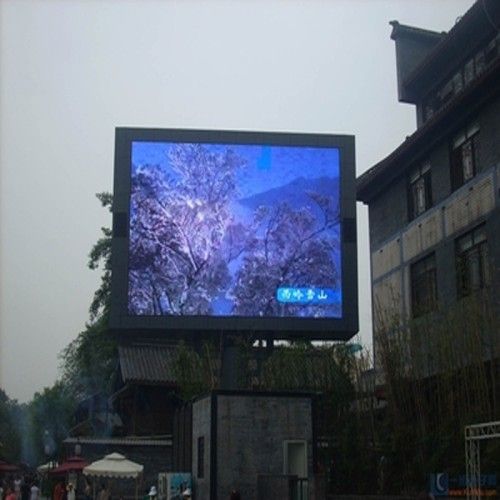

Outdoor Advertising Panel/LED Sign for Market

Outdoor Advertising Panel/LED Sign for Market

户外广告板/ LED标志市场

500 USD

加入意向
型号。 p12
IP等级 IP65
像素配置 1r,1g,1b
平均功耗 300W /m²m²up2;m²
扫描模式 1/2扫描
应用 广告
模块尺寸 192毫米*192毫米
寿命 10万小时
免费维权 可得到
商标 英雄
起源 中国广东省深圳市
管芯颜色 饱满的色彩
像素间距 12毫米
显示功能 视频显示
像素密度 6944点/平方米up2;m²
显示类型 LED视频显示
证明 ce,rohs,ccc
橱柜尺寸 可调整的
保证 2年
价钱 工厂价格
规范 ce,rohs,emc

户外广告面板/ led市场招牌
大视角
2.重量轻
3,CE&ROHS证书cates
长寿命
规范

驾驶方法

1/2扫描,恒定电流

机柜重量

42公斤/平方米。

机械等级

悬挂重量支持

2T

表面平整度

间隙<0.5mm.5mm

光学等级

亮度

> 1,800cd / m2 / m2

视角

150°/ 150°/ 150°deg;/150°

灰度

8位输入,14位校正

显示颜色

16.7M

亮度调整

0~100%

电源

操作电源

90〜260v 50〜60hz

最大。能量消耗

600W / m2

平均功耗

200W / m2

控制系统

控制模式

DVI同步显示控制PC

帧更新频率

60〜85Hz的

屏幕刷新频率

300〜1000Hz的

伽玛校正

-5.0~+5.0

支持输入

复合,S视频,组件,VGA,DVI,HDMI,HD_SDI

控制距离

以太网电缆<120m or Fiber Optic<10Kmlt;10Km

支持VGA模式

1024×768,1280×1024,1600×1200,1920×1280mes; 1200,1920×1280s;1280mes;1200, 1920×1280

亮度校正

像素,模块,机柜

环境的

工作温度

-20°〜+ 60°〜+ 60°deg;~+60°

工作湿度

10〜95%rh

使用寿命

100000小时

MTBF

5000小时

防护等级

~

失控率

<0.02%

包装运输
环保纸箱,胶合板箱,飞行箱使用专业包装。
包装方式可以防止LED屏幕在运输过程中的碰撞,如损坏等。
Stout盒可以消除您在运输中的烦恼。
关于英雄
7年的LED屏幕经验,我们的工厂
具有加工,研发LED显示屏的能力,保证产品的多样性,严格的质量控制流程,确保我们的led显示屏合格。
保证
1.如果尺寸大,我们通常要求客户或经销商发送一个人学习一个星期,包括屏幕操作,维护。公司培训和住宿是免费的。
2.如果室外全彩led屏幕尺寸超过20平方米,则必须配备所有配件。
2小时内无响应,非人为,一般故障在24小时内解决,可接受的故障将在48小时内解决。
Model NO. p12
IP Rating IP65
Pixel Configuration 1R, 1G, 1B
Average Power Consumption 300W / m²m²up2;m²
Scanning Mode 1/2 Scan
Application Advertising
Module Size 192mm*192mm
Lifespan 100,000 Hours
Free Maitenance Available
Trademark HERO
Origin Shenzhen City, Guangdon Province, China
Tube Chip Color Full Color
Pixel Pitch 12mm
Display Function Video Display
Pixel Density 6944 dot / m²m²up2;m²
Display Type LED Video Display
Certification CE, RoHS, CCC
Cabinet Size Adjustable
Warranty 2 Years
Price Factory Price
Specification CE, ROHS, EMC

outdoor advertising panel/led sign for market
1. large viewing angle
2. Light weight
3, CE & ROHS Certificatescatescates
4.long lifespan
Specification

Driving Method

1/2 Scan, Constant Current

Cabinet Weight

42kg/sq.m.

Mechanical Ratings

Hanging Weight Support

2T

Surface Flatness

Gap<0.5mm.5mm

Optical Ratings

Brightness

﹥1,800cd/ m2/ m2

View Angle

150°/150°/150°deg;/150°

Gray Scale

8bits input, correction with 14bits

Display COLOR

16.7M

Brightness Adjustment

0~100%

Power Supply

Operation Power

90~260V 50~60Hz

Max. Power Consumption

600W/ m2

Average Power Consumption

200W/ m2

Control System

Control Mode

Synchronous display with control PC by DVI

Frame Update Frequency

60~85Hz

Screen Refresh Frequency

300~1000Hz

Gamma Correction

-5.0~+5.0

Support Input

Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI

Control Distance

Ethernet cable<120m or Fiber Optic<10Kmlt;10Km

Support VGA Mode

1024×768, 1280×1024, 1600×1200, 1920×1280mes;1200, 1920×1280s;1280mes;1200, 1920×1280

Brightness Correction

Pixel, Module, Cabinet

Environmental

Operating Temperature

-20°~+60°~+60°deg;~+60°

Operating Humidity

10~95% RH

Operating Life

100,000hours

MTBF

5000hours

Protection Level

~

Out of Control Rate

<0.02%

Packing and transportation
Environmental carton, plywood case, flight case USE professional packaging.
The way of Packing can prevent the collision of LED screen effectively in the process of transportation, such as falling damage,etc.
Stout box eliminate your worries in the transportation.
About HERO
7-year's experience in LED screen, our factory
has the ability of processing, researching and developing Led display to guarantee the prolificacy, strict quality control process to make sure that our led display is qualified.
Warranty
1. If the size is large, we usually require customers or dealers to send someone to learn for a week, including screen operation, maintenance. Company training and accommodation are free of charge.
2. If the size of outdoor full color led screen is more than 20 square meters , it must have all accessories.
3. Response within 2 hours, non-artificial, general fault is solved within 24 hours, acceptable failure will be solved within 48 hours.
