Mf VRLA AGM Battery Rechargeable UPS Battery (LP12-9.0)
Mf VRLA AGM电池可充电UPS电池（LP12-9.0）
| 型号。 | lp12-9.0 |
| 用法 | 汽车，巴士，UPS，电力，照明，电动自行车，船舶，电信，应急备用电源 |
| 放电率 | 高放电率 |
| 电解液 | 酸 |
| 充电 | 收费 |
| 大约维度 | 151X 65 X 91.5mm |
| 终端类型 | T2 |
| 证明 | iso14001 / iso9001 / iec / tlc / ul / ce |
| 规范 | 阀控式密封铅酸 |
| HS编码 | 85072000 |
| 类型 | 铅酸电池 |
| 额定电压 | 12V |
| 形状 | 方形电池 |
| 安装 | 包装 |
| 总高度 | 99毫米 |
| 大约重量 | 2.18公斤 |
| 额定容量（20hr 1.80V /电池） | 9AH |
| 商标 | UPLUS或客户标志 |
| 起源 | 中国 |
Mf VRLA AGM电池可充电UPS电池LP12-9.0
使用氧气复合技术：免维护
2.用于板栅的PbCaSn合金：气体较少，自放电少
3.高品质AGM分离器：延长循环寿命，防止微小的短路
4. ABS材料：增加电池容器的强度。 （阻燃ABS是可选的）;
5.高纯度原料：确保自放电率低
6.镀银铜端子（T1，T2端子），黄铜插座端子和引线端子提高电导率
认证：iso14001 / iso9001 / iec / tlc / ul / ce等
典型应用
小尺寸
1.所有用途2.不间断电源（UPS）3.电力系统（EPS）
4.紧急灯5.紧急备用电源6.自动控制系统
7.飞机信号8.警戒和安全系统9.电子设备和设备
10.DC电源11.通讯电源
2V系列
电信中心站（有线或蜂窝）
电力系统通讯
3.网络通信包括：数据传输，电视信号传输等
4.不间断电源系统（UPS-用于电信）
规范：
型号：LP12-9.0
标称电压：12V
额定容量（20HR 1.80V /电池）：9Ah
约尺寸：151X 65 X 91.5mm
总高度：99mm
约重量：2.18kg
终端类型：T2
使用氧气复合技术：免维护
2.用于板栅的PbCaSn合金：气体较少，自放电少
3.高品质AGM分离器：延长循环寿命，防止微小的短路
4. ABS材料：增加电池容器的强度。 （阻燃ABS是可选的）;
5.高纯度原料：确保自放电率低
6.镀银铜端子（T1，T2端子），黄铜插座端子和引线端子提高电导率
认证：iso14001 / iso9001 / iec / tlc / ul / ce等
典型应用
小尺寸
1.所有用途2.不间断电源（UPS）3.电力系统（EPS）
4.紧急灯5.紧急备用电源6.自动控制系统
7.飞机信号8.警戒和安全系统9.电子设备和设备
10.DC电源11.通讯电源
2V系列
电信中心站（有线或蜂窝）
电力系统通讯
3.网络通信包括：数据传输，电视信号传输等
4.不间断电源系统（UPS-用于电信）
规范：
型号：LP12-9.0
标称电压：12V
额定容量（20HR 1.80V /电池）：9Ah
约尺寸：151X 65 X 91.5mm
总高度：99mm
约重量：2.18kg
终端类型：T2
| Model NO. | LP12-9.0 |
| Usage | Car, Bus, UPS, Electric Power, Lighting, Electric Bicycle, Boat, Telecom, Emergency Backup Power Supply |
| Discharge Rate | High Discharge Rate |
| Electrolyte | Acid |
| Rechargeable | Chargeable |
| Approx Dimension | 151X 65 X 91.5mm |
| Terminal Type | T2 |
| Certification | ISO14001 / ISO9001 / IEC / Tlc / UL / CE |
| Specification | VRLA |
| HS Code | 85072000 |
| Type | Lead-Acid Batteries |
| Nominal Voltage | 12V |
| Shape | Square Battery |
| Installation | Packaged |
| Total Height | 99mm |
| Approx Weight | 2.18kg |
| Rated Capacity(20hr 1.80V/Cell) | 9ah |
| Trademark | UPLUS or Customer Logo |
| Origin | China |

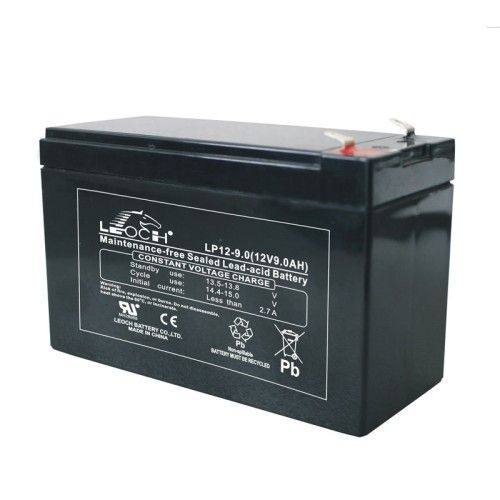

Mf VRLA AGM Battery Rechargeable UPS Battery LP12-9.0
1. Using oxygen recombination technology: maintenance-free
2. PbCaSn alloy for plate grids: less gassing, less self-discharging
3. High quality AGM separator: extend cycle life and prevent micro short circuit
4. ABS material: increase the strength of battery container. (Flame-retardant ABS is optional);
5. High purity raw material: ensure low self discharge rate
6.Silver-coated copper terminals (T1, T2 terminal), brass insert terminals and lead terminals improve the electric conductivity
Certification: ISO14001 / ISO9001 / IEC / TLC / UL / CE, etc.
Typical Applications
Small size
1.All purpose 2.Uninterruptable Power Supply (UPS) 3.Electric Power System (EPS)
4.Emergency light 5.Emergency backup power supply 6.Auto control system
7.Aircraft signal 8.Alarm and security system 9.Electronic apparatus and equipment
10.DC power supply 11.Communication power supply
2V Series
1.Tele-communication central station (wired or cellular)
2.Power system communication
3.Network communication including: data transmission, television signal transmission, etc.
4.Uninterruptable Power System (UPS- for Telecom)
Specification:
Model: LP12-9.0
Nominal Voltage: 12V
Rated Capacity(20HR 1.80V/cell): 9Ah
Approx Dimension: 151X 65 X 91.5mm
Total Height:99mm
Approx Weight:2.18kg
Terminal type: T2
1. Using oxygen recombination technology: maintenance-free
2. PbCaSn alloy for plate grids: less gassing, less self-discharging
3. High quality AGM separator: extend cycle life and prevent micro short circuit
4. ABS material: increase the strength of battery container. (Flame-retardant ABS is optional);
5. High purity raw material: ensure low self discharge rate
6.Silver-coated copper terminals (T1, T2 terminal), brass insert terminals and lead terminals improve the electric conductivity
Certification: ISO14001 / ISO9001 / IEC / TLC / UL / CE, etc.
Typical Applications
Small size
1.All purpose 2.Uninterruptable Power Supply (UPS) 3.Electric Power System (EPS)
4.Emergency light 5.Emergency backup power supply 6.Auto control system
7.Aircraft signal 8.Alarm and security system 9.Electronic apparatus and equipment
10.DC power supply 11.Communication power supply
2V Series
1.Tele-communication central station (wired or cellular)
2.Power system communication
3.Network communication including: data transmission, television signal transmission, etc.
4.Uninterruptable Power System (UPS- for Telecom)
Specification:
Model: LP12-9.0
Nominal Voltage: 12V
Rated Capacity(20HR 1.80V/cell): 9Ah
Approx Dimension: 151X 65 X 91.5mm
Total Height:99mm
Approx Weight:2.18kg
Terminal type: T2
