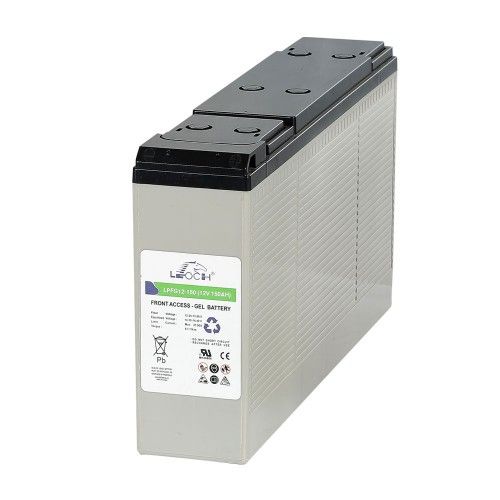

China Manufacturer Offer 12V Mf Solar Battery with Front Terminal

China Manufacturer Offer 12V Mf Solar Battery with Front Terminal

中国制造商提供12V Mf太阳能电池与前端

100+
10-150 USD

加入意向
型号。 lpfg12-150
用法 汽车,巴士,UPS,电力,照明,电动自行车,船舶,电信,应急备用电源
放电率 高放电率
电解液
充电 收费
大约重量 47.4公斤
证明 iso14001 / iso9001 / iec / tlc / ul / ce
规范 凝胶
HS编码 85072000
类型 铅酸电池
标称电压 12V
形状 方形电池
安装 固定
尺寸 551mm X110mm X 287mm
终端类型 T6
商标 UPLUS或客户标志
起源 中国
一般特征:
特别适用于19寸或23寸电源柜
前端子使安装,维护和监控变得容易
3.屏蔽设计保护端子不受短路影响,外观美观
4.独特的排气阀设计:减少水分流失,防止空气/火花进入里面
5.厚板,特殊配方的糊和制版工艺使用寿命长
6. ABS材料:增加电池容器的强度(阻燃ABS是可选的)
7.长时间放电
8.适用于空间和存储电力使用
特殊板设计,循环寿命长
10.使用特殊的铅 - 钙合金提高电网防腐性能,延长使用寿命的电池
11.使用专用分离器提高电池性能
12.高热容量,降低热失控和干燥的风险,可在恶劣的环境中使用
高气体重组反应效率
少量水分流失,无电解质分层现象
长存储时间
16.良好的深度放电弹性性能
17.使用气体二氧化硅,颗粒度小,表面积大
认证:ISO14001 / ISO9001 / IEC / Tlc / UL / CE等
典型应用:
适用于标准19英寸或23英寸电源柜
通信系统网络连接设备
特殊网络或局域网电力系统
UPS,备用电源
电站系统
海洋系统
产品规格:

模型
公称
电压
(V)
额定容量(AH) 大约维度
重量
终奌站
类型
20小时 10HR 5小时 1小时 长度 宽度 高度 总高度
1.80
V /细胞
1.80
V /细胞
1.75
V /细胞
1.60
V /细胞
毫米 在。 毫米 在。 毫米 在。 毫米 在。 公斤
lpfg12-70 12 70 65.8 57.8 40.3 564 22.2 114 4.49 187 7.36 187 7.36 26.0 57.3 T6
lpfg12-100 12 90 85 74.5 49.1 508 20.0 110 4.33 238.5 9.39 238.5 9.39 32.3 71.2 T13
lpfg12-100h 12 96 90 79.2 52.2 394 15.51 110 4.33 285 11.22 285 11.22 35.0 77.2 T6
lpfg12-150 12 144 135 118.8 78.3 551 21.69 110 4.33 287 11.3 287 11.3 47.4 104.5 T6
lpfg12-180 12 158 150 132 87.0 550 21.65 126 4.96 280 11.02 280 11.02 52.0 115.0 T13
Model NO. LPFG12-150
Usage Car, Bus, UPS, Electric Power, Lighting, Electric Bicycle, Boat, Telecom, Emergency Backup Power Supply
Discharge Rate High Discharge Rate
Electrolyte Acid
Rechargeable Chargeable
Approx Weight 47.4kg
Certification ISO14001 / ISO9001 / IEC / Tlc / UL / CE
Specification GEL
HS Code 85072000
Type Lead-Acid Batteries
Nominal Voltage 12V
Shape Square Battery
Installation Fixed
Dimension 551mm X110mm X 287mm
Terminal Type T6
Trademark UPLUS or Customer Logo
Origin China
General Features:
1. Specifically ideal for 19 inch or 23 inch power cabinets
2. Front terminals make the installation, maintenance and supervision easy
3. Shield designs protect terminals from short circuit and show good appearance
4. Unique vent valve design: reduce water losing and prevent air/spark going inside
5. Thick plates, special formula of paste and plate making process for a long service life
6. ABS material: increase the strength of battery container (Flame-retardant ABS is optional)
7. Long time discharge
8. Suitable for space and storage electric power use
9. Special plate design, long cycle lifetime
10. Using special lead-calcium alloy to boost up the grid anti-corrosive performance and extend the battery using lifetime
11. Using special separator to boost up the battery performance inside
12. High thermal capacity, reduce the risk of thermal out of control and drying hard, can be used in bad environment
13. High gas recombined reaction efficiency
14. Little water losing, no electrolyte stratification phenomenon
15. Long storage time
16. Good deep discharge resilience performance
17. Using gas silicon dioxide, small granule degree, bigger than surface area
Certifications: ISO14001 / ISO9001 / IEC / Tlc / UL / CE, etc.
Typical Applications:
For standard 19 inch or 23 inch power cabinets
Network connection equipment of communication system
Power system of special network or local area network
UPS, standby power supply
Power station systems
Marine systems
Specifications:

Model
Nominal
Voltage
(V)
Rated Capacity(AH) Approx Dimension Approx
Weight
Terminal
type
20HR 10HR 5HR 1HR Length Width Height Total Height
1.80
V/cell
1.80
V/cell
1.75
V/cell
1.60
V/cell
mm in. mm in. mm in. mm in. kg lbs
LPFG12-70 12 70 65.8 57.8 40.3 564 22.2 114 4.49 187 7.36 187 7.36 26.0 57.3 T6
LPFG12-100 12 90 85 74.5 49.1 508 20.0 110 4.33 238.5 9.39 238.5 9.39 32.3 71.2 T13
LPFG12-100H 12 96 90 79.2 52.2 394 15.51 110 4.33 285 11.22 285 11.22 35.0 77.2 T6
LPFG12-150 12 144 135 118.8 78.3 551 21.69 110 4.33 287 11.3 287 11.3 47.4 104.5 T6
LPFG12-180 12 158 150 132 87.0 550 21.65 126 4.96 280 11.02 280 11.02 52.0 115.0 T13
