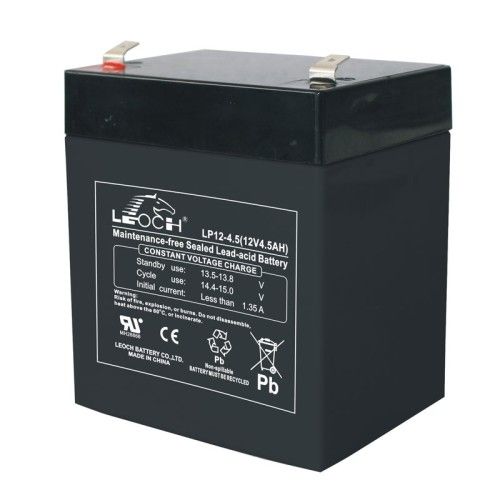

12V 4.5A Deep Cycle Mf UPS Battery Solar Battery
12V 4.5A深循环Mf UPS电池太阳能电池
| 型号。 | lp12-4.5 |
| 用法 | UPS，电力，照明，电信，应急备用电源 |
| 放电率 | 高放电率 |
| 电解液 | 酸 |
| 充电 | 收费 |
| 终端类型 | T1 |
| 大约重量 | 1.48公斤 |
| 总高度 | 107毫米 |
| 规范 | 阀控式密封铅酸 |
| HS编码 | 85072000 |
| 类型 | 铅酸电池 |
| 标称电压 | 12V |
| 形状 | 方形电池 |
| 安装 | 固定 |
| 证明 | iso14001 / iso9001 / iec / tlc / ul / ce |
| 额定容量（20小时1.8V /电池） | 4.5AH |
| 大约维度 | 90X 70 X 101mm |
| 商标 | UPLUS或客户标志 |
| 起源 | 中国 |
使用氧气复合技术：免维护
2.用于板栅的PbCaSn合金：气体较少，自放电少
3.高品质AGM分离器：延长循环寿命，防止微小的短路
4. ABS材料：增加电池容器的强度。 （阻燃ABS是可选的）;
5.高纯度原料：确保自放电率低
6.镀银铜端子（T1，T2端子），黄铜插座端子和引线端子提高电导率
认证：iso14001 / iso9001 / iec / tlc / ul / ce等
典型应用
小尺寸
1.所有用途2.不间断电源（UPS）3.电力系统（EPS）
4.紧急灯5.紧急备用电源6.自动控制系统
7.飞机信号8.警戒和安全系统9.电子设备和设备
10.DC电源11.通讯电源
2V系列
电信中心站（有线或蜂窝）
电力系统通讯
3.网络通信包括：数据传输，电视信号传输等
4.不间断电源系统（UPS-用于电信）
网址：http://www.leoch.com
联系人：加里
2.用于板栅的PbCaSn合金：气体较少，自放电少
3.高品质AGM分离器：延长循环寿命，防止微小的短路
4. ABS材料：增加电池容器的强度。 （阻燃ABS是可选的）;
5.高纯度原料：确保自放电率低
6.镀银铜端子（T1，T2端子），黄铜插座端子和引线端子提高电导率
认证：iso14001 / iso9001 / iec / tlc / ul / ce等
典型应用
小尺寸
1.所有用途2.不间断电源（UPS）3.电力系统（EPS）
4.紧急灯5.紧急备用电源6.自动控制系统
7.飞机信号8.警戒和安全系统9.电子设备和设备
10.DC电源11.通讯电源
2V系列
电信中心站（有线或蜂窝）
电力系统通讯
3.网络通信包括：数据传输，电视信号传输等
4.不间断电源系统（UPS-用于电信）
模型 | 公称 电压 (V) | 额定容量（AH） | 大约维度 | 约 重量 | 终奌站 类型 | |||||||||||
| 20小时 | 10HR | 5小时 | 1小时 | 长度 | 宽度 | 高度 | 总高度 | |||||||||
| 1.80 V /细胞 | 1.80 V /细胞 | 1.75 V /细胞 | 1.60 V /细胞 | 毫米 | 在。 | 毫米 | 在。 | 毫米 | 在。 | 毫米 | 在。 | 公斤 | 磅 | |||
| lp12-60 | 12 | 62.4 | 60.0 | 51.5 | 36.6 | 260 | 10.2 | 168 | 6.61 | 208 | 8.19 | 214 | 8.43 | 18.4 | 40.8 | T6 |
| lp12-65 | 12 | 65.0 | 62.5 | 53.8 | 38.1 | 348 | 13.7 | 167 | 6.57 | 178 | 7.01 | 178 | 7.01 | 19.2 | 42.3 | T6 |
| lp12-70 | 12 | 72.8 | 70.0 | 60.3 | 42.7 | 348 | 13.7 | 167 | 6.57 | 178 | 7.01 | 178 | 7.01 | 21.6 | 47.6 | T6 |
| lp12-75 | 12 | 78.0 | 75.0 | 64.5 | 45.8 | 260 | 10.2 | 168 | 6.61 | 208 | 8.19 | 214 | 8.43 | 22.3 | 49.6 | T6 |
| lp12-80 | 12 | 83.2 | 80.0 | 69.0 | 48.8 | 260 | 10.2 | 168 | 6.61 | 208 | 8.19 | 214 | 8.43 | 23.8 | 52.9 | T6 |
| lp12-90 | 12 | 93.6 | 90 | 77.5 | 54.9 | 330 | 13.0 | 173 | 6.81 | 212 | 8.35 | 220 | 8.66 | 27.8 | 61.7 | T11 |
| lp12-100 | 12 | 104 | 100 | 88.0 | 63.8 | 330 | 13.0 | 173 | 6.81 | 212 | 8.35 | 220 | 8.66 | 30.6 | 67.9 | T11 |
| lp12-120 | 12 | 124.8 | 120 | 103.2 | 73.2 | 408 | 16.1 | 177 | 6.97 | 225 | 8.86 | 225 | 8.86 | 34.0 | 75.6 | T11 |
| lp12-135 | 12 | 140.4 | 135 | 116.0 | 82.4 | 345 | 13.6 | 172 | 6.77 | 274 | 10.8 | 280 | 11.0 | 41.2 | 90.8 | T11 |
| lp12-150 | 12 | 156 | 150 | 129 | 91.5 | 485 | 19.1 | 170 | 6.69 | 238.5 | 9.39 | 239 | 9.40 | 43.2 | 95.9 | T11 |
| lp12-180 | 12 | 187.2 | 180 | 155 | 109.8 | 532 | 20.9 | 207 | 8.15 | 214 | 8.42 | 220 | 8.66 | 53.6 | 119.1 | T11 |
| lp12-200 | 12 | 208 | 200 | 172 | 122.0 | 522 | 20.6 | 240 | 9.45 | 218 | 8.58 | 224 | 8.82 | 59.8 | 132.7 | T11 |
| lp12-250 | 12 | 260 | 250 | 215 | 152.5 | 522 | 20.6 | 268 | 10.6 | 220 | 8.66 | 226 | 8.9 | 72.5 | 161 | T11 |
网址：http://www.leoch.com
联系人：加里
| Model NO. | LP12-4.5 |
| Usage | UPS, Electric Power, Lighting, Telecom, Emergency Backup Power Supply |
| Discharge Rate | High Discharge Rate |
| Electrolyte | Acid |
| Rechargeable | Chargeable |
| Terminal Type | T1 |
| Approx Weight | 1.48kg |
| Total Height | 107mm |
| Specification | VRLA |
| HS Code | 85072000 |
| Type | Lead-Acid Batteries |
| Nominal Voltage | 12V |
| Shape | Square Battery |
| Installation | Fixed |
| Certification | ISO14001 / ISO9001 / IEC / Tlc / UL / CE |
| Rated Capacity(20hr 1.8V/Cell) | 4.5ah |
| Approx Dimension | 90X 70 X 101mm |
| Trademark | UPLUS or Customer Logo |
| Origin | China |
1. Using oxygen recombination technology: maintenance-free
2. PbCaSn alloy for plate grids: less gassing, less self-discharging
3. High quality AGM separator: extend cycle life and prevent micro short circuit
4. ABS material: increase the strength of battery container. (Flame-retardant ABS is optional);
5. High purity raw material: ensure low self discharge rate
6.Silver-coated copper terminals (T1, T2 terminal), brass insert terminals and lead terminals improve the electric conductivity
Certification: ISO14001 / ISO9001 / IEC / TLC / UL / CE, etc.
Typical Applications
Small size
1.All purpose 2.Uninterruptable Power Supply (UPS) 3.Electric Power System (EPS)
4.Emergency light 5.Emergency backup power supply 6.Auto control system
7.Aircraft signal 8.Alarm and security system 9.Electronic apparatus and equipment
10.DC power supply 11.Communication power supply
2V Series
1.Tele-communication central station (wired or cellular)
2.Power system communication
3.Network communication including: data transmission, television signal transmission, etc.
4.Uninterruptable Power System (UPS- for Telecom)
Website: http://www.leoch.com
Contact: Gary
2. PbCaSn alloy for plate grids: less gassing, less self-discharging
3. High quality AGM separator: extend cycle life and prevent micro short circuit
4. ABS material: increase the strength of battery container. (Flame-retardant ABS is optional);
5. High purity raw material: ensure low self discharge rate
6.Silver-coated copper terminals (T1, T2 terminal), brass insert terminals and lead terminals improve the electric conductivity
Certification: ISO14001 / ISO9001 / IEC / TLC / UL / CE, etc.
Typical Applications
Small size
1.All purpose 2.Uninterruptable Power Supply (UPS) 3.Electric Power System (EPS)
4.Emergency light 5.Emergency backup power supply 6.Auto control system
7.Aircraft signal 8.Alarm and security system 9.Electronic apparatus and equipment
10.DC power supply 11.Communication power supply
2V Series
1.Tele-communication central station (wired or cellular)
2.Power system communication
3.Network communication including: data transmission, television signal transmission, etc.
4.Uninterruptable Power System (UPS- for Telecom)
Model | Nominal Voltage (V) | Rated Capacity(AH) | Approx Dimension | Approx Weight | Terminal type | |||||||||||
| 20HR | 10HR | 5HR | 1HR | Length | Width | Height | Total Height | |||||||||
| 1.80 V/cell | 1.80 V/cell | 1.75 V/cell | 1.60 V/cell | mm | in. | mm | in. | mm | in. | mm | in. | kg | lbs | |||
| LP12-60 | 12 | 62.4 | 60.0 | 51.5 | 36.6 | 260 | 10.2 | 168 | 6.61 | 208 | 8.19 | 214 | 8.43 | 18.4 | 40.8 | T6 |
| LP12-65 | 12 | 65.0 | 62.5 | 53.8 | 38.1 | 348 | 13.7 | 167 | 6.57 | 178 | 7.01 | 178 | 7.01 | 19.2 | 42.3 | T6 |
| LP12-70 | 12 | 72.8 | 70.0 | 60.3 | 42.7 | 348 | 13.7 | 167 | 6.57 | 178 | 7.01 | 178 | 7.01 | 21.6 | 47.6 | T6 |
| LP12-75 | 12 | 78.0 | 75.0 | 64.5 | 45.8 | 260 | 10.2 | 168 | 6.61 | 208 | 8.19 | 214 | 8.43 | 22.3 | 49.6 | T6 |
| LP12-80 | 12 | 83.2 | 80.0 | 69.0 | 48.8 | 260 | 10.2 | 168 | 6.61 | 208 | 8.19 | 214 | 8.43 | 23.8 | 52.9 | T6 |
| LP12-90 | 12 | 93.6 | 90 | 77.5 | 54.9 | 330 | 13.0 | 173 | 6.81 | 212 | 8.35 | 220 | 8.66 | 27.8 | 61.7 | T11 |
| LP12-100 | 12 | 104 | 100 | 88.0 | 63.8 | 330 | 13.0 | 173 | 6.81 | 212 | 8.35 | 220 | 8.66 | 30.6 | 67.9 | T11 |
| LP12-120 | 12 | 124.8 | 120 | 103.2 | 73.2 | 408 | 16.1 | 177 | 6.97 | 225 | 8.86 | 225 | 8.86 | 34.0 | 75.6 | T11 |
| LP12-135 | 12 | 140.4 | 135 | 116.0 | 82.4 | 345 | 13.6 | 172 | 6.77 | 274 | 10.8 | 280 | 11.0 | 41.2 | 90.8 | T11 |
| LP12-150 | 12 | 156 | 150 | 129 | 91.5 | 485 | 19.1 | 170 | 6.69 | 238.5 | 9.39 | 239 | 9.40 | 43.2 | 95.9 | T11 |
| LP12-180 | 12 | 187.2 | 180 | 155 | 109.8 | 532 | 20.9 | 207 | 8.15 | 214 | 8.42 | 220 | 8.66 | 53.6 | 119.1 | T11 |
| LP12-200 | 12 | 208 | 200 | 172 | 122.0 | 522 | 20.6 | 240 | 9.45 | 218 | 8.58 | 224 | 8.82 | 59.8 | 132.7 | T11 |
| LP12-250 | 12 | 260 | 250 | 215 | 152.5 | 522 | 20.6 | 268 | 10.6 | 220 | 8.66 | 226 | 8.9 | 72.5 | 161 | T11 |
Website: http://www.leoch.com
Contact: Gary
