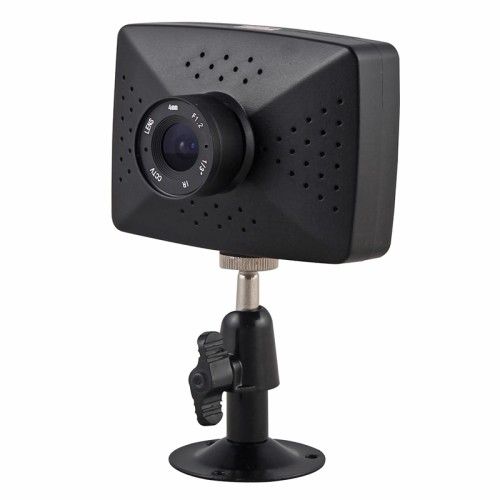

0.3megapixel Baby Monitor Small Computer WiFi Mini Camera (SX-WF31)
0.3微像素婴儿监视器小型电脑WiFi迷你摄像机（SX-WF31）
| 型号。 | SX-wf31 |
| 样式 | 迷你相机 |
| 传感器 | CMOS |
| 类 | 手动对焦镜头 |
| 特征 | 高清晰度，迷你尺寸 |
| 传感器尺寸 | 1/4英寸 |
| 产品名称 | 0.3万像素1/4 CMOS WiFi相机 |
| 传感器类型 | 1/4厘米 |
| 商标 | 石新或oem |
| 起源 | 中国 |
| 技术 | 无线 |
| 类型 | 录影机 |
| 水平分辨率 | 0.3百万像素 |
| 证明 | ce，fcc，rohs |
| 有效距离 | 10-30m |
| 遥控 | 无遥控器 |
| 型号 | SX-Wf31 |
| 解析度 | 0.3megapixel |
| 规范 | ce，fcc，rohs |
| HS编码 | 8529904100 |
0.3万像素婴儿监视器小型WIFI迷你相机（SX-WF31）
WiFi相机，P2P相机，婴儿监视器，即插即用WiFiCAMiFiCAMFiCAM
1.操作简单：只需连接WiFi信号，无需软件或驱动程序（如PC相机）
2.使用CMOS镜头。分辨率：640 * 480;支持图像传输暂时
4.支持IE，Google和Safari浏览器
5.适用于iPhone，Android智能手机和MID
6.标准迷你USB接口
7.内置可充电电池，可继续工作3小时
具有时尚的外观和支架安装
应用：
适用于小型商业场所，家庭办公室，
仓库等要求高品质的室内监控
也适合作为婴儿监护仪
模型 参数 | SX-wf31 0.3百万像素1/4“CMOS WiFi CameraCamera |
| 图像传感器 | 1/4'CMOS传感器 |
| 迷你照明 | 0.5LUX |
| 镜片 | F = 6mm，F = 1.8，手动对焦 |
| 压缩 | MJPEG |
| 视频比特率 | 128Kbps的-2Mbps的 |
| 解析度 | 640 * 480（VGA）/ 320 * 240（QVGA） |
| 帧率 | PC机30fps，智能手机15fps |
| 图像翻转 | 镜像/翻转 |
| 网络协议 | tcp / ip，udp / ip，http，dhcp |
| 无线上网 | 的IEEE802.11b / g / n的 |
| 频率 | 2.4GHz的-2.4835ghz |
| 安全 | 镜面翻转，密码保护 |
| IE浏览器 | IE7.0以上版本，Google，Safari |
| 安全 | 64/128位wep，wpa / wpa2，wpa-psk-wpa2-psk.wps |
| 传输速度 | 11B：11Mbps的 |
| 传输距离 | 户外：300米 室内：10米（取决于环境） |
| 工作温度和湿度idity | -0ºc〜50ºcc℃〜50℃rdm;CC~50ºC 10％-80％无冷凝 |
| 电源和消耗ption | DC5V（1020mah）;最大2w |
| 工作时间 | 约3小时 |
| 尺寸 | 87毫米（L）*62毫米（W）*38毫米（H） |
| 重量 | 0.3公斤 |
如有任何问题，请随时与我们联系。我们将竭尽全力与您合作。
| Model NO. | SX-WF31 |
| Style | Mini Camera |
| Sensor | CMOS |
| Kind | Manual Focus Lens |
| Feature | High Definition, Mini Size |
| Sensor Size | 1/4 inch |
| Product Name | 0.3megapixel 1/4 CMOS WiFi Camera |
| Sensor Type | 1/4 CMOS |
| Trademark | SHIXIN OR OEM |
| Origin | China |
| Technology | Wireless |
| Type | Video Camera |
| Horizontal Resolution | 0.3 Megapixel |
| Certification | CE, FCC, RoHS |
| Effective Distance | 10-30m |
| Remote Control | Without Remote Control |
| Model Number | Sx-Wf31 |
| Resolution | 0.3megapixel |
| Specification | CE, FCC, RoHS |
| HS Code | 8529904100 |
0.3Megapixel Baby monitor Small WIFI Mini Camera (SX-WF31)
WiFi Camera, P2P Camera, Baby Monitor, Plug & Play WiFiCAMiFiCAMFiCAM
1. Easy to operate: Only to connect with WiFi signal, no need software or driver (like a PC camera)
2. With CMOS Lens. Resolution: 640*480; Support image transmission for the time being
4. Support IE, Google and Safari browser
5. Suitable for iPhone, Android smart phones and MID
6. Standard mini USB interface
7. Built-in rechargeable battery, can continues working to 3 hours
With fashionable appearance, and bracket for installing
Application:
It is suitable used for small business place, homes, offices,
Warehouses and other requirements of high quality indoor surveillance
Also suitable as a baby monitor
Model Parameter | SX-WF31 0.3 Megapixels 1/4' CMOS WiFi CameraCamera |
| Image sensor | 1/4' CMOS sensorsensor |
| Mini illumination | 0.5Lux |
| Lens | F=6mm, F=1.8, manual focus |
| Compression | MJPEG |
| Video bit rate | 128Kbps-2Mbps |
| Resolution | 640*480(VGA)/320*240(QVGA) |
| Frame rate | 30fps for PC;15fps for smart phone |
| Image flip | Mirror/Flip |
| Network protocol | TCP/IP, UDP/IP, HTTP, DHCP |
| WiFi | IEEE802.11b/g/n |
| Frequency | 2.4GHz-2.4835GHz |
| Security | Mirror flip, password protection |
| IE browser | IE7.0 or above version, Google, Safari |
| Security | 64/128-bit WEP, WPA/WPA2,WPA-PSK-WPA2-PSK.WPS |
| Transmission speed | 11b:11Mbps |
| Transmission distance | Outdoor:300meter Indoor: 10meter (depends on the environment) |
| Working temperature& humidityidityidity | -0ºC~50ºCC~50ºCrdm;CC~50ºC 10%-80% non-condensing |
| Power supply & consumptionptionption | DC5V(1020MAH); 2W MAX |
| Working time | About 3 hours |
| Dimension | 87mm(L)*62mm(W)*38mm(H) |
| Weight | 0.3kg |
If there is any question, please don't hesitate to contact us. We will try our best to cooperate with you.
