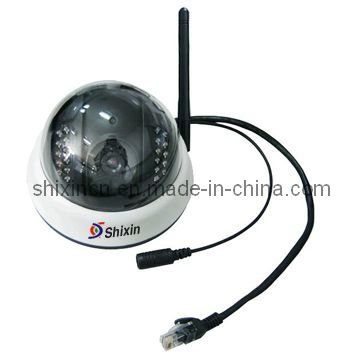

1.3MP Wireless IP Camera for Day/Night Full HD 960p Resolution
1.3MP无线网络摄像机用于日/夜全高清960p分辨率
| 型号。 | IP-02hw |
| 样式 | 圆顶相机 |
| 传感器 | CMOS |
| 证明 | ce，fcc，rohs |
| 有效距离 | 10-30m |
| 无线 | 红外夜版 |
| 商标 | 石新或OEM或ODM |
| 规范 | ce，fcc，rohs |
| HS编码 | 8529904100 |
| 技术 | 无线 |
| 类型 | 网络摄像机 |
| 水平分辨率 | 960p |
| 特征 | 高清晰度，迷你尺寸，自动BLC |
| 传感器尺寸 | 1/4英寸 |
| 早晚 | 圆顶相机 |
| 运输包装 | 正常 |
| 起源 | 中国深圳 |
1.3MP无线IP摄像机，全高清960P分辨率
日/夜，22PCS红外LED，红外距离可达12m，
2. TCP / IP网络监控，MJPEG压缩
3.内置Web服务器
4.可以设置不同的访问级别和密码保护
5.内置Wi-Fi
6.支持USB1.1 / 2.0
7.最多可创建8个用户访问帐户和密码
8.支持运动检测，通过电子邮件报警
9.远程Multi-iCAMView同时使用iMultiView软件，DDNS设置和免费捆绑软件
日/夜，22PCS红外LED，红外距离可达12m，
2. TCP / IP网络监控，MJPEG压缩
3.内置Web服务器
4.可以设置不同的访问级别和密码保护
5.内置Wi-Fi
6.支持USB1.1 / 2.0
7.最多可创建8个用户访问帐户和密码
8.支持运动检测，通过电子邮件报警
9.远程Multi-iCAMView同时使用iMultiView软件，DDNS设置和免费捆绑软件
| 参数 | 产品规格 |
| 镜片 | F = 2.0 / 4玻璃，1过滤器/ F1 = 6.0mm |
| 最低照度 | 5.0 Lux @ F2.0，22pcs红外LED，IR距离驾驶室为12m |
| 视频 | MJPEG压缩 视频输入：1ch USB 特点：图像尺寸和质量调整 |
| 视频分辨率 | 1280 * 960 @ 30fps |
| 传感器 | 颜色1/3'FormatFormat |
| 无线协议 | 的IEEE802.11b / g的 |
| usb中枢 | 支持 |
| 报警口 | RS232 |
| 即 | 协议：Internet TCP / IP（标准） 光学系统：Microsoft Windows; Linux; Unix，Mac OS BrowserInternet Explorer 4.x或更高版本; Netscape Navigator 4.x或更高版本 |
| 安全 | 管理员，普通用户，匿名用户 |
| 语言 | 英文，简单/传统中文，韩文，日文，法文，德文，俄文，西班牙文，葡萄牙文 |
| 重量 | 0.6公斤 |
| 尺寸 | 16.2（l）×9（h）×14.2（w） |
| 工作温度 | 0〜50度〜90度（相对湿度） |
| 功率 | 5.3v dc，2a |
| 广泛的应用 | 适用于家庭，学校，社区等 |
| Model NO. | IP-02HW |
| Style | Dome Camera |
| Sensor | CMOS |
| Certification | CE, FCC, RoHS |
| Effective Distance | 10-30m |
| Wireless | IR Night Version |
| Trademark | Shixin or OEM or ODM |
| Specification | CE, FCC, RoHS |
| HS Code | 8529904100 |
| Technology | Wireless |
| Type | IP Camera |
| Horizontal Resolution | 960p |
| Feature | High Definition, Mini Size, Auto BLC |
| Sensor Size | 1/4 inch |
| Day/Night | Dome Camera |
| Transport Package | Normal |
| Origin | Shenzhen, China |
1.3MP Wireless IP Camera for Day/Night with Full HD 960P Resolution
1. Day/Night, with 22PCS IR LED, IR distance can be 12m,
2. TCP/IP Network Surveillance, MJPEG Compression
3. Built-in web server
4. Can set up different access levels and password protection
5. Built-in Wi-Fi
6. Support USB1.1/2.0
7. Create up to 8 User Access Accounts and Passwords
8. Support Motion detection, Alarm via Email
9. Remote Multi-iCAMView using iMultiView software at the same time, DDNS setup and free bundle software
1. Day/Night, with 22PCS IR LED, IR distance can be 12m,
2. TCP/IP Network Surveillance, MJPEG Compression
3. Built-in web server
4. Can set up different access levels and password protection
5. Built-in Wi-Fi
6. Support USB1.1/2.0
7. Create up to 8 User Access Accounts and Passwords
8. Support Motion detection, Alarm via Email
9. Remote Multi-iCAMView using iMultiView software at the same time, DDNS setup and free bundle software
| Parameters | Specifications |
| Lens | F=2.0/4 Glass, 1 Filter/Fl=6.0mm |
| Minimum Illumination | 5.0 Lux @ F2.0, 22pcs IR LED, IR distance cab be 12m |
| Video | MJPEG compression Video input:1ch USB Feature:image size and quality adjustment |
| Video Resolution | 1280*960 @ 30fps |
| Sensor | Color 1/3' FormatFormat |
| Wireless Protocol | IEEE802.11b/g |
| USB HUB | Support |
| Alarm port | RS232 |
| IE | Protocol: Internet TCP/IP(Standard) Optical system:Microsoft Windows ;Linux ;Unix, Mac OS BrowserInternet Explorer 4.x or higher;Netscape Navigator 4.x or higher |
| Safety | Administrator, common user, anonymous user |
| Language | English, Simple/Tradition Chinese, Korean, Japanese, French, German, Russian, Spanish,Portuguese^ |
| Weight | 0.6KG |
| Dimension | 16.2(L) X 9(H) X 14.2(W) |
| Working Temperature | 0~50 degree- 90degree(relative humidity) |
| Power | 5.3V DC ,2A |
| Wide application | Applicable for home , school ,community and so on |
