2.0MP星光彩色图像盒IP摄像机

| 型号。 | WDM-ip200b |
| 样式 | 相机相机 |
| 传感器 | CMOS |
| 水平分辨率 | 高清960p 1280 * 960分辨率 |
| 证明 | ce,fcc,rohs,sgs |
| 有效距离 | 10-30m |
| 遥控 | 无遥控器 |
| 芯片组 | 1/2英寸2.0m像素Sony Imx185 CMOS |
| 镜片 | CS |
| Comatibility | 支持海康威视,大华,Xm Cms,Seetong UC2 |
| Onvif协议 | 支持2.0版本 |
| 保证 | 2年 |
| 运输包装 | 中性包装 |
| 起源 | 中国深圳 |
| 技术 | 星光 |
| 类型 | 网络摄像机 |
| HDMI格式 | 960P |
| 类 | 6/8 / 12mm CS Glimmer镜头 |
| 特征 | 高清晰度,迷你尺寸,自动BLC |
| 传感器尺寸 | 1/2英寸 |
| 选项功能 | TF卡插槽,闹钟,WiFi,4G等 |
| 特殊功能 | 超清晰日夜彩色图像 |
| 移动P2p | 支持Android,Ios访问 |
| 压缩 | H.264主要简介@Level 3 |
| 电源 | 12VDC |
| 商标 | Wardmay / OEM |
| 规范 | SGS |
| HS编码 | 8525801390 |
模型 | WDM-ip200b |
2.0MP星光彩色图像盒IP摄像机 | |
图像传感器 | 1/2'2.0m像素索尼imx185 cmos5 cmos |
动态范围 | 100分贝 |
SNR | ≥50db(agc关闭)关闭)OFF) |
镜片 | C / CS |
照明 | 0.5lux@f1.2(彩色模式); 0.3 lux@f1.2(b&w模式); 0lux(ir cut on)t on)T ON) |
D / N模式 | 自动IR-CUT开关,B / W,彩色,外部控制 |
增益控制 | 自动/手动 |
白平衡 | 汽车,室内,室外,钠灯,手册 |
DNR | 支持2dnr,3dnr |
曝光模式 | 程序模式(可自定义快门间隔),快门模式(1 / 5-1 / 20,000s),支持慢快门 |
视频压缩 | H.265主要资料 / H.264高画质/ M-JPEG |
最大分辨率 | 1920×1080 @ 25fps的 |
视频分辨率 | 主流:1920x1080,1280x960,1280×720,720×576,640×480s; 576,640×480es;480s;576,640×480 |
子:640××480,480x360,352×288320 240176×144,OFFmes; 240176×144,OFF44,OFFmes;240,176×144,OFF | |
MJPEG:1280×720,关闭 | |
输出码率 | cbr或vbr:32k〜10m |
OSD | 支持频道名称,屏幕日期 |
访问NO。 | 3个主流用户,6个用户在子流 |
网络协议 | TCP / IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,HTTPS,P2P |
ONVIF协议 | 标准ONVIF2.4 |
兼容性 | 支持hikvision,dahua,xm cms,seetong uc2,aebell nvr i8 onvif平台,nvr onvif协议 |
移动P2P | 支持Android,IOS访问 |
网络接口 | 1ch 10 / 100BaseT以太网,RJ45 |
可选功能 | TF卡插槽,报警器,WIFI,4G等 |
功率 | 12vdc@0.20a |
尺寸 | 180 * 65 *62毫米 |
工作温度 | -30°C〜60°C〜60°Ceg;C~60°C |
工作湿度 | 0%-90%rh(无凝结) |
| Model NO. | WDM-IP200B |
| Style | Box Camera |
| Sensor | CMOS |
| Horizontal Resolution | HD 960p 1280*960 Resolution |
| Certification | CE, FCC, RoHS, SGS |
| Effective Distance | 10-30m |
| Remote Control | Without Remote Control |
| Chipset | 1/2 Inch 2.0m Pixel Sony Imx185 CMOS |
| Lens | CS |
| Comatibility | Support Hikvision, Dahua,Xm Cms, Seetong UC2 |
| Onvif Protocols | Support 2.0 Version |
| Warranty | 2 Years |
| Transport Package | Neutral Package |
| Origin | Shenzhen, China |
| Technology | Starlight |
| Type | IP Camera |
| HDMI Format | 960P |
| Kind | 6 / 8 / 12mm CS Glimmer Lens |
| Feature | High Definition, Mini Size, Auto BLC |
| Sensor Size | 1/2 Inch |
| Option Function | TF Card Slot, Alarm, WiFi, 4G etc |
| Special Features | Super Clear Day and Night Color Image |
| Mobile P2p | Support Android, Ios Visit |
| Compression | H.264 Main Profile @Level 3 |
| Power Supply | 12VDC |
| Trademark | Wardmay/OEM |
| Specification | SGS |
| HS Code | 8525801390 |
Model | WDM-IP200B |

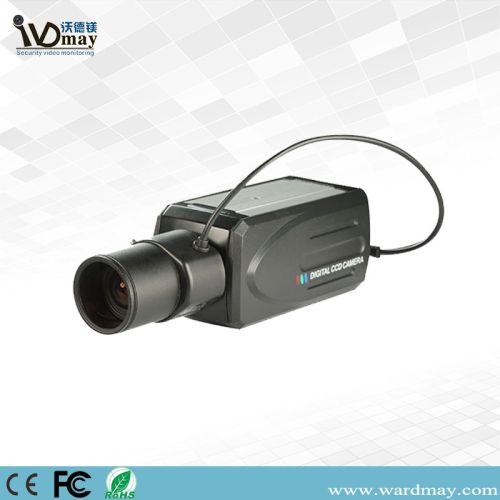

2.0MP Starlight Color Image Box IP Camera | |
Image Sensor | 1/2' 2.0M Pixel Sony IMX185 CMOS5 CMOS |
Dynamic Range | 100dB |
SNR | ≥50dB(AGC OFF)OFF)OFF) |
Lens | C/CS |
Illumination | 0.5Lux@F1.2(Color Mode);0.3 Lux@F1.2(B&W mode);0Lux (IR CUT ON)T ON)T ON) |
D/N mode | Auto IR-CUT switch, B/W, Color, Outer control |
Gain Control | Auto/ Manual |
White Balance | Auto, Indoor, Outdoor, Sodium Lamp, Manual |
DNR | Support 2DNR,3DNR |
Exposure Mode | Program mode (customizable shutter interval ), shutter mode (1/5-1/20,000s), support slow shutter |
Video Compression | H.265 Main Profile / H.264 High profile / M-JPEG |
Max Resolution | 1920x1080@25fps |
Video Resolution | Main stream:1920x1080,1280x960,1280×720,720×576,640×480s;576,640×480es;480s;576,640×480 |
Substream:640×480,480x360,352×288,320×240,176×144,OFFmes;240,176×144,OFF44,OFFmes;240,176×144,OFF | |
MJPEG:1280x720,OFF | |
Output code rate | CBR or VBR: 32K~10M |
OSD | Support Channel name, date on screen |
Visit NO. | 3 Users in Mainstream, 6 Users in Substream |
Network Protocols | TCP/IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,HTTPS,P2P |
ONVIF Protocol | Standard ONVIF2.4 |
Compatibility | Support HIKVISION,DAHUA,XM CMS,SEETONG UC2,Aebell NVR I8 ONVIF platform,NVR ONVIF protocol |
Mobile P2P | Support Android,IOS visit |
Network interface | 1ch 10/100BaseT Ethernet,RJ45 |
Optional function | TF Card Slot, Alarm, WIFI, 4G etc |
Power | 12VDC@0.20A |
Size | 180*65*62mm |
Working Temp | -30°C ~60°C~60°Ceg;C~60°C |
Working humidity | 0%-90% RH(NO CONDENSING) |
