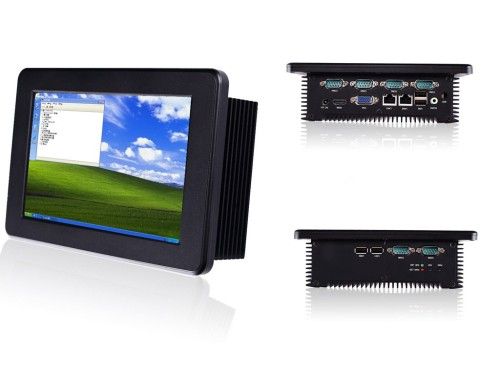

7′′ Embedded Industrial Touch Panel PC with Atom N2800 Dual Core 1.8GHz
7“嵌入式工业触摸屏PC采用Atom N2800双核1.8GHz
| 型号。 | IPPC-7100 |
| 屏幕尺寸 | 7''''ime;′′′ |
| 安装 | 壁挂式 |
| cpu类型 | 英特尔凌动N2800 1.8GHz |
| 电源类型 | DC12V |
| 硬盘机架类型 | SSD |
| 饰品 | CD Dirver，用户手册，安装夹等 |
| 规范 | CE / FCC / CCC /符合 |
| 类型 | IPC |
| 触摸屏 | 触摸屏 |
| 应用 | 医疗，商业，工业 |
| CPU卡大小 | 3.5“母板;母板 Mother Board |
| 案例类型 | 铝合金前面板，金属外壳 |
| 系统扩展槽 | 迷你电脑 |
| 商标 | pontron |
| 起源 | 中国 |
主要特点
7“工业面板PC与ATOM N2800双核1.8GHz。
ssd 16gb / 32gb（可选）
DDR3 2GB / 4GB内存（可选）
背面有更好的Al散热片设计
WiFi（可选）
触摸屏（可选）
介绍
IPPC-7100是具有7“高亮度LED，最新低功耗主板，16G SSD的工业平板电脑。它配有2 * LAN，4 * USB端口，6 * COM，1 * VGA，1 *音频，1 * HDMI.1 * HDMI。1*HDMI.
智能无风扇设计。具有安装方式：面板式，壁挂式，VESA标准等。产品结构紧凑坚固，振动和阻力更好。
IPPC-8100是一款性价比高的工业级面板PC，可广泛应用于电力，制造，金融，交通监控等通讯，控制终端。
7“工业面板PC与ATOM N2800双核1.8GHz。
ssd 16gb / 32gb（可选）
DDR3 2GB / 4GB内存（可选）
背面有更好的Al散热片设计
WiFi（可选）
触摸屏（可选）
介绍
IPPC-7100是具有7“高亮度LED，最新低功耗主板，16G SSD的工业平板电脑。它配有2 * LAN，4 * USB端口，6 * COM，1 * VGA，1 *音频，1 * HDMI.1 * HDMI。1*HDMI.
智能无风扇设计。具有安装方式：面板式，壁挂式，VESA标准等。产品结构紧凑坚固，振动和阻力更好。
IPPC-8100是一款性价比高的工业级面板PC，可广泛应用于电力，制造，金融，交通监控等通讯，控制终端。
| 中央处理器 | 板载Intel ATOM N2800双核1.8GHz | |
| 芯片组 | 英特尔NM10 | |
| 显示 | 7“高亮度LED屏幕 screen | |
| 解析度 | 1024 x 600，400cd / m2 | |
| 记忆 | ddriii 2gb，高达4gb | |
| HDD / SSD | SSD：16Gb / 32Gb（可选） | |
| 音频接口 | 线路输出 | |
| 网络接口 | 2 x 10/100 / 1000Mbps以太网控制器 | |
| I / O | 6 x rs232 | |
| 4 x usb2.0 | ||
| 1 x vga | ||
| 1 x hdmi | ||
| 2 x lan | ||
| 1 x线路输出 | ||
| 触摸屏 | 4线电阻式触摸（可选） | |
| 电源 | DC12V 5A电源适配器，AC100V〜265v 65HZ | |
| 冷却 | 底盘散热片散热片 | |
| 颜色 | 黑色/银色（可选） | |
| 无风扇 | 无风扇设计 | |
| 尺寸 | 200mm（L）×130mm（宽）×63mm（H） | |
| 包 | 295mm（L）×215mm（宽）×95mm（H） | |
| 安装 | 面板类型，壁挂式，桌面，支架等 | |
| 净重 | Abt 1.6Kg | |
| 总重量 | Abt 2.3Kg | |
| 工作温度 | -10℃〜60ºcc〜60℃rdm;CC~60ºC | |
| 湿度 | -20ºC〜80ºcc〜80℃rdm;CC~80ºC | |
| 订购信息 | IPPC-7100：7“工业平板电脑，带CPU：ATOM N2800双核1.8Ghz，内存为2G，w / SSD：16G，w / 12V电源适配器。dapter. | |
| IPPC-7100T：7“工业平板电脑，带CPU：ATOM N2800双核1.8Ghz，内存：2G，w / SSD：16G，w / 12V电源适配器，带触摸屏屏幕 screen | ||
| Model NO. | IPPC-7100 |
| Screen Size | 7′′′′ime;′′′ |
| Installation | Wall-Mounted |
| CPU Type | Intel Atom N2800 1.8GHz |
| Power Supply Type | DC12V |
| Hard Disk Rack Type | SSD |
| Accessories | CD Dirver, User Manual, Mounting Clips etc |
| Specification | CE/FCC/CCC/RoHS |
| Type | IPC |
| Touch Screen | Touch Screen |
| Application | Medical, Commercial, Industrial |
| CPU Card Size | 3.5′′ Mother Board; Mother Board Mother Board |
| Case Type | Al-Alloy Front Panel, Metal Case |
| System Expansion Slot | Mini Pcie |
| Trademark | PONTRON |
| Origin | China |
Main features
7'' industrial panel PC with ATOM N2800 Dual core 1.8GHz.
SSD 16GB/32GB(Optional)
DDR3 2GB/4GB memory (Optional)
With better design of Al cooling fin on back
WiFi (Optional)
Touch screen (Optional)
Introduction
IPPC-7100 is an industrial panel PC with 7″ high brightness LED, the latest low-power motherboard, 16G SSD. It comes with 2*LAN, 4* USB ports, 6*COM, 1*VGA, 1*audio, 1*HDMI.1*HDMI.1*HDMI.
Smart fanless-design. It has Installation methods: Panel type, wall-mounted, VESA standard etc. And The product structure is very compact and robust with better vibration and resistance.
IPPC-8100 is a cost-effective industrial grade panel PC, can be widely used in the communication, control terminal of the electric power, manufacturing, finance, traffic monitoring etc.
7'' industrial panel PC with ATOM N2800 Dual core 1.8GHz.
SSD 16GB/32GB(Optional)
DDR3 2GB/4GB memory (Optional)
With better design of Al cooling fin on back
WiFi (Optional)
Touch screen (Optional)
Introduction
IPPC-7100 is an industrial panel PC with 7″ high brightness LED, the latest low-power motherboard, 16G SSD. It comes with 2*LAN, 4* USB ports, 6*COM, 1*VGA, 1*audio, 1*HDMI.1*HDMI.1*HDMI.
Smart fanless-design. It has Installation methods: Panel type, wall-mounted, VESA standard etc. And The product structure is very compact and robust with better vibration and resistance.
IPPC-8100 is a cost-effective industrial grade panel PC, can be widely used in the communication, control terminal of the electric power, manufacturing, finance, traffic monitoring etc.
| CPU | Onboard Intel ATOM N2800 dual core 1.8GHz | |
| Chipset | Intel NM10 | |
| Display | 7″high-brightness LED screen screen screen | |
| Resolution | 1024 x 600, 400cd/m2 | |
| Memory | DDRIII 2GB, up to 4GB | |
| HDD/SSD | SSD: 16Gb/32Gb( Optional) | |
| Audio interface | Line Out | |
| Network interface | 2 x 10/100/1000Mbps Ethernet controller | |
| I/O | 6 x RS232 | |
| 4 x USB2.0 | ||
| 1 x VGA | ||
| 1 x HDMI | ||
| 2 x LAN | ||
| 1 x Line out | ||
| Touch screen | 4 wires Resistive touch (optional) | |
| Power Supply | DC12V 5A power adapter,AC100V~265v 65HZ | |
| Cooling | Al cooling fin on the back of Chassis | |
| Color | Black/Silver(Optional) | |
| Fanless | Fanless design | |
| Dimension | 200mm(L)x 130mm(W)x 63mm(H) | |
| Package | 295mm(L)x 215mm(W)x 95mm (H) | |
| Installation | Panel type, wall- mount, table, bracket etc | |
| Net weight | Abt 1.6Kg | |
| Gross Weight | Abt 2.3Kg | |
| Operating temp | -10ºC~60ºCC~60ºCrdm;CC~60ºC | |
| Humidity | -20ºC~80ºCC~80ºCrdm;CC~80ºC | |
| Ordering information | IPPC-7100: 7″Industrial Panel PC,w/CPU: ATOM N2800 dual core 1.8Ghz,w/RAM:2G,w/SSD:16G,w/12V power adapter.dapter.dapter. | |
| IPPC-7100T: 7″Industrial Panel PC,w/CPU:ATOM N2800 dual core 1.8Ghz,w/RAM:2G,w/SSD:16G,w/12Vpower adapter , w/Touch screen screen screen | ||
