12.1′′ Fanless Deisgn Industrial Touch Panel Pc′s with Atom N2701.6GHz (IPPC-1227)
12.1“无风扇工业触摸屏带Atom N2701.6GHz（IPPC-1227）
议价
加入意向| 型号。 | IPPC-1227 |
| 屏幕尺寸 | 12''''ime;′′′ |
| 安装 | 壁挂式 |
| cpu类型 | 英特尔凌动N270 1.6GHz |
| 电源类型 | ATX12V |
| 硬盘机架类型 | SSD / HDD |
| 饰品 | CD驱动程序，用户手册等 |
| 规范 | CE / FCC / CCC |
| 类型 | IPC |
| 触摸屏 | 触摸屏 |
| 应用 | 医疗，商业，工业 |
| CPU卡大小 | 迷你Itx母板 |
| 案例类型 | 金属外壳 |
| 系统扩展槽 | PCIE |
| 商标 | pontron |
| 起源 | 中国 |
IPPC-1227是具有12.1高亮度液晶显示器的工业平板电脑，最新的低功耗主板，16G SSD。配有2 * LAN，4 * USB端口，2〜3 * COM，1 * VGA，1 *音频，1 * PS / 2 KB /鼠标等。
智能无风扇设计。具有安装方式：面板式，壁挂式，VESA标准等。产品结构紧凑坚固，振动和阻力更好。
IPPC-1227是一款具有成本效益的工业级面板PC，可广泛应用于电力，制造，金融，交通监控等通讯，控制终端。
IP速率：防水IP65前面板（可选）。
智能无风扇设计。具有安装方式：面板式，壁挂式，VESA标准等。产品结构紧凑坚固，振动和阻力更好。
IPPC-1227是一款具有成本效益的工业级面板PC，可广泛应用于电力，制造，金融，交通监控等通讯，控制终端。
IP速率：防水IP65前面板（可选）。
| 中央处理器 | 板载Atom N270 1.6Ghz。（D2550 / D525可选） | |
| 芯片组 | 945gsed i＆ich7p; ich7;ICH7 | |
| 显示 | 12“高亮度液晶屏幕 screen | |
| 解析度 | 800×600es; 600es; 600 | |
| 记忆 | ddrii 1gb，高达2gb | |
| HDD / SSD | 硬盘：500GB; ssd：16gb / 32gb（可选） | |
| 音频接口 | spk-out / mic-in / line in | |
| 兰 | 1x 100 / 1000Mbps以太网控制器 | |
| I / O | 2×RS232（1支持485/422）85/422）85/422) | |
| 4×USB2.0; USB2.0;USB2.0 | ||
| 1×vgames; VGAmes;VGA | ||
| 2xlan | ||
| 1 *音频 | ||
| 1 * LPT | ||
| 1×PS / 2鼠标/键盘板eyboard | ||
| 触摸屏 | 4线电阻（可选） | |
| 电源 | DC8-28V 5A电源适配器，AC100V〜265v 65HZ | |
| 冷却 | 一个40×20的入口风扇，机箱底部有足够的散热通风口chassis | |
| 无风扇 | 无风扇设计 | |
| 尺寸 | 320mm（L）×276mm（W）×64mm（H）倍; 64mm（H）times;64mm(H) | |
| 总重量 | Abt 6Kg | |
| 工作温度 | -10℃〜50ºcc℃〜50℃rdm;CC~50ºC | |
| 湿度 | -20ºC〜60ºcc〜60℃rdm;CC~60ºC | |
| Model NO. | IPPC-1227 |
| Screen Size | 12′′′′ime;′′′ |
| Installation | Wall-Mounted |
| CPU Type | Intel Atom N270 1.6GHz |
| Power Supply Type | ATX12V |
| Hard Disk Rack Type | SSD/HDD |
| Accessories | CD Driver, User Manual etc |
| Specification | CE/FCC/CCC |
| Type | IPC |
| Touch Screen | Touch Screen |
| Application | Medical, Commercial, Industrial |
| CPU Card Size | Mini Itx Mother Board |
| Case Type | Metal Case |
| System Expansion Slot | Pcie |
| Trademark | PONTRON |
| Origin | China |

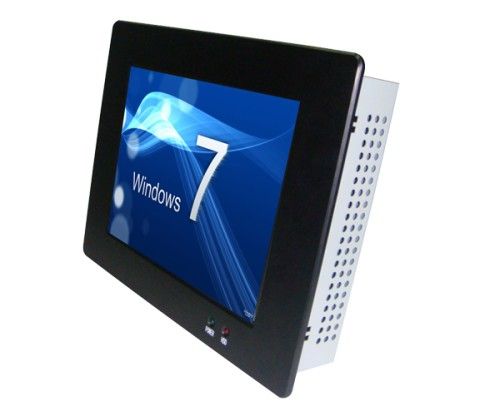

IPPC-1227 is an industrial panel PC with 12.1 high brightness LCD, the latest low-power motherboard, 16G SSD. It comes with 2*LAN, 4* USB ports, 2~3*COM, 1*VGA, 1*audio, 1*PS/2 KB /mouse etc.
Smart fanless-design. It has Installation methods: Panel type, wall-mounted, VESA standard etc. And The product structure is very compact and robust with better vibration and resistance.
IPPC-1227 is a cost-effective industrial grade panel PC, can be widely used in the communication, control terminal of the electric power, manufacturing, finance, traffic monitoring etc.
IP rate: Water proof IP65 front panel (Optional).
Smart fanless-design. It has Installation methods: Panel type, wall-mounted, VESA standard etc. And The product structure is very compact and robust with better vibration and resistance.
IPPC-1227 is a cost-effective industrial grade panel PC, can be widely used in the communication, control terminal of the electric power, manufacturing, finance, traffic monitoring etc.
IP rate: Water proof IP65 front panel (Optional).
| CPU | Onboard Atom N270 1.6Ghz.( D2550/D525 Optional) | |
| Chipset | 945GSED I&ICH7p;ICH7;ICH7 | |
| Display | 12″high-brightness LCD screen screen screen | |
| Resolution | 800 × 600es; 600es; 600 | |
| Memory | DDRII 1GB, up to 2GB | |
| HDD/SSD | HDD:500GB; SSD: 16Gb/32Gb( Optional) | |
| Audio interface | SPK-Out/MIC-In/Line In | |
| LAN | 1x 100/1000Mbps Ethernet controller | |
| I/O | 2×RS232 (1 supports 485/422)85/422)85/422) | |
| 4×USB2.0;USB2.0;USB2.0 | ||
| 1×VGAmes;VGAmes;VGA | ||
| 2xLAN | ||
| 1*Audio | ||
| 1*LPT | ||
| 1×PS/2 Mouse/ Keyboardeyboardeyboard | ||
| Touch screen | 4-wire resistive (optional) | |
| Power Supply | DC8-28V 5A power adapter,AC100V~265v 65HZ | |
| Cooling | a 40×20 inlet fan in the chassis,there is sufficient cooling ventilation openings at the bottom of the chassischassischassis | |
| Fanless | Fanless design | |
| Dimension | 320mm(L)×276 mm(W)×64mm(H)times;64mm(H)times;64mm(H) | |
| Gross Weight | Abt 6Kg | |
| Operating temp | -10ºC~50ºCC~50ºCrdm;CC~50ºC | |
| Humidity | -20ºC~60ºCC~60ºCrdm;CC~60ºC | |
