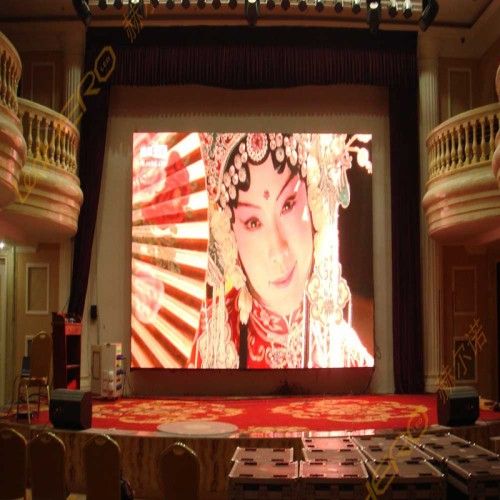

Stage Performance LED Video Wall for Sale

Stage Performance LED Video Wall for Sale

舞台表演LED视频墙出售

500 USD

加入意向
型号。 p10
显示功能 视频显示
像素配置 1R,1G,1B
扫描模式 1/4扫描
显示类型 LED视频显示
IP等级 IP43
保证 2年
商标 英雄
起源 中国广东省深圳市
管芯颜色 饱满的色彩
像素间距 10毫米
像素密度 15625dots /平方米
系统操作平台 WIN2000
应用 广告
证明 ce,rohs,ccc,emc
寿命 100,000小时
规范 ce,rohs,emc,ccc,iso9001

舞台表演导致视频墙出售
规范

驾驶方法

1/4扫描,恒定电流

机柜重量

42公斤/平方米。

机械等级

悬挂重量支持

2T

表面平整度

间隙<0.5mm.5mm

光学等级

亮度

> 1,800cd / m2 / m2

视角

150°/ 150°/ 150°deg;/150°

灰度

8位输入,14位校正

显示颜色

16.7M

亮度调整

0~100%

电源

操作电源

90〜260v 50〜60hz

最大。能量消耗

600W / m2

平均功耗

200W / m2

控制系统

控制模式

DVI同步显示控制PC

帧更新频率

60〜85Hz的

屏幕刷新频率

300〜1000Hz的

伽玛校正

-5.0~+5.0

支持输入

复合,S视频,组件,VGA,DVI,HDMI,HD_SDI

控制距离

以太网电缆<120m or Fiber Optic<10Kmlt;10Km

支持VGA模式

1024×768,1280×1024,1600×1200,1920×1280mes; 1200,1920×1280s;1280mes;1200, 1920×1280

亮度校正

像素,模块,机柜

环境的

工作温度

-20°〜+ 60°〜+ 60°deg;~+60°

工作湿度

10〜95%rh

使用寿命

100000小时

MTBF

5000小时

防护等级

~

失控率

<0.02%

包装运输
环保纸箱,胶合板箱,飞行箱使用专业包装。
包装方式可以防止LED屏幕在运输过程中的碰撞,如损坏等。
无故解决您在运输中的烦恼。
关于英雄
7年的LED屏幕行业经验,我厂具有加工,研发LED显示屏的能力,保证产品的多样性,严格的质量控制流程,确保显示屏的质量。
保证
1.如果面积较大,我们通常要求客户或经销商派人到工厂学习,每周训练一次,主要学习屏幕操作,维护。公司培训和提供住宿是免费的。
2.如果面积超过20平方米的室外全彩,必须有所有配件。
2.在2小时内响应,24小时内非人为故障,一般故障解决,48小时内可以接受故障解决。
官方网站:http://www.led-hero.com
Model NO. p10
Display Function Video Display
Pixel Configuration 1R,1G,1B
Scanning Mode 1/4 Scan
Display Type LED Video Display
IP Rating IP43
Warranty 2 Years
Trademark HERO
Origin Shenzhen City, Guangdon Province, China
Tube Chip Color Full Color
Pixel Pitch 10mm
Pixel Density 15625dots/Sq.M
System Operating Platform WIN2000
Application Advertising
Certification CE, RoHS, CCC, EMC
Lifespan 100, 000 Hours
Specification CE, ROHS, EMC, CCC, ISO9001

stage performance led video wall for sale
specification

Driving Method

1/4 Scan, Constant Current

Cabinet Weight

42kg/sq.m.

Mechanical Ratings

Hanging Weight Support

2T

Surface Flatness

Gap<0.5mm.5mm

Optical Ratings

Brightness

﹥1,800cd/ m2/ m2

View Angle

150°/150°/150°deg;/150°

Gray Scale

8bits input, correction with 14bits

Display COLOR

16.7M

Brightness Adjustment

0~100%

Power Supply

Operation Power

90~260V 50~60Hz

Max. Power Consumption

600W/ m2

Average Power Consumption

200W/ m2

Control System

Control Mode

Synchronous display with control PC by DVI

Frame Update Frequency

60~85Hz

Screen Refresh Frequency

300~1000Hz

Gamma Correction

-5.0~+5.0

Support Input

Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI

Control Distance

Ethernet cable<120m or Fiber Optic<10Kmlt;10Km

Support VGA Mode

1024×768, 1280×1024, 1600×1200, 1920×1280mes;1200, 1920×1280s;1280mes;1200, 1920×1280

Brightness Correction

Pixel, Module, Cabinet

Environmental

Operating Temperature

-20°~+60°~+60°deg;~+60°

Operating Humidity

10~95% RH

Operating Life

100,000hours

MTBF

5000hours

Protection Level

~

Out of Control Rate

<0.02%

Packing and transportation
Environmental carton, plywood case, flight case USE professional packaging.
The way of Packing can prevent the collision of LED screen effectively in the process of transportation, such as falling damage,etc.
Faultlessly solve your worries in the transportation.
About Hero
7-year's experience in LED screen industry, our factory has the ability of processing, researching and developing Led display to guarantee the prolificacy, a strict quality control process to make sure the quality of display screens.
Warranty
1. If the area is larger, we usually require customers or dealers to send someone to come to factory to study, training time a week, the main study screen operation, maintenance. Company training and providing accommodation are free of charge.
2. If the area is in more than 20 square meters of outdoor full color, it must have all accessories.
3. Response within 2 hours, non-artificial, general fault solution within 24 hours, and acceptable failure resolved within 48 hours.
Official website: http://www.led-hero.com
